Airbag System (Diagnostics)

Airbag Control Module I/O Signal

ELECTRICAL SPECIFICATION

OUTBACK model

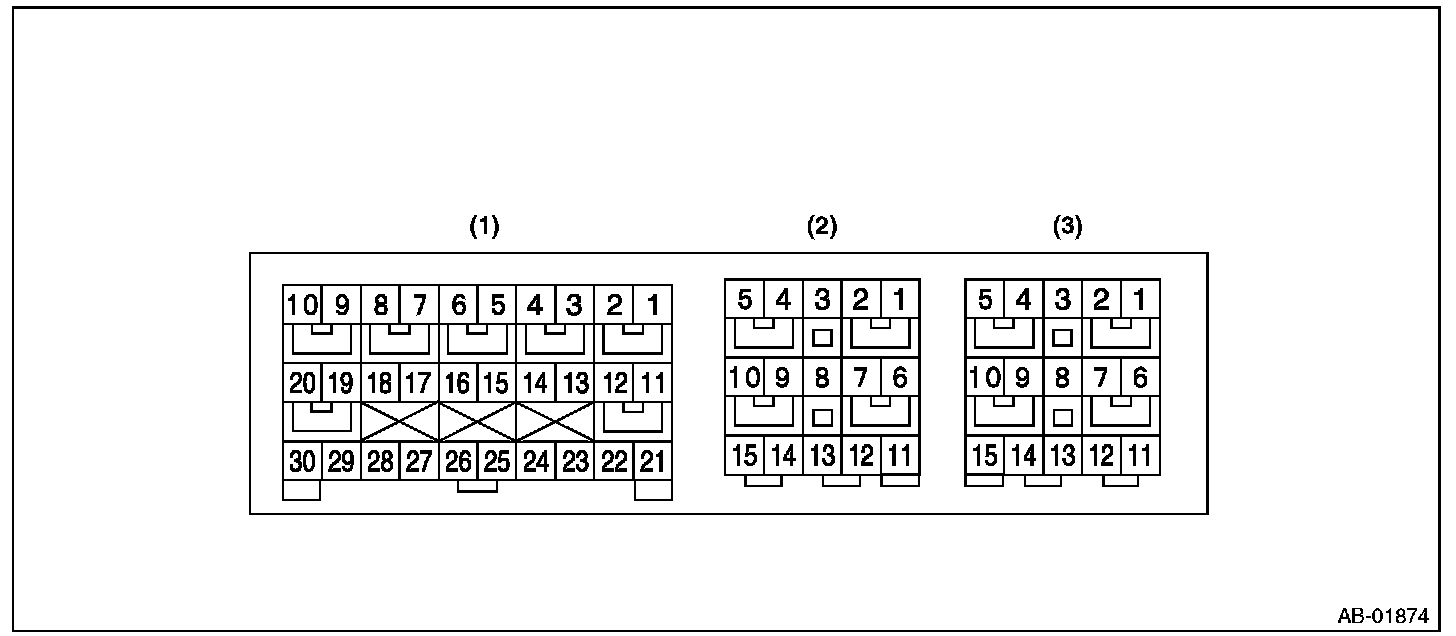

Airbag Control Module I/O Signal (Part 1):

- Terminal numbers in airbag control module connector are shown in the figure.
- Airbag warning light illuminates when the connector is removed from airbag control module.

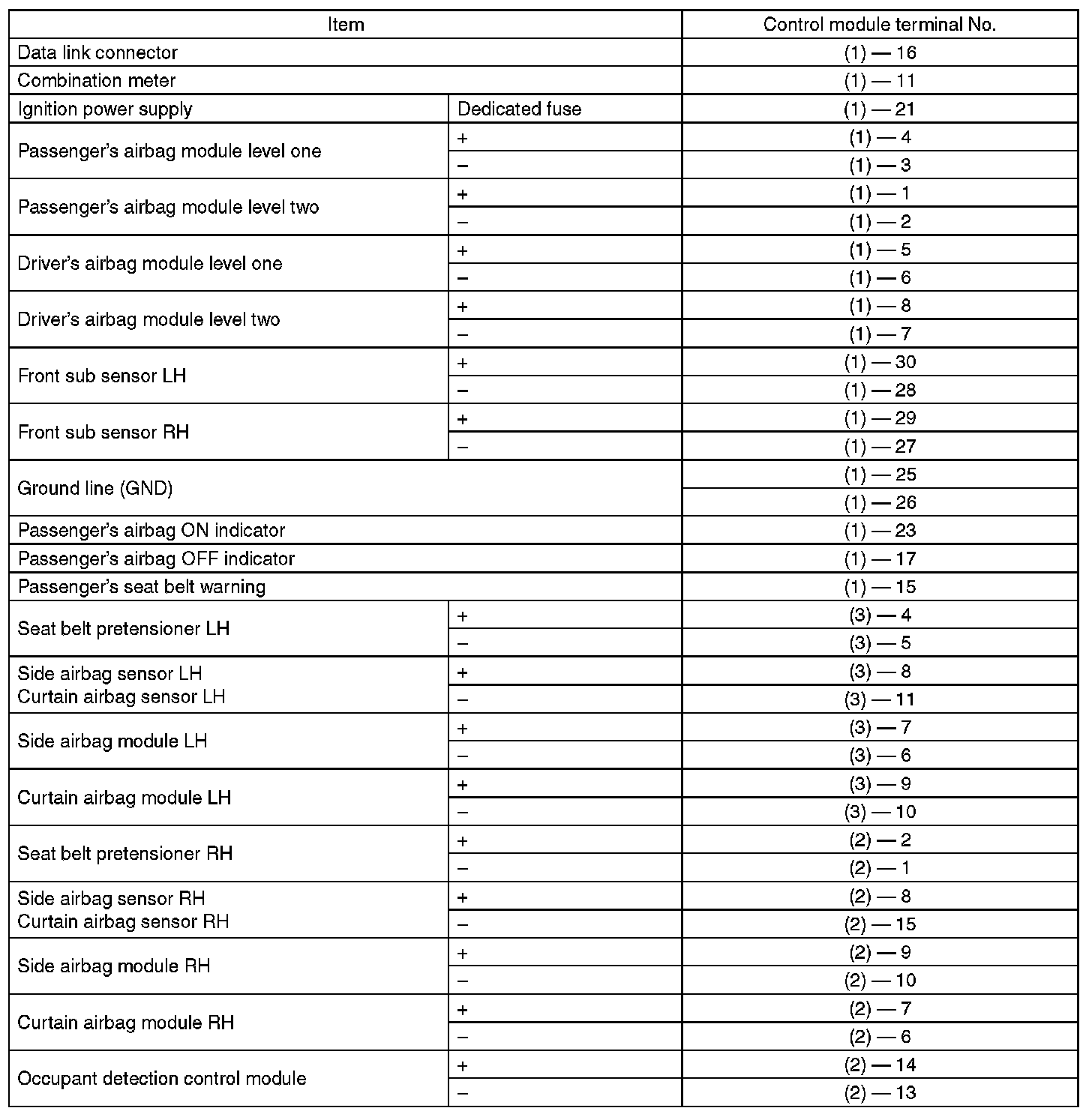

Airbag Control Module I/O Signal (Part 2):

Sedan model

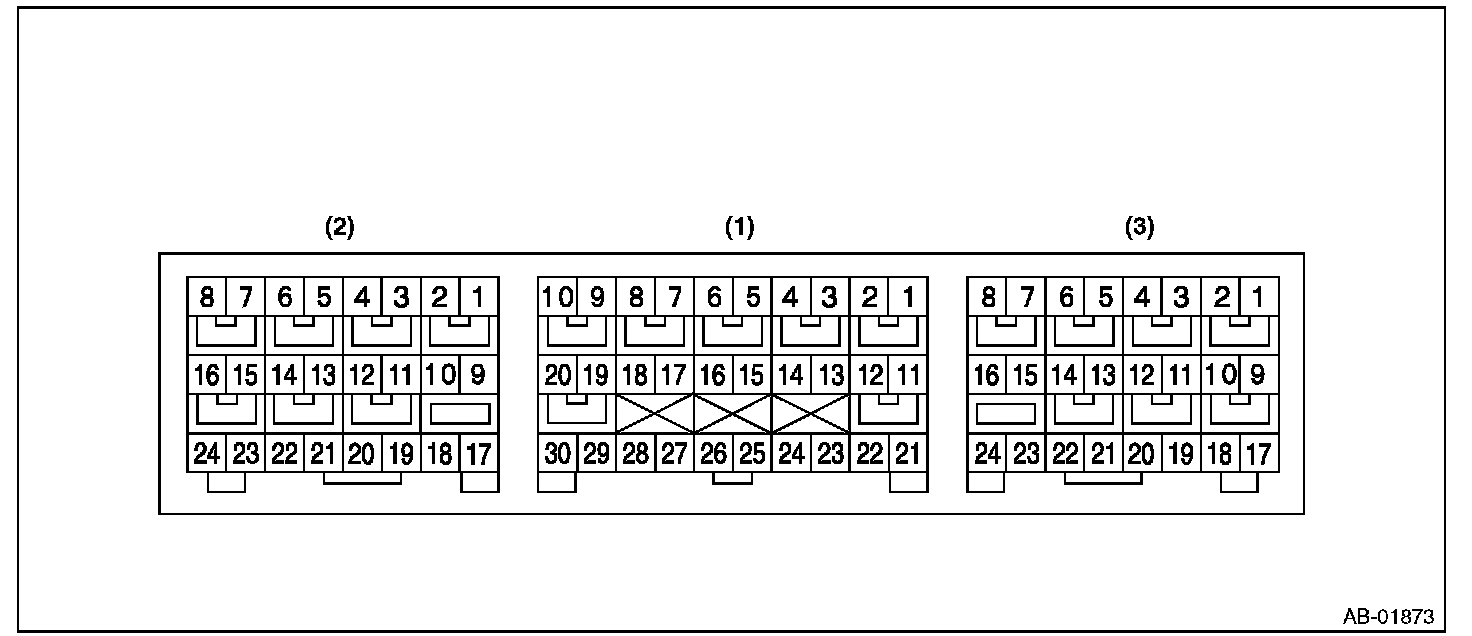

Airbag Control Module I/O Signal (Part 3):

- Terminal numbers in airbag control module connector are shown in the figure.
- Airbag warning light illuminates when the connector is removed from airbag control module.

Airbag Control Module I/O Signal (Part 4):

WIRING DIAGRAM

Refer to the WI section wiring diagram. Airbag System
