General Description

General Description

COMPONENT

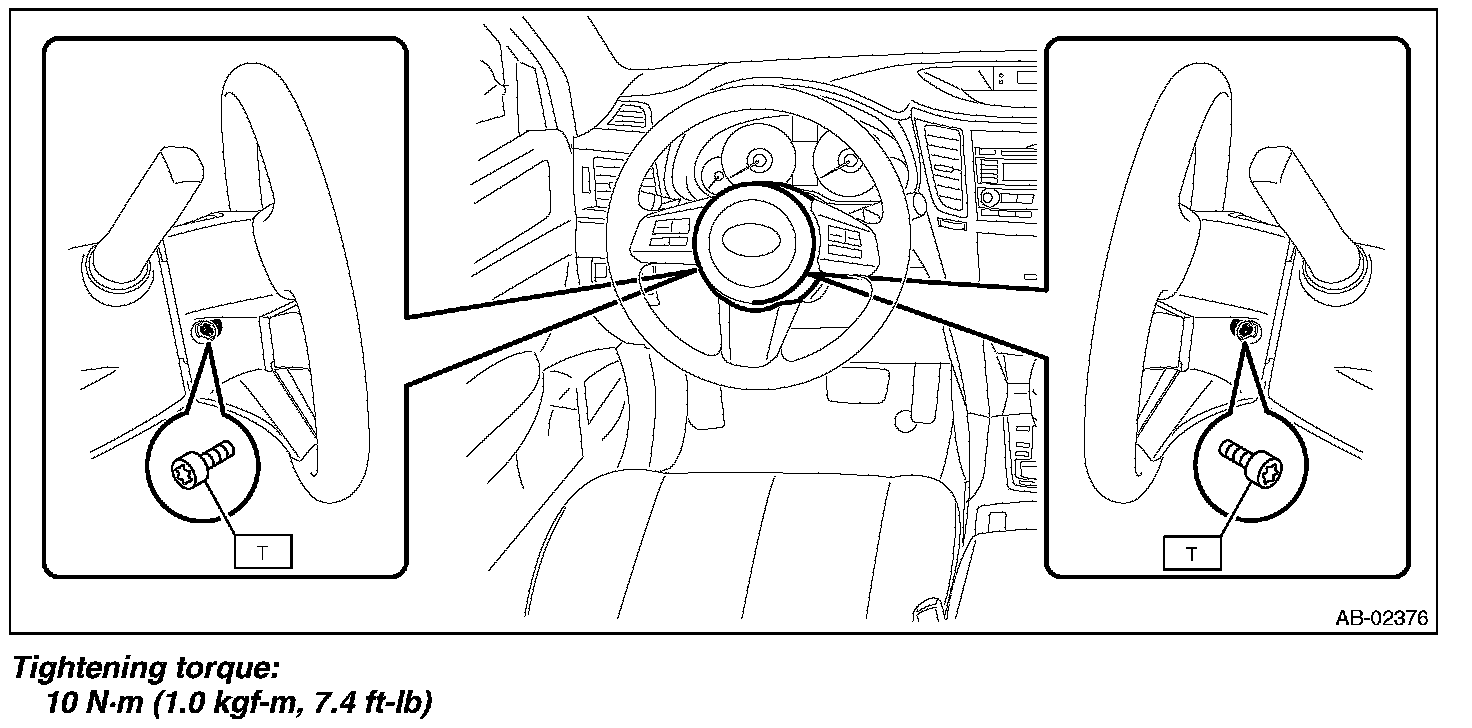

1. DRIVER'S AIRBAG MODULE

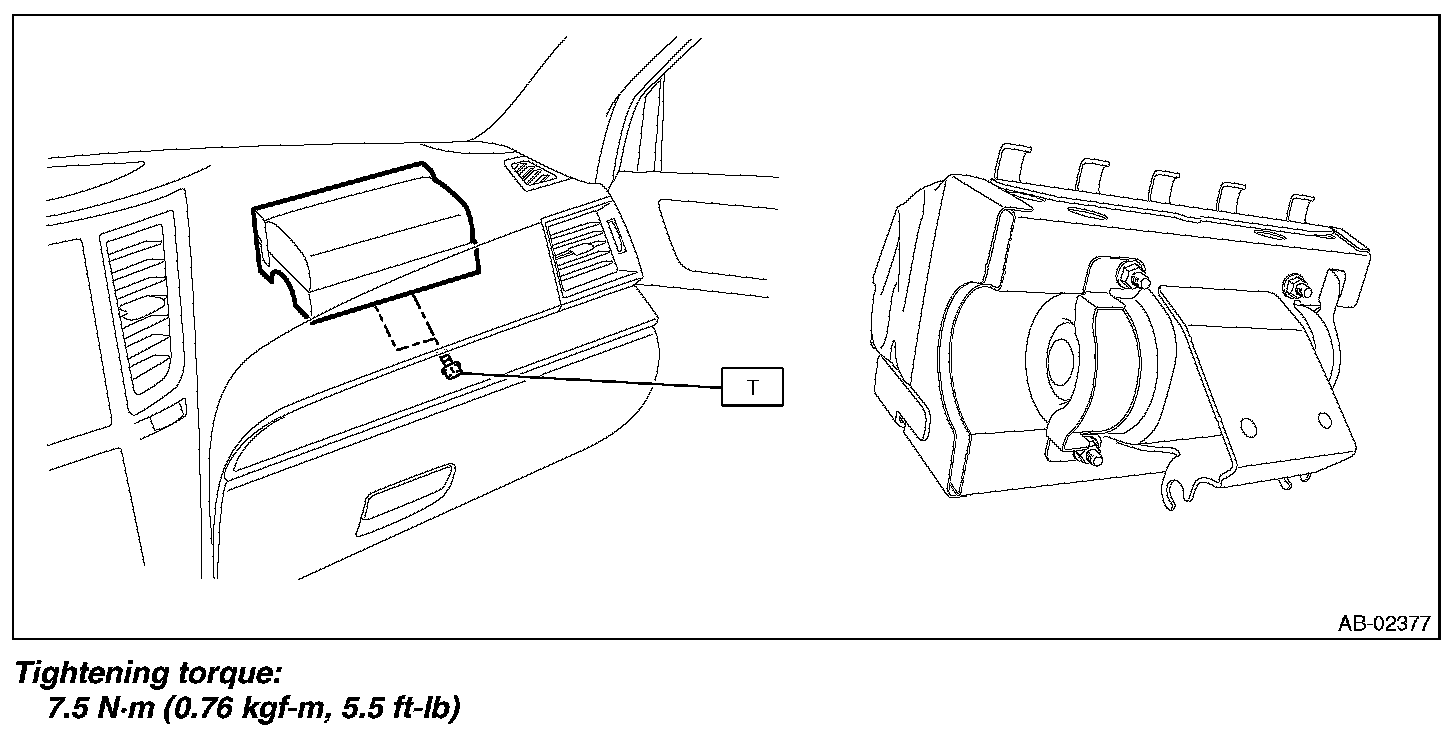

2. PASSENGER'S AIRBAG MODULE

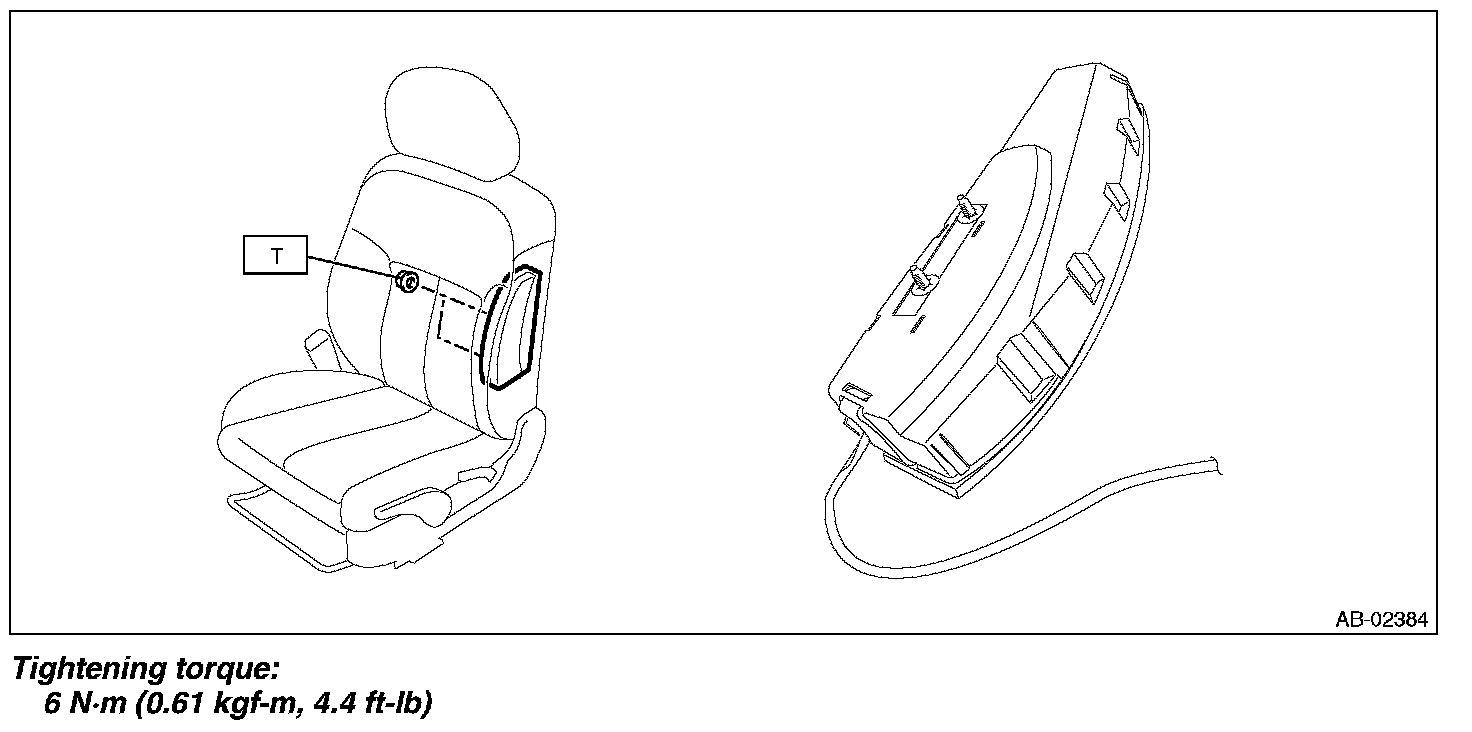

3. SIDE AIRBAG MODULE






4. CURTAIN AIRBAG MODULE

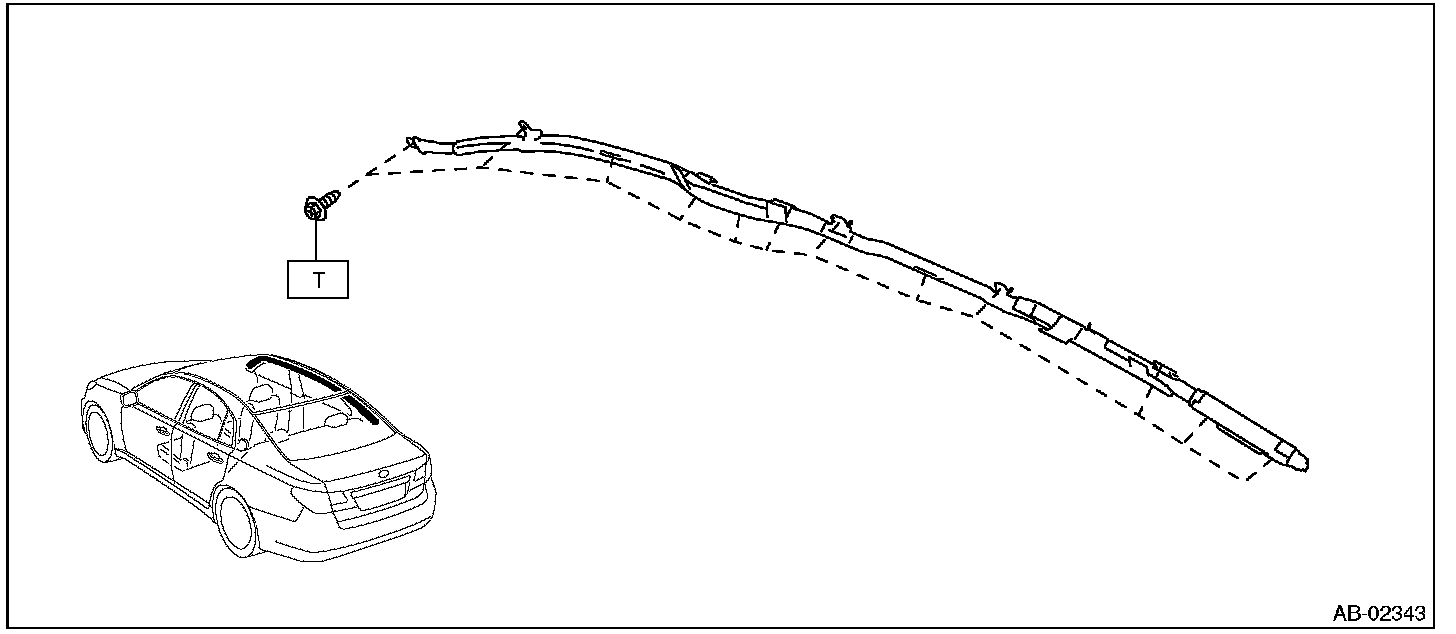

- Sedan model

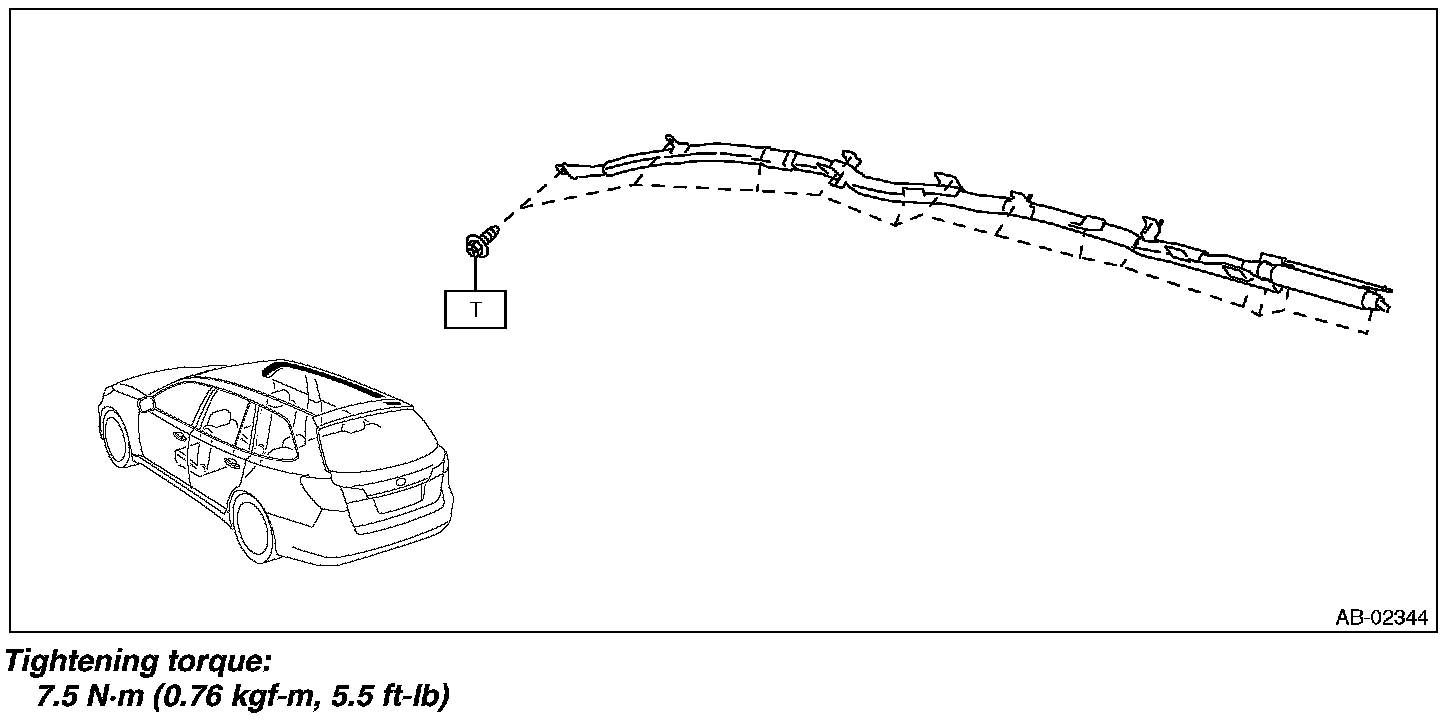

- OUTBACK model

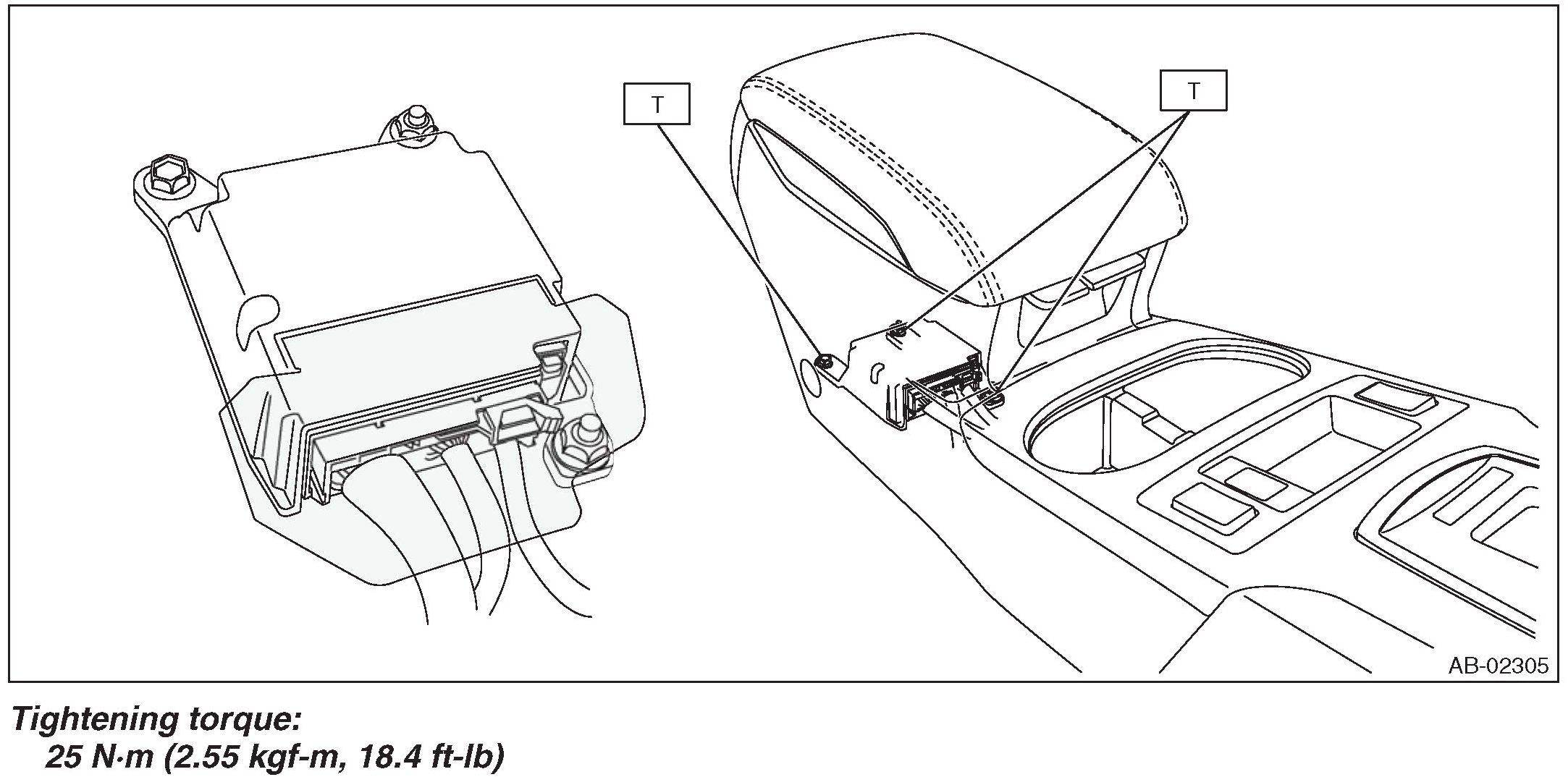

5. AIRBAG CONTROL MODULE

CAUTION: Do not reuse mounting bolts and nuts.
