Campaign - ABS Electronic Control Unit Cover
NUMBER: WVP-26DATE: June 2010
Revised 08-19-10
APPLICABILITY:
2010MY Subaru Legacy & Outback
SUBJECT:
ABS Electronic Control Unit Cover
INTRODUCTION
Subaru of America, Inc., has determined that certain 2010 Legacy and Outback models may have been produced with a plastic cover on the ABS (anti-lock brake system) electronic control unit that may have been cracked during the manufacturing process. The ABS electronic control unit is an integrated part of the brake hydraulic unit located in the engine compartment. If the cover is cracked and the electronic control unit is exposed to water, particularly from a high pressure source such as a garden hose or pressure washer, water can enter the unit and potentially cause a short circuit. If this were to happen, the unit will go into "failsafe" mode and the "S" warning light on the instrument panel will illuminate alerting the driver of a malfunction. When the warning light is on, the ABS function shuts down; however, the conventional brake system will continue to operate normally. In other words, even if the vehicle experiences this condition, the braking system will continue to function.
This Service Program will involve inspecting the ABS electronic control unit plastic cover for cracks.
^ If no cracks are found, no further action is required. Since the cracking condition was the result of the manufacturing process, the cover is not susceptible to cracking in the future.
^ If cracks are found, the ABS hydraulic unit must be replaced.
AFFECTED VEHICLES
^ 2010 Subaru Legacy and Outback

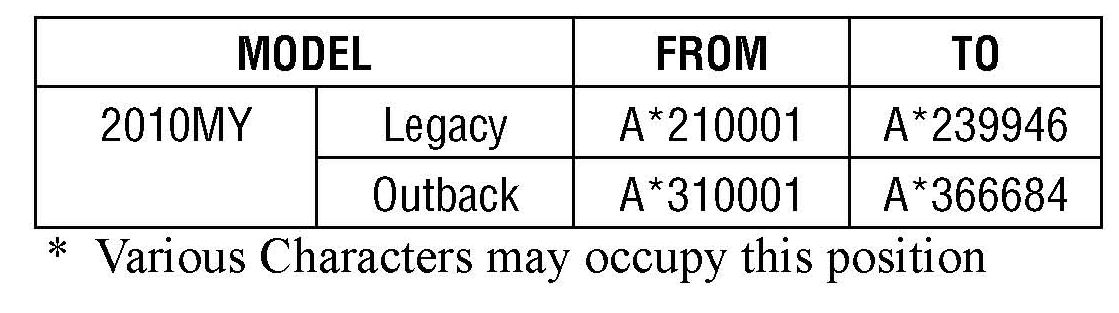

^ Potentially affected vehicles are identified in the VIN range chart below. Prior to performing repairs, confirm coverage for potentially affected vehicles by using the Vehicle Coverage Inquiry function.
OWNER NOTIFICATION
SOA mailed Owner Notification Letters to owners of affected vehicles during the week of June 7, 2010.
A copy of the Owner Notification Letter is included at the end of this bulletin.
DEALER PROGRAM RESPONSIBILITY
Dealers are to promptly perform the applicable service procedures defined in this bulletin to correct all affected vehicles in their inventory (new, used, demo). Additionally, whenever a vehicle subject to this Service Program is taken into dealer new or used inventory, or is in the dealership for service, necessary steps should be taken to ensure the Service Program correction has been made before selling or releasing the vehicle.
New or used vehicles listed in a Service Program that are in dealer stock must be:
^ Immediately identified.
^ Tagged or otherwise marked to prevent their delivery or use prior to repair.
^ Repaired in accordance with the repair procedures outlined in this Service Program Bulletin.
PARTS INFORMATION
Replacement ABS hydraulic units are available for dealer order. Please do not stock order this part. Dealers should only order this part for vehicles that have been inspected and found to have a cracked cover.
SERVICE PROCEDURE
This service program will involve inspecting the ABS electronic control unit plastic cover for cracks.
^ If no cracks are found~ no further action is required. Since the cracking condition was the result of the manufacturing process, the cover is not susceptible to cracking in the future.
^ If cracks are found, the ABS hydraulic unit must be replaced.
Please proceed as follows:
Tools
^ Mirror with a long grip
^ Flashlight
Inspection Procedures
1) Open the hood.

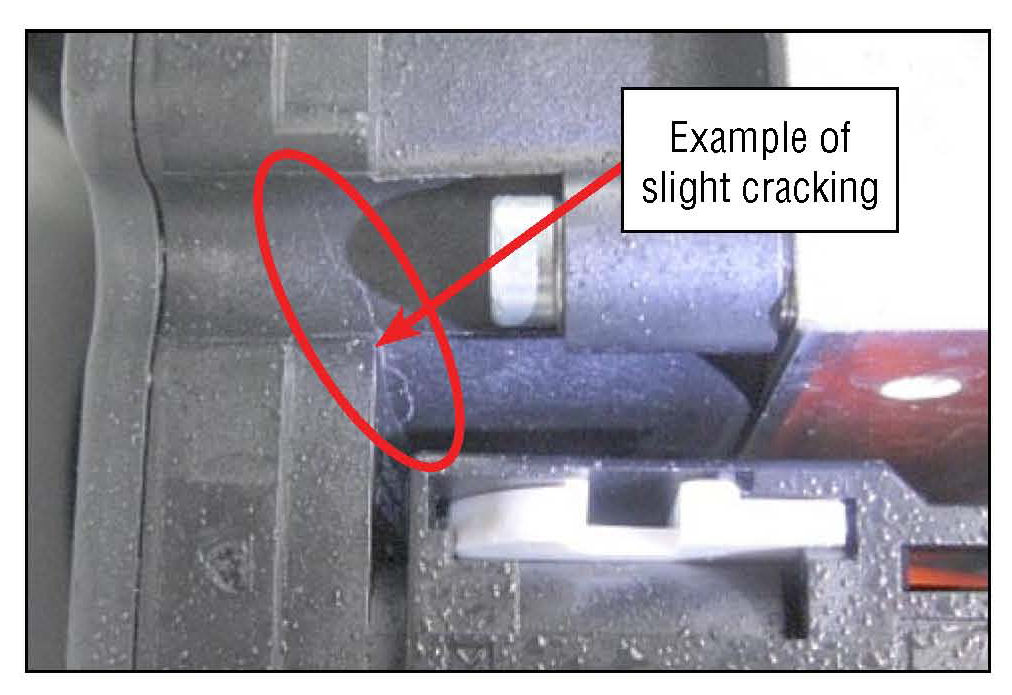

2) Inspect the Hydraulic Unit Electronic Module cover carefully, at the areas indicated by the arrows in the following photos.
a) Check for cracks on the upper side of the unit.
*Note:
Inspect for cracks carefully, since they may be very slight.

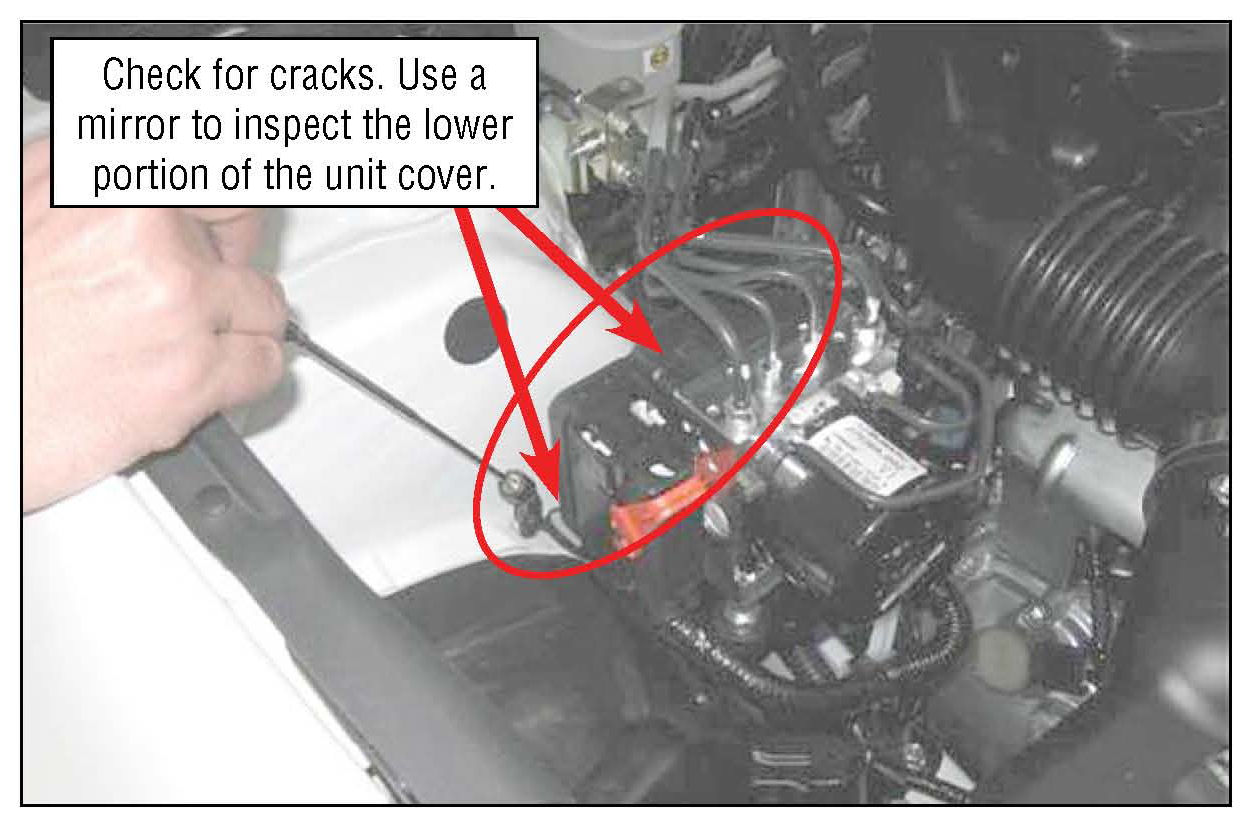

b) Also, inspect the lower section of the hydraulic unit with a mirror, as shown.
If cracking is found:
The ABS Hydraulic Unit requires replacement. Follow the repair instructions found in the applicable Subaru Service Manual.
SERVICE PROGRAM IDENTIFICATION LABEL
Type or print the necessary information on a Service Program identification label. The completed label should be attached to the vehicle's upper radiator support.
Additional labels are available through the Subaru Claims Helpline.

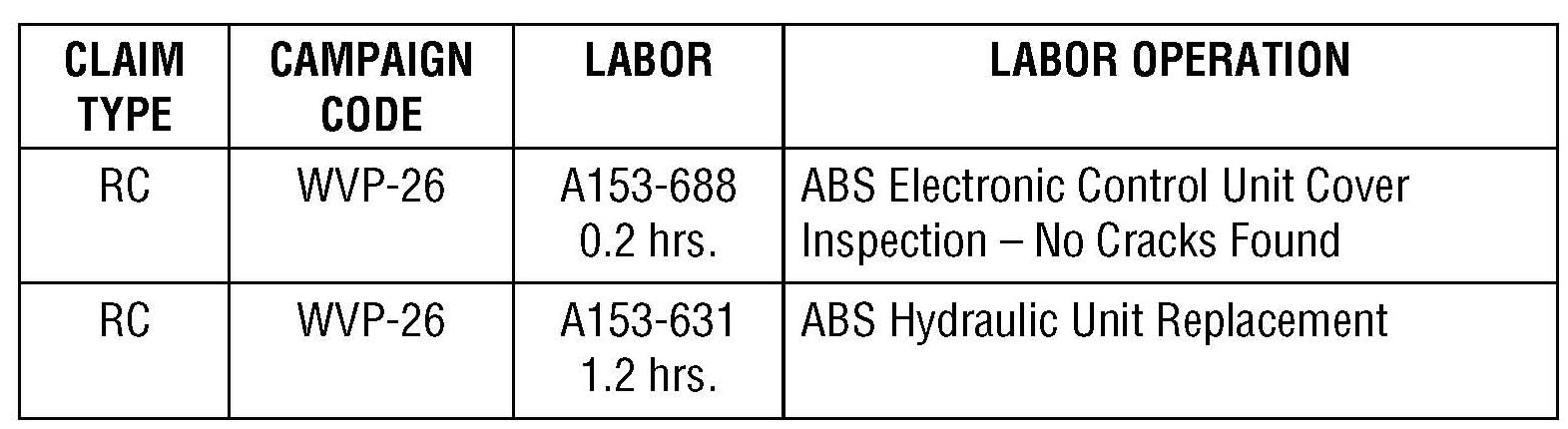

CLAIM REIMBURSEMENT AND ENTRY PROCEDURES
Credit to perform this service program will be based on the submission of properly completed repair order information. Dealers may submit claims through Vehicle Claim Entry on the website.
