Fuel Temperature Sensor: Testing and Inspection

Fuel Temperature Sensor

INSPECTION

1. Check the fuel temperature sensor for deformation, cracks or other damages.

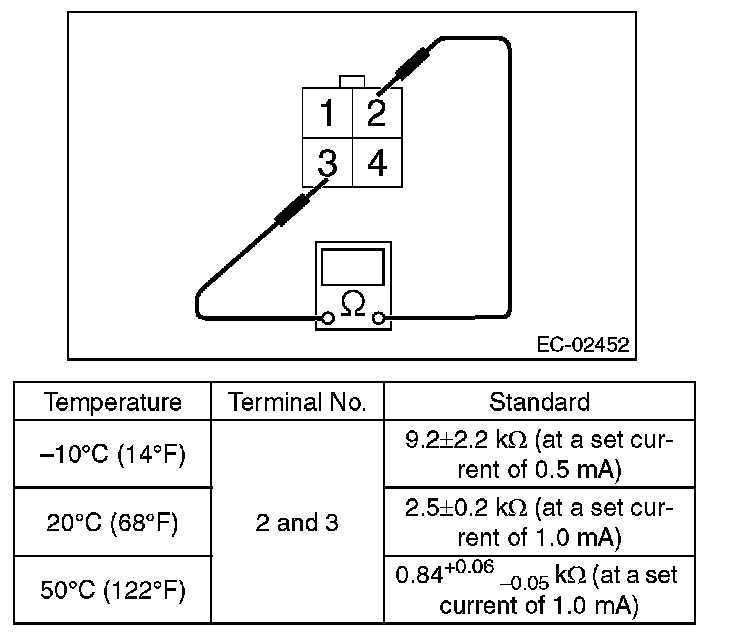

2. Measure the resistance between fuel temperature sensor terminals.

CAUTION: Make sure of the circuit tester spec and do not apply a voltage of 3 V or more when measuring the resistance. Otherwise the fuel temperature sensor will be damaged.
