Installation

TRANSMITTER (TIRE INFLATION PRESSURE SENSOR)

INSTALLATION

CAUTION:
When installing, use new transmitter assembly or the transmitter equipped with new valve and screw.

1) When reusing the transmitter, replace the valve and screw with new parts and install.

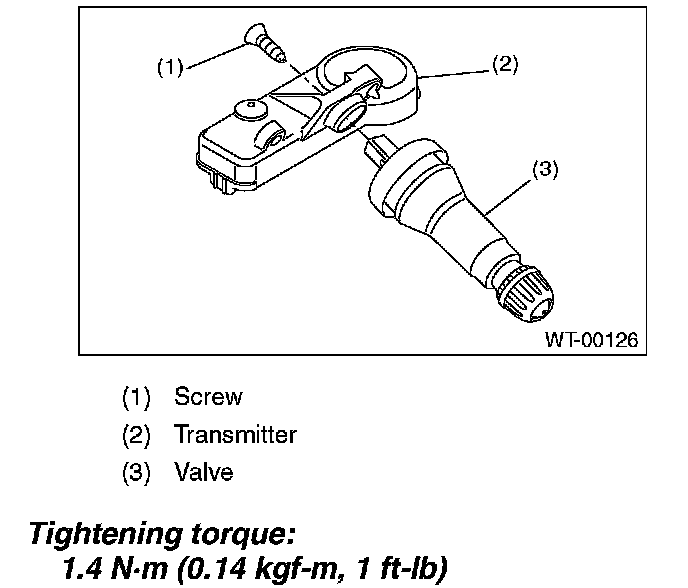

2) Align the transmitter with the valve hole, and install.

NOTE:
When using the jig which is used by hitching the root of the valve cap and pulling it out, use different short cap.

3) Install the tire to the wheel.

CAUTION:
^ When installing the tire to the wheel, use the tire changer.

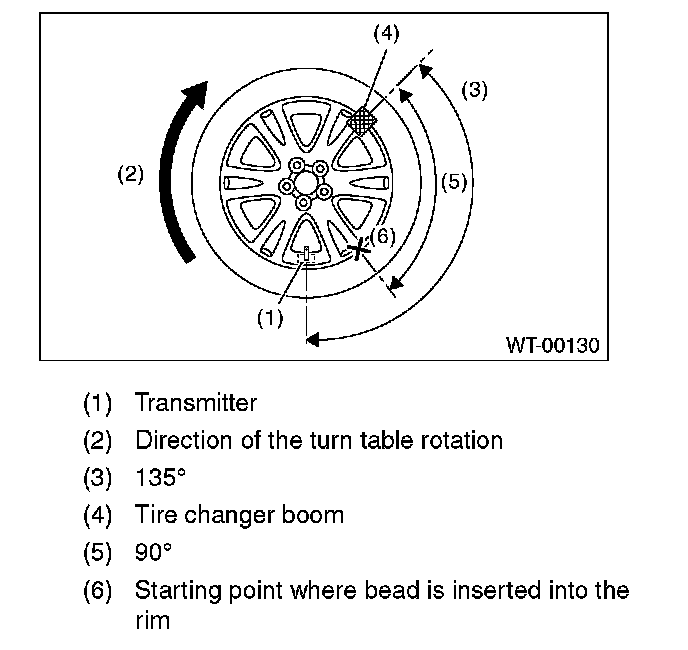

^ Set the tire changer boom to the position shown in the figure so as not to damage the transmitter.





4) Install the wheels to the vehicle.
5) Register the transmitter ID to the tire inflation pressure monitor control module.
