Interior Light System
Interior Light SystemINSPECTION

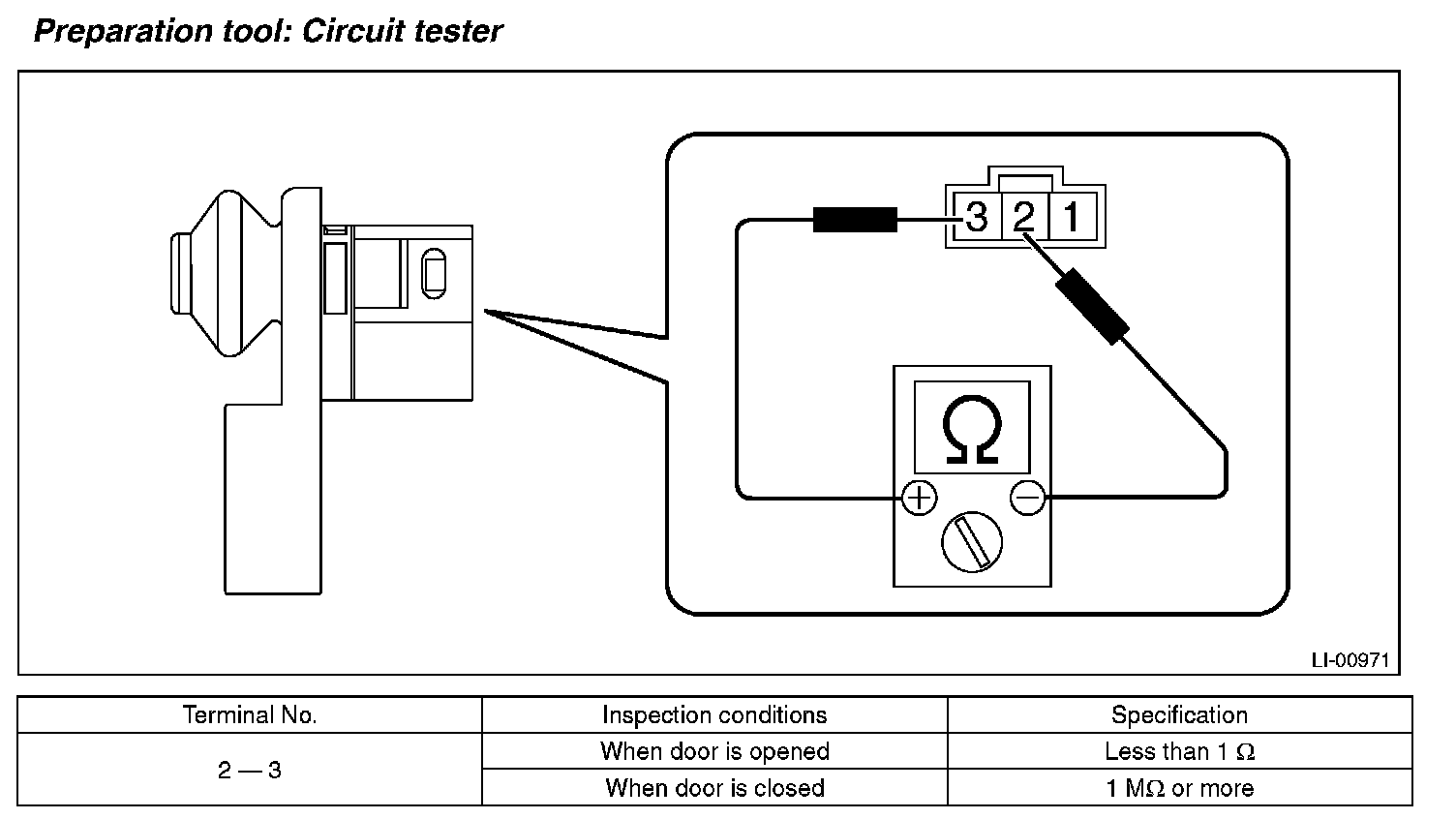

1. CHECK DOOR SWITCH.
1. Remove the door switch.
2. Measure the resistance between door switch terminals.
3. Replace the door switch if the inspection result is not within the standard value.

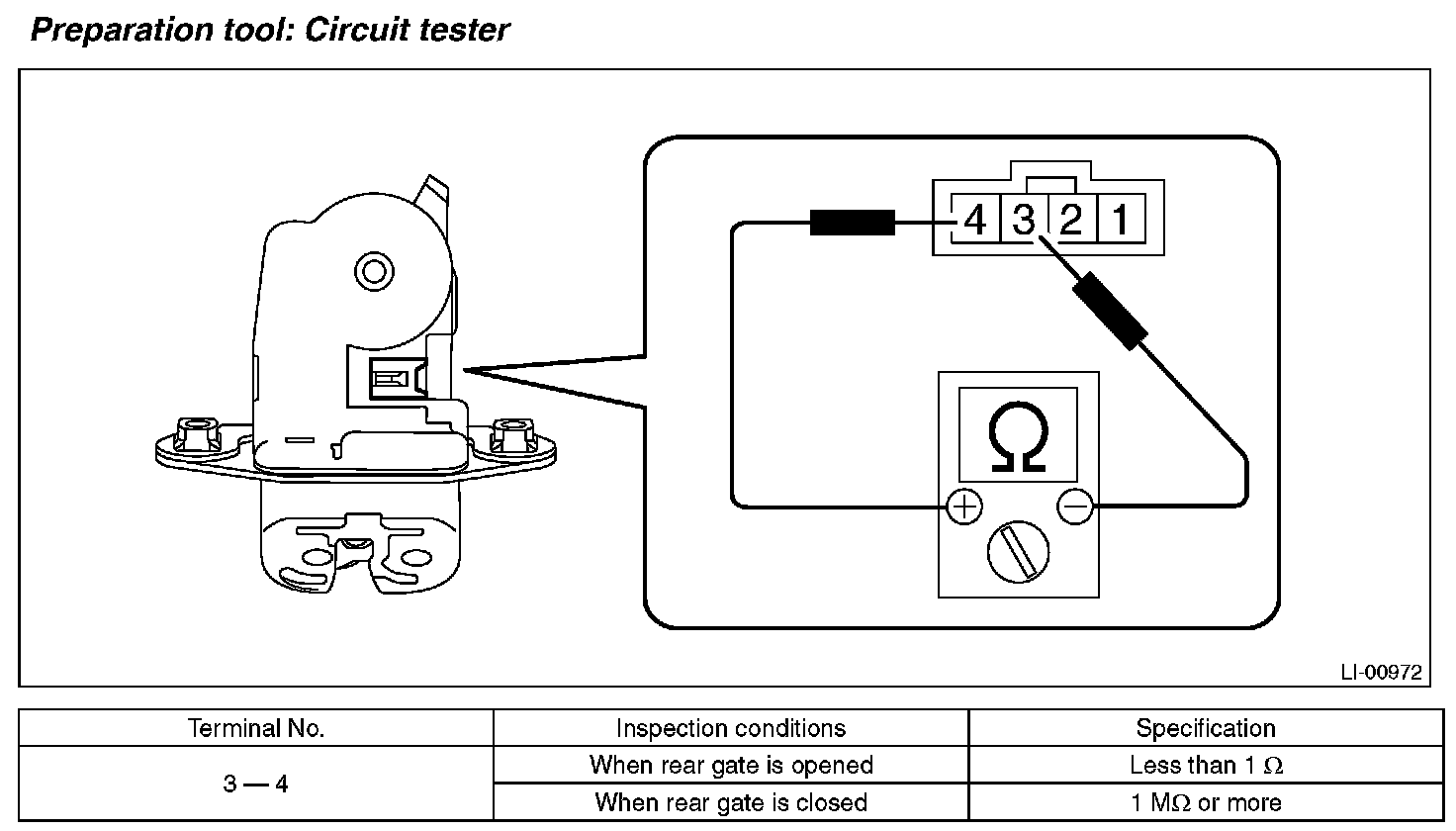

2. CHECK REAR GATE LATCH SWITCH
1. Disconnect the rear gate latch switch connector.
2. Measure the resistance between rear gate latch switch terminals.
3. If the inspection result is not within the standard value, replace the rear gate latch and actuator assembly.

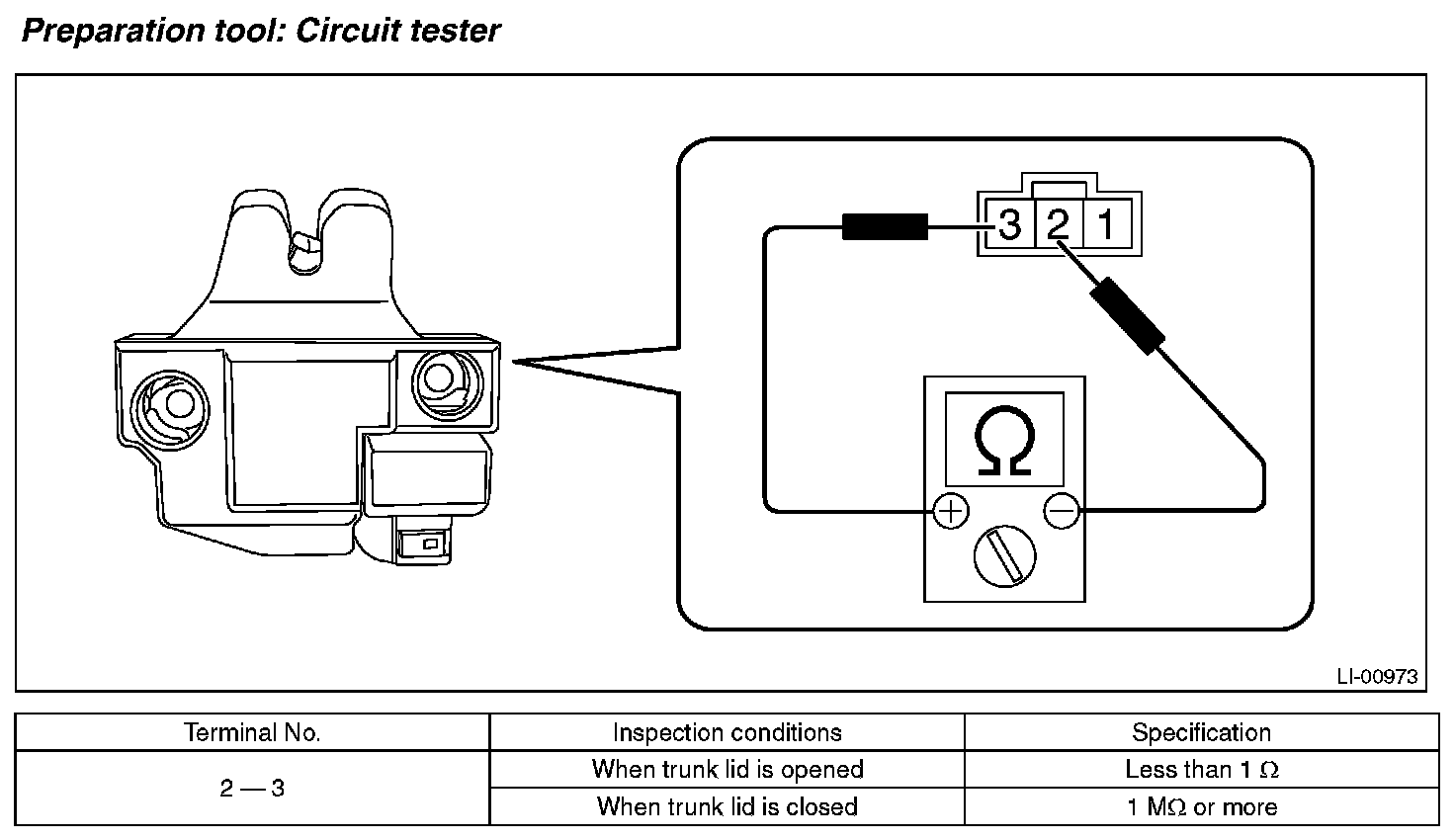

3. CHECK TRUNK LID SWITCH
1. Disconnect the trunk lid switch connector.
2. Measure the resistance between trunk lid switch terminals.
3. If the inspection result is not within the standard value, replace the trunk lid latch and actuator assembly.
