Headlight System

Headlight System

INSPECTION

1. AUTO HEADLIGHT SYSTEM CHECK

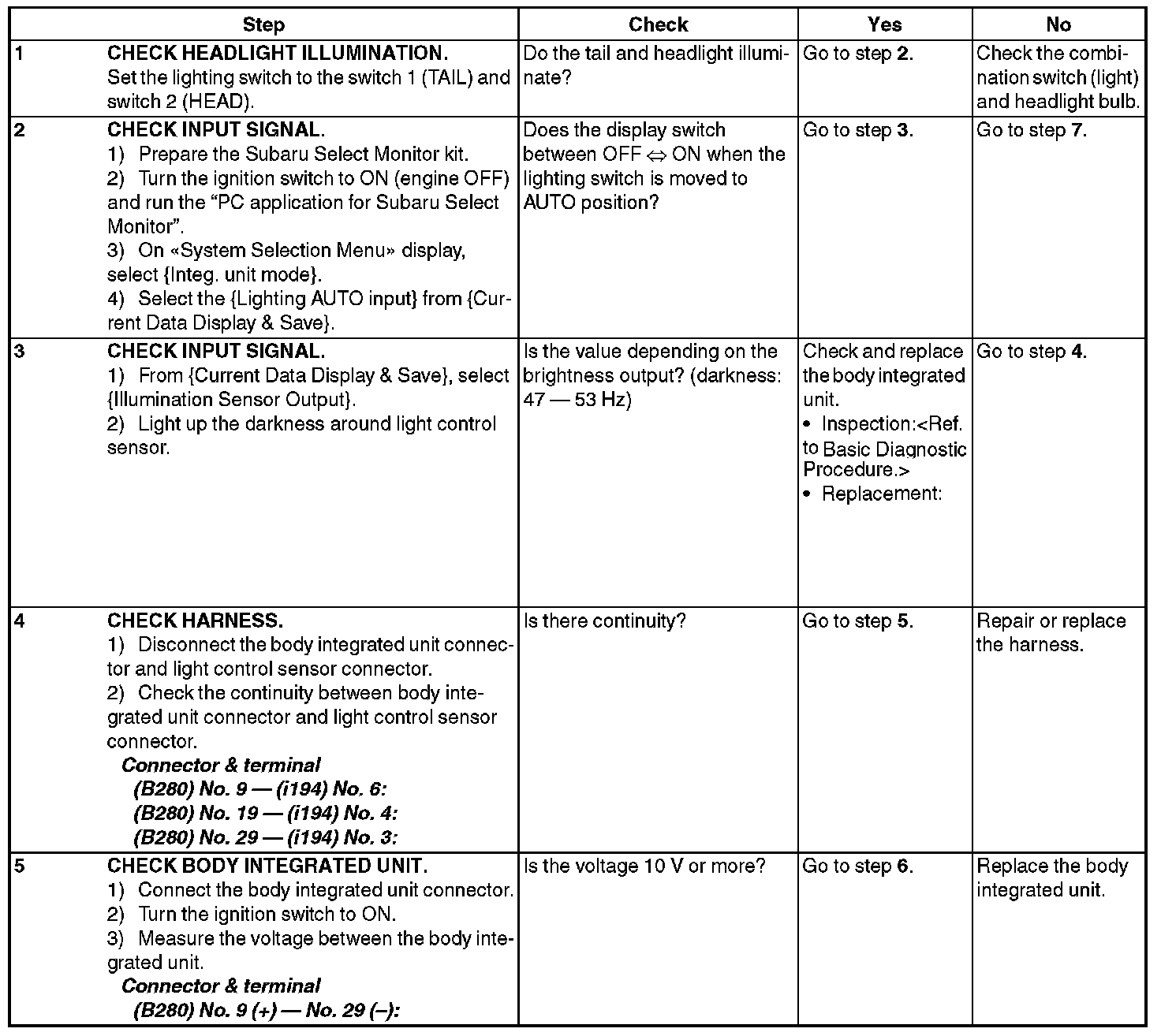

Step 1-5:

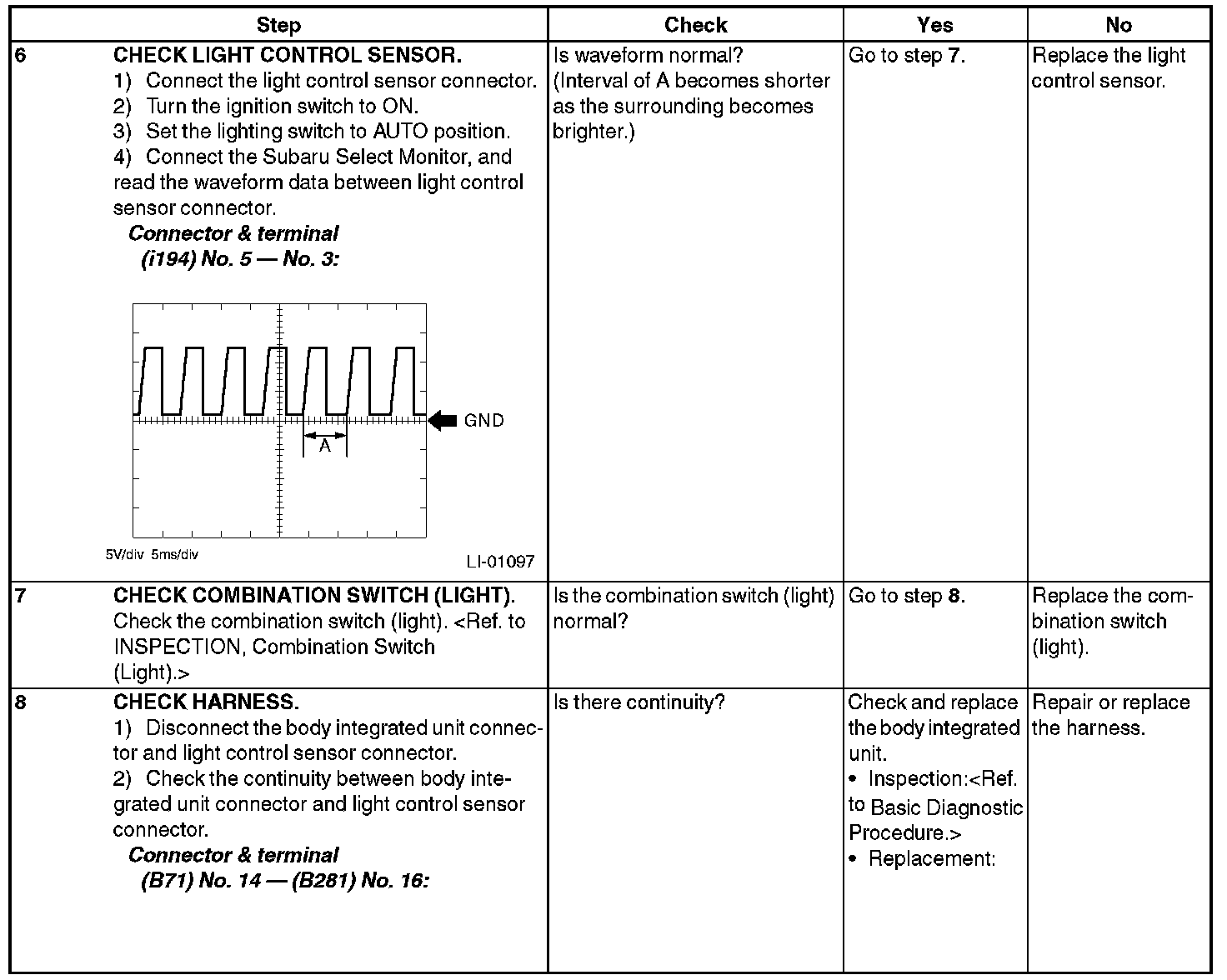

Step 6-8:

2. CHECK LIGHTING SWITCH
Measure the resistance between lighting switch terminals. Testing and Inspection

3. CHECK DIMMER & PASSING SWITCH
Measure the resistance between dimmer & passing switch terminals. Testing and Inspection
