Brake Lamp: Testing and Inspection
Stop Light SystemINSPECTION

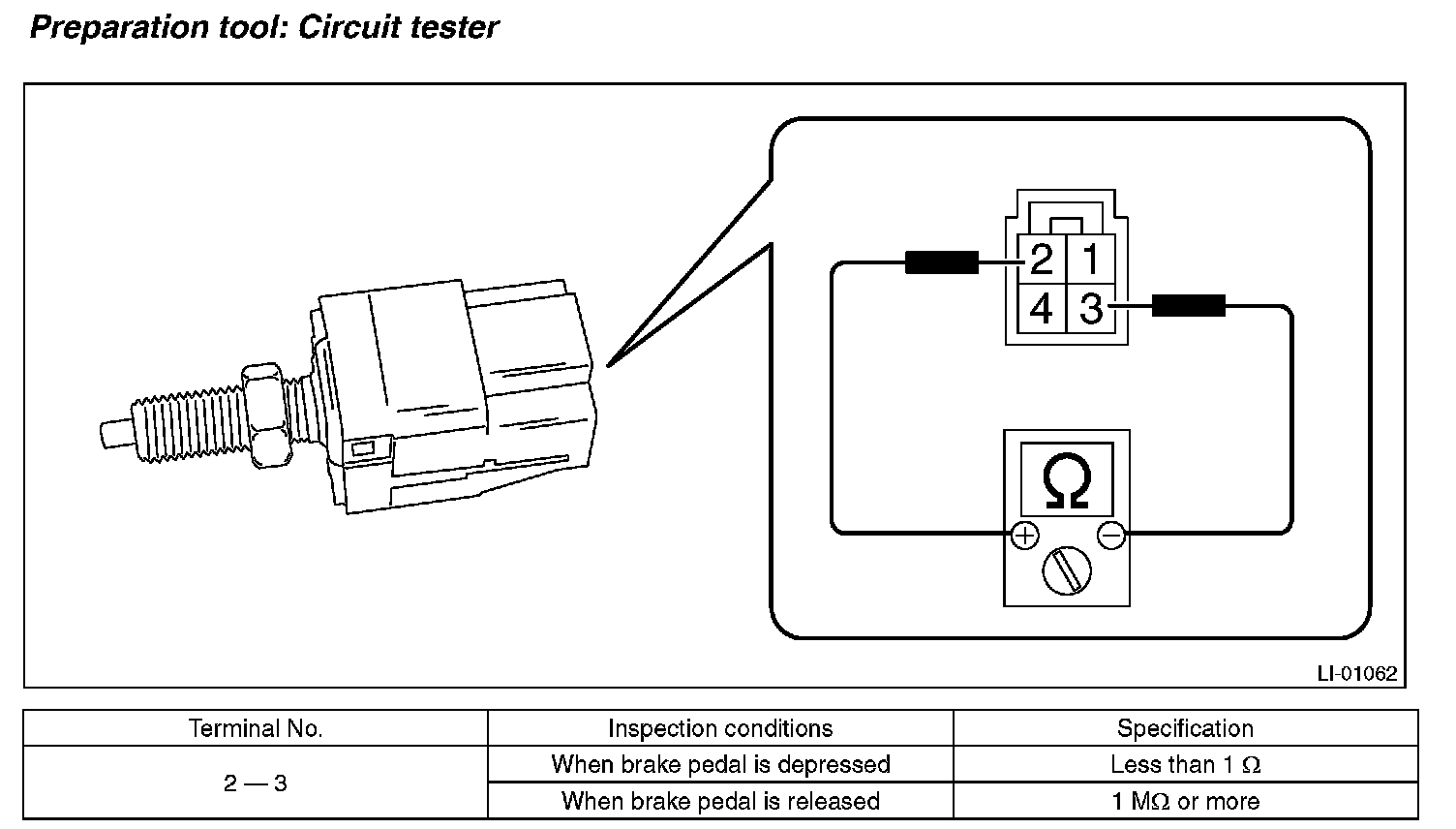

1. CHECK STOP LIGHT SWITCH
1. Disconnect the stop light switch connector.
2. Measure the resistance between stop light switch terminals.
3. Replace the stop light switch if the inspection result is not within the standard value.
