Home >> Subaru >> 2010 >> Legacy F6-3.6L DOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Check Fuel Level Sensor

Check Fuel Level Sensor

CHECK FUEL LEVEL SENSOR

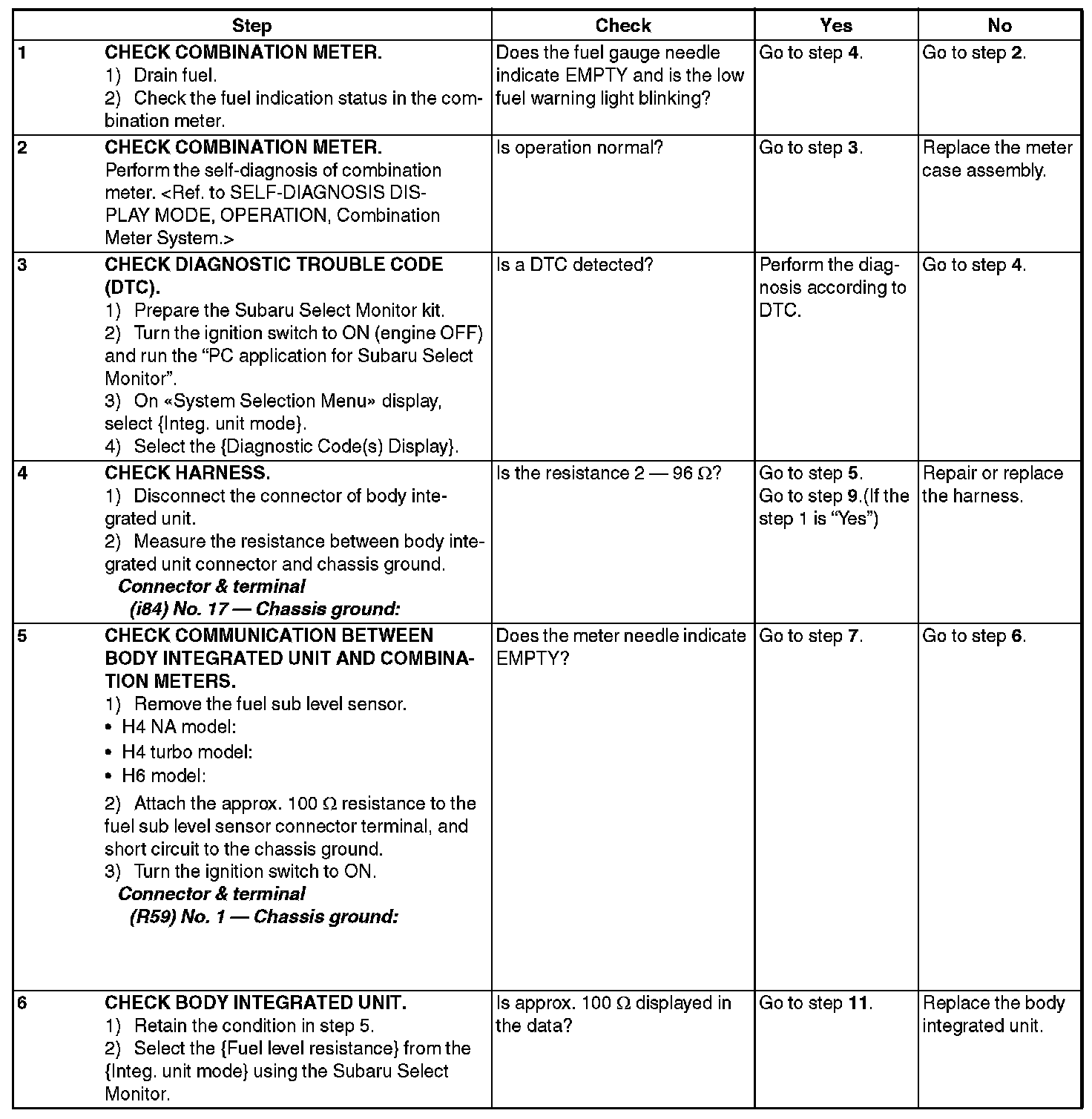

Step 1-6:

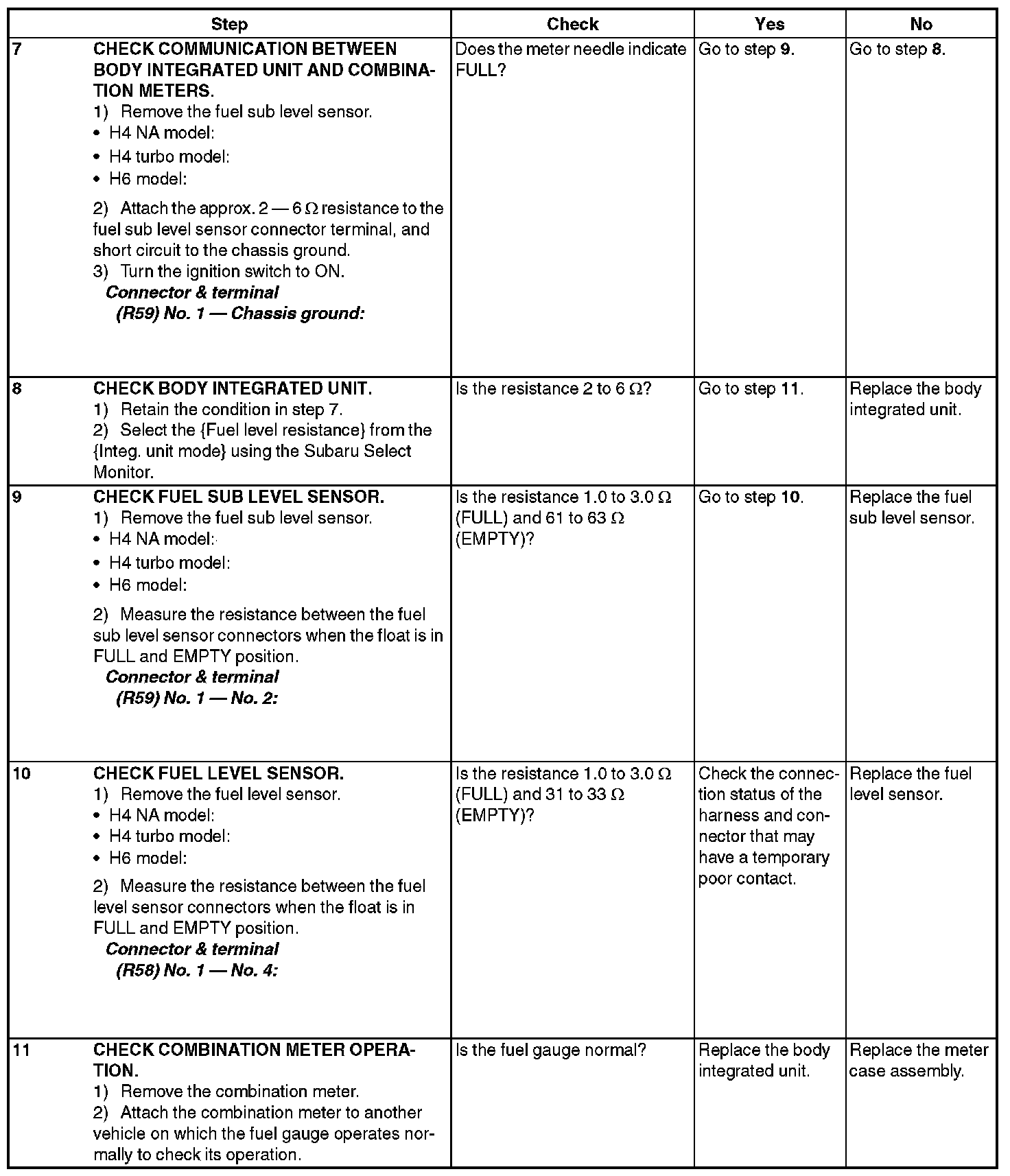

Step 7-11:
