Legacy F6-3.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Engine Lubrication
Engine Lubrication
COMPONENT
OIL PAN
UPPER, OIL COOLER, AND
OIL FILTER

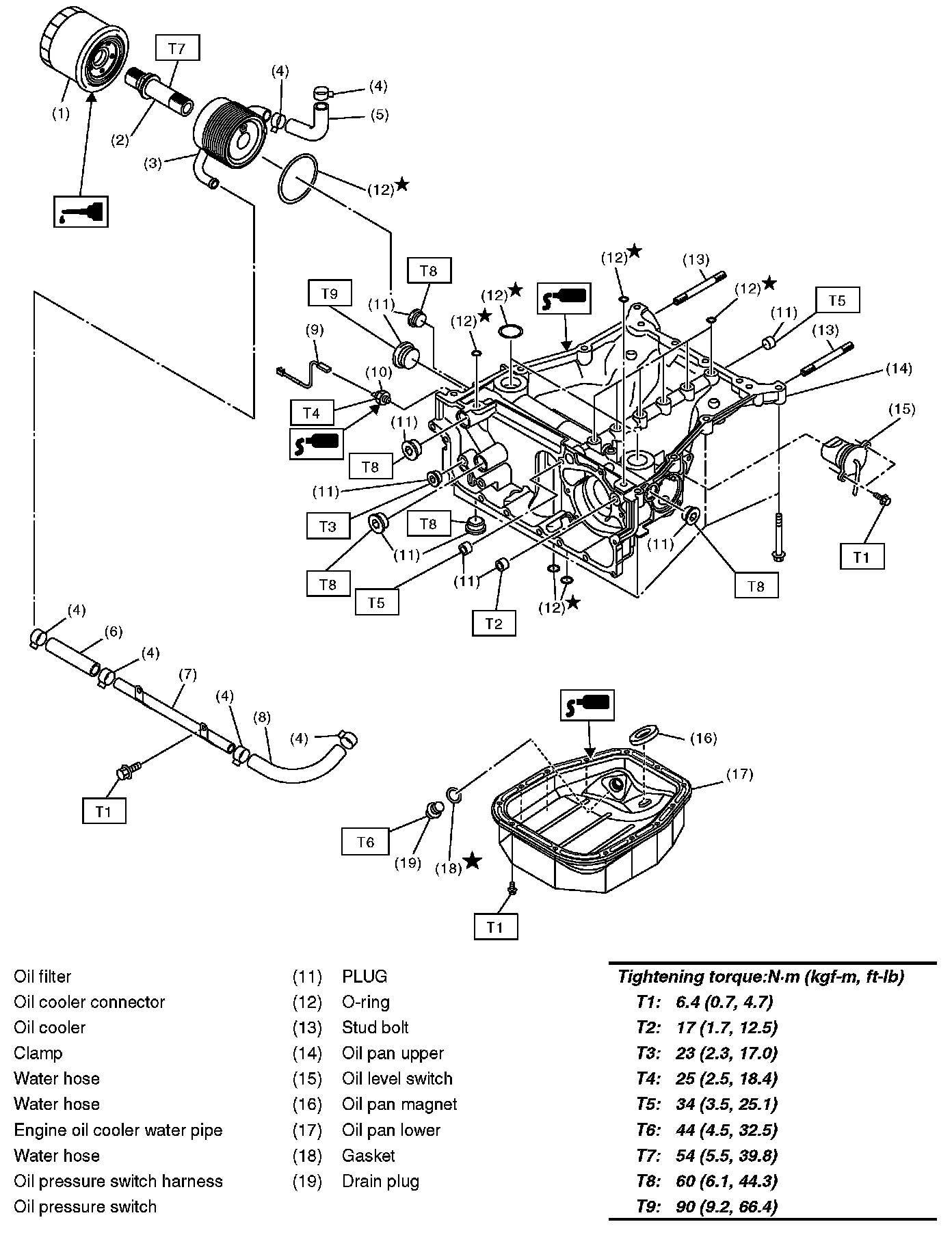

Oil Pan Upper, Oil Cooler, And Oil Filter:

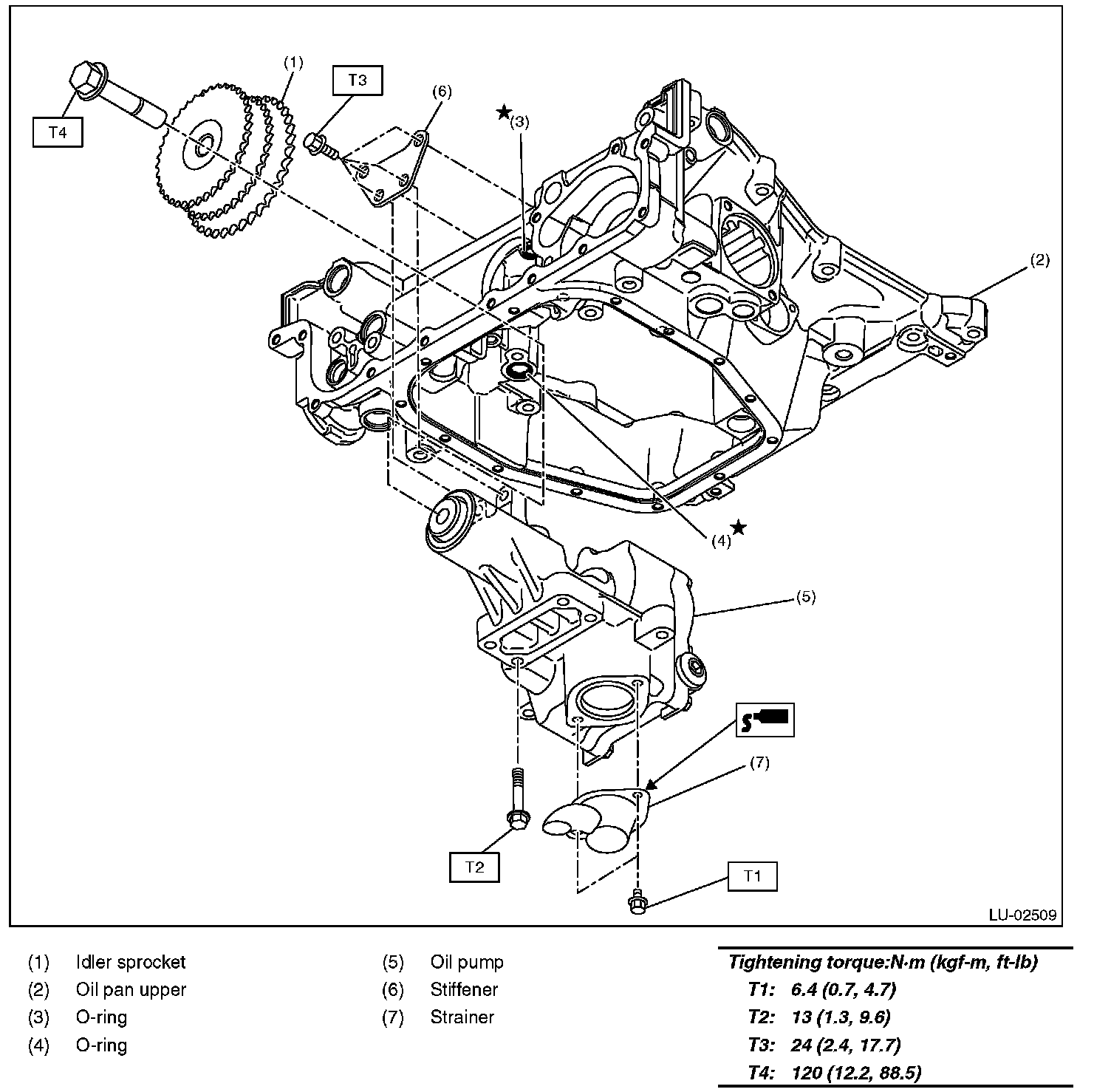

OIL PUMP
OIL PUMP:
