Transfer Case, Extension Case & Reduction Gear
Transfer Case, Extension Case & Reduction Gear
TRANSFER CASE
, EXTENSION CASE & REDUCTION GEAR

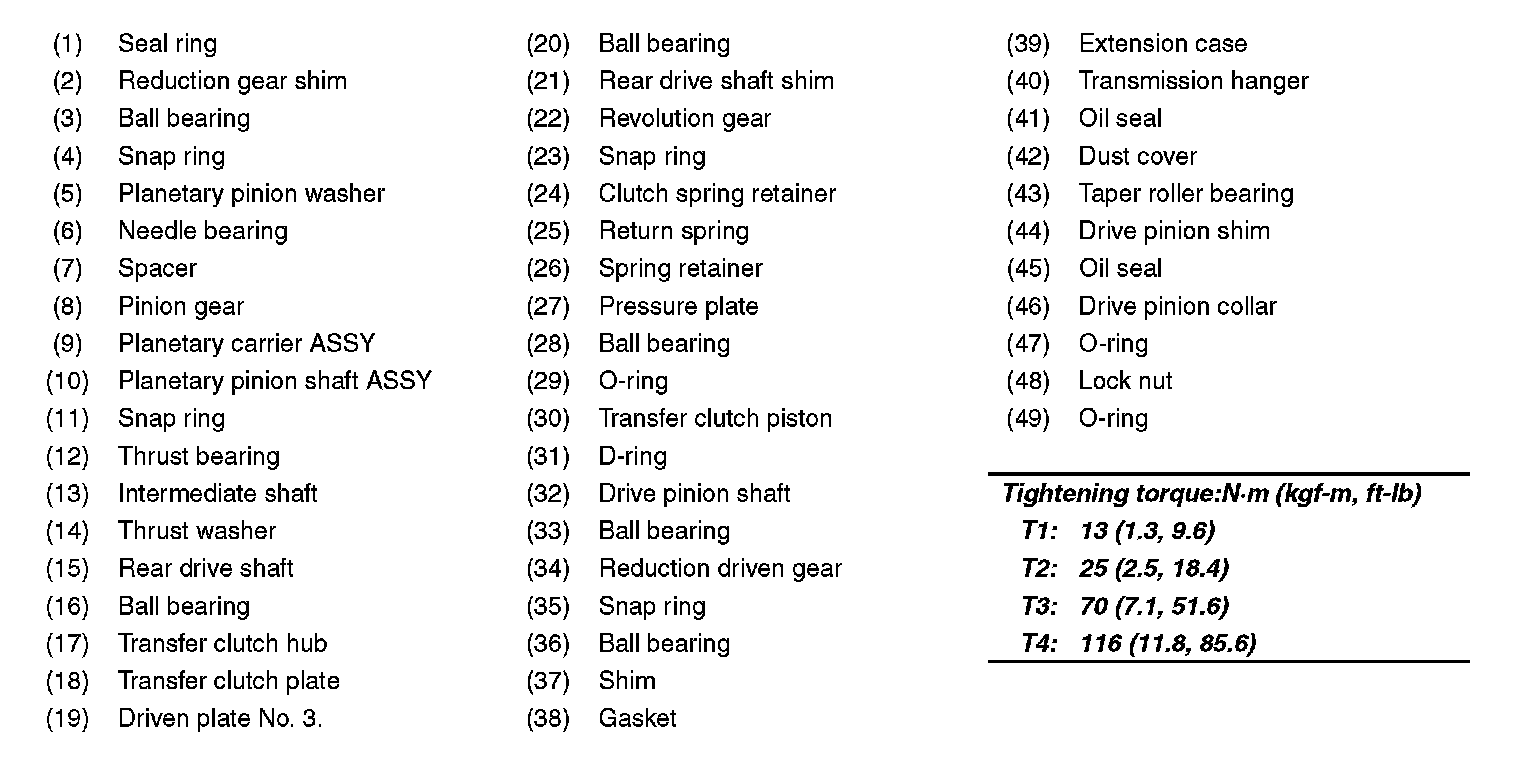

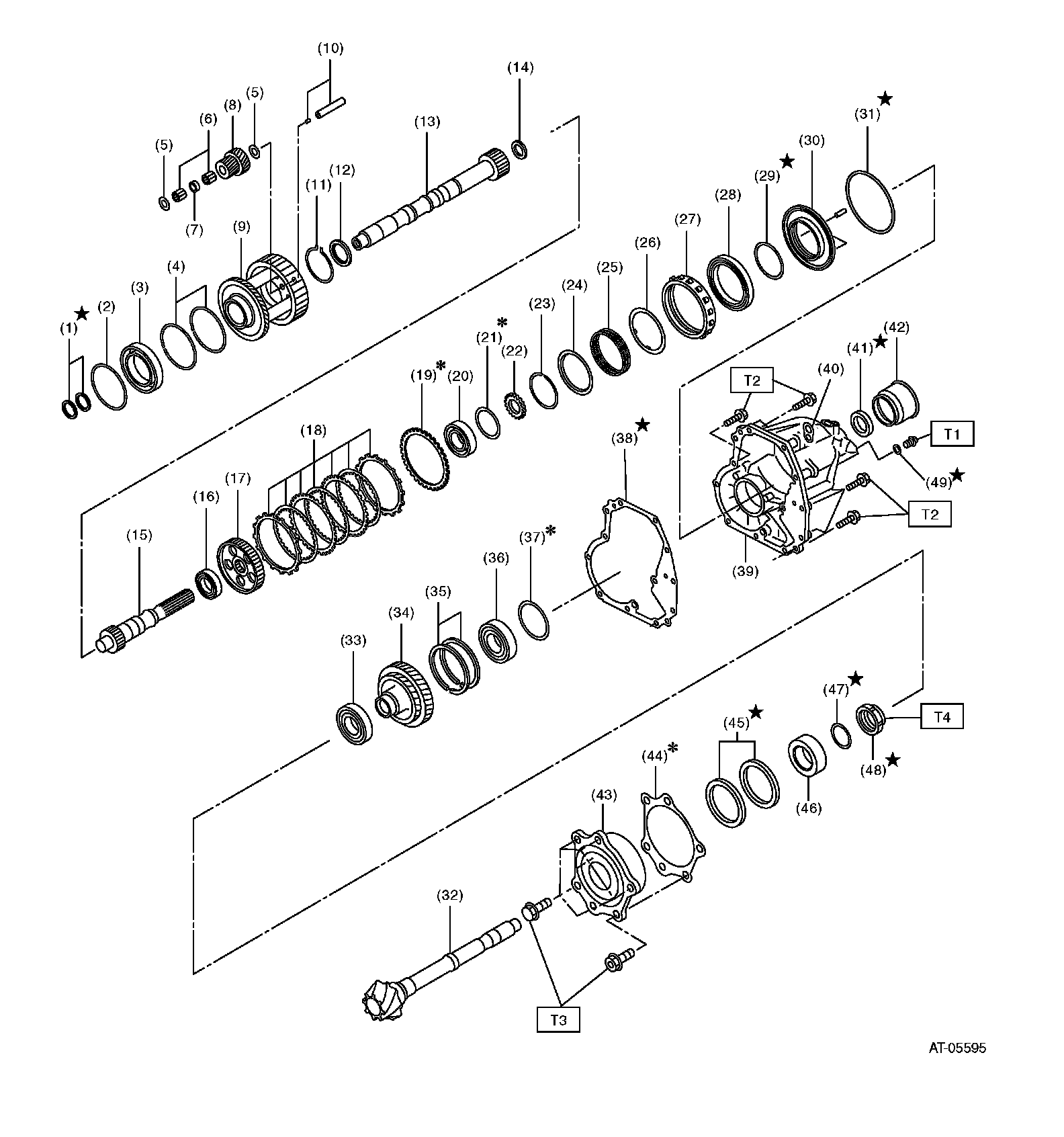

Transfer Case, Extension Case and Reduction Gear Components (Part 1):
Transfer Case, Extension Case and Reduction Gear Components (Part 2):
