Shifter A/T
A/T SELECT LEVER

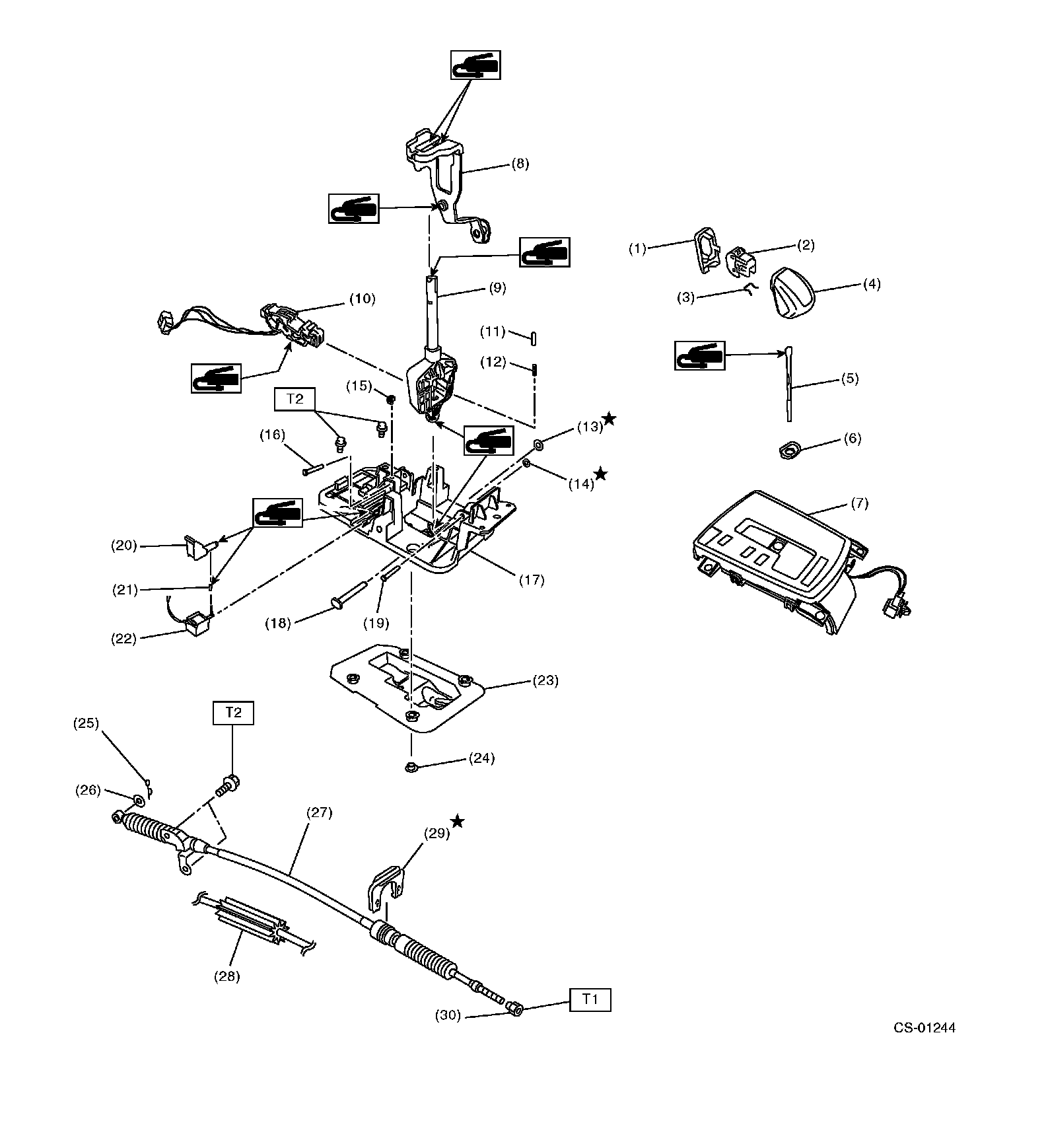

A/T Select Lever Components (Part 1):

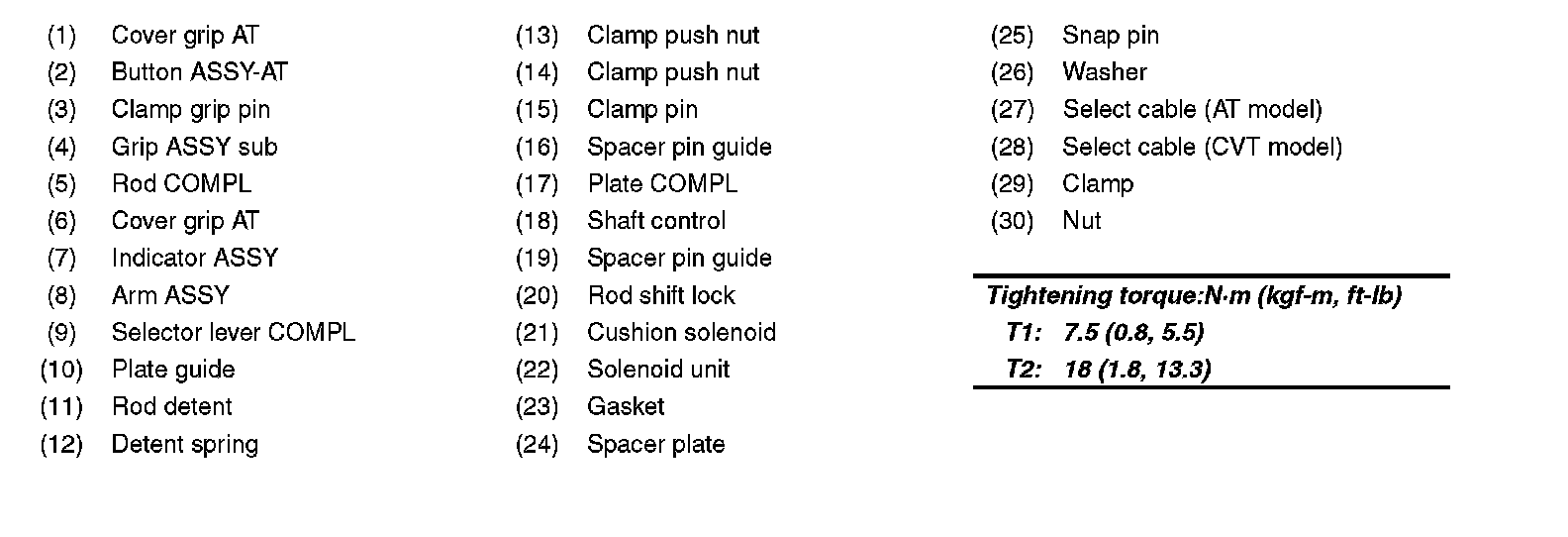

A/T Select Lever Components (Part 2):
