Radiator Cooling Fan
>>
System Diagram
>>
Schematic, Radiator Main Fan System
Schematic, Radiator Main Fan System
Radiator Fan System

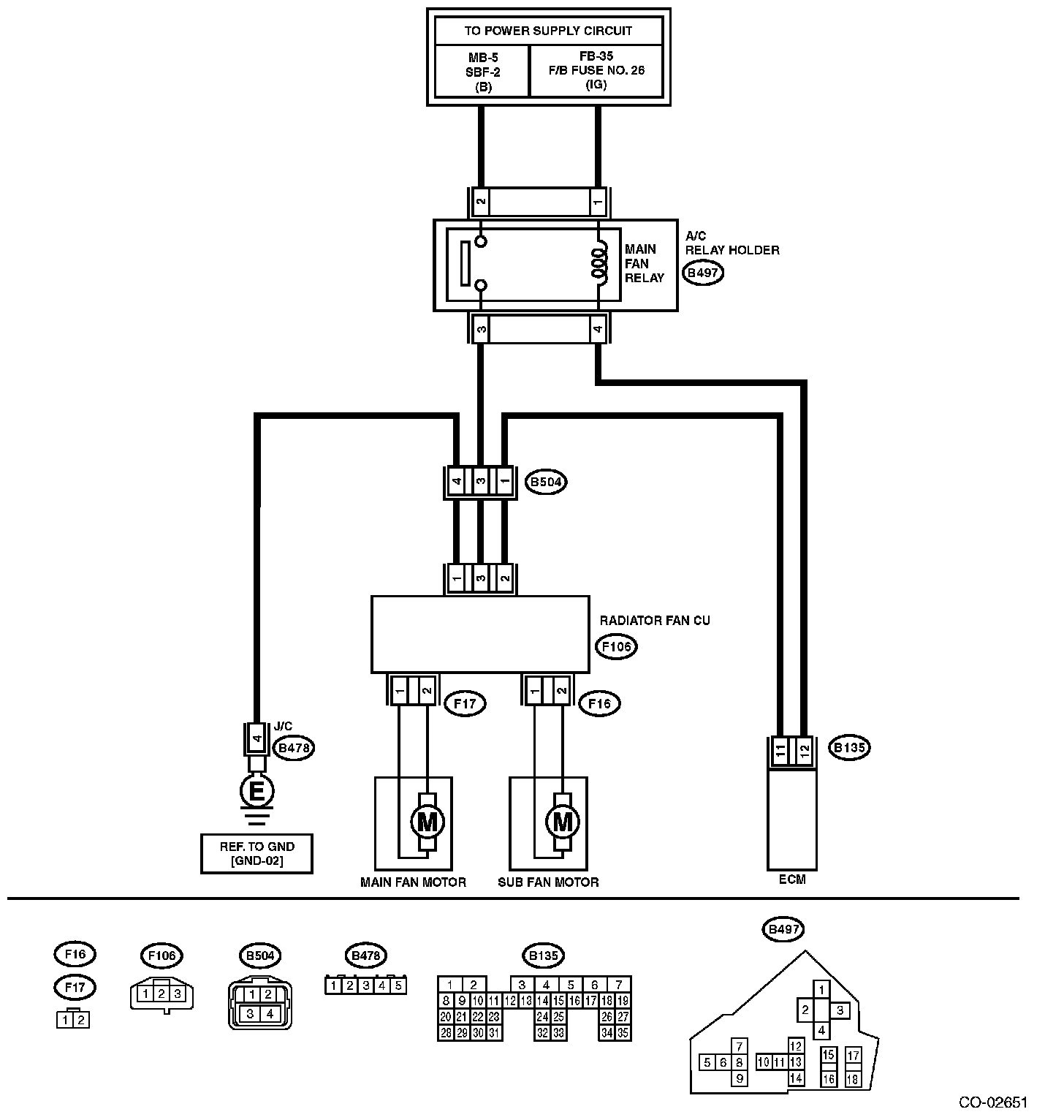

WIRING DIAGRAM
Radiator Fan System Wiring Diagram:

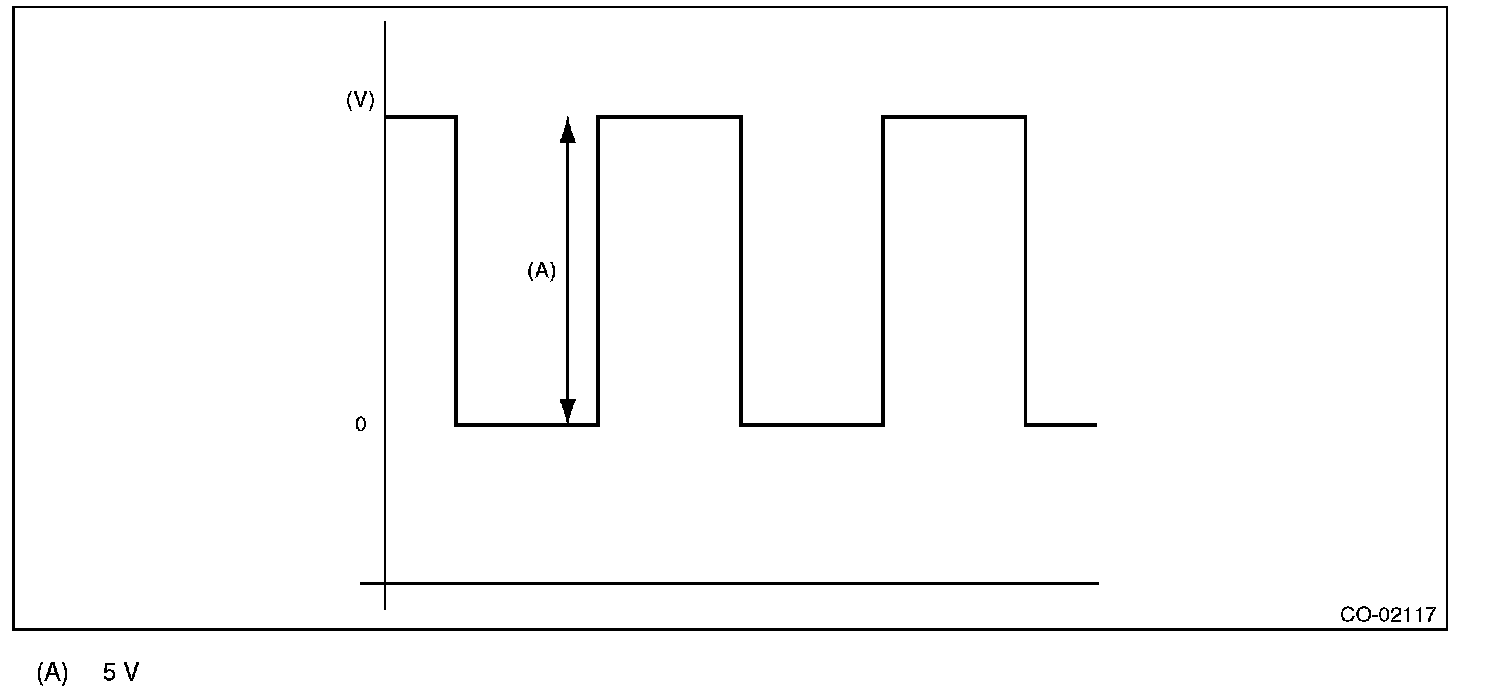

RADIATOR FAN CONTROL OUTPUT WAVEFORM
Radiator Fan Control Output Waveform:
