Electrical Specification

Control Module I/O Signal

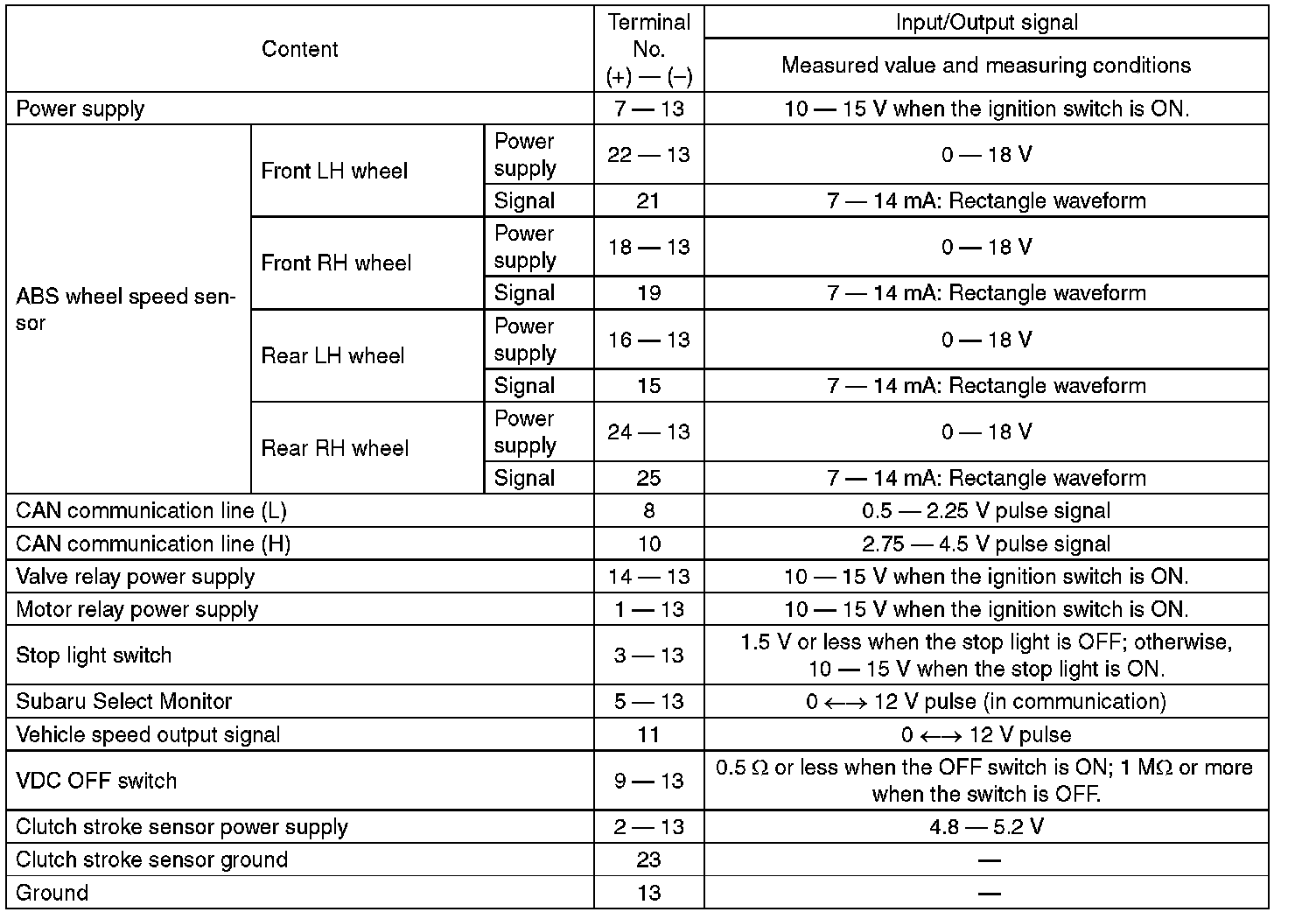

Control Module I/O Signal Electrical Specification (Part 1):

NOTE:

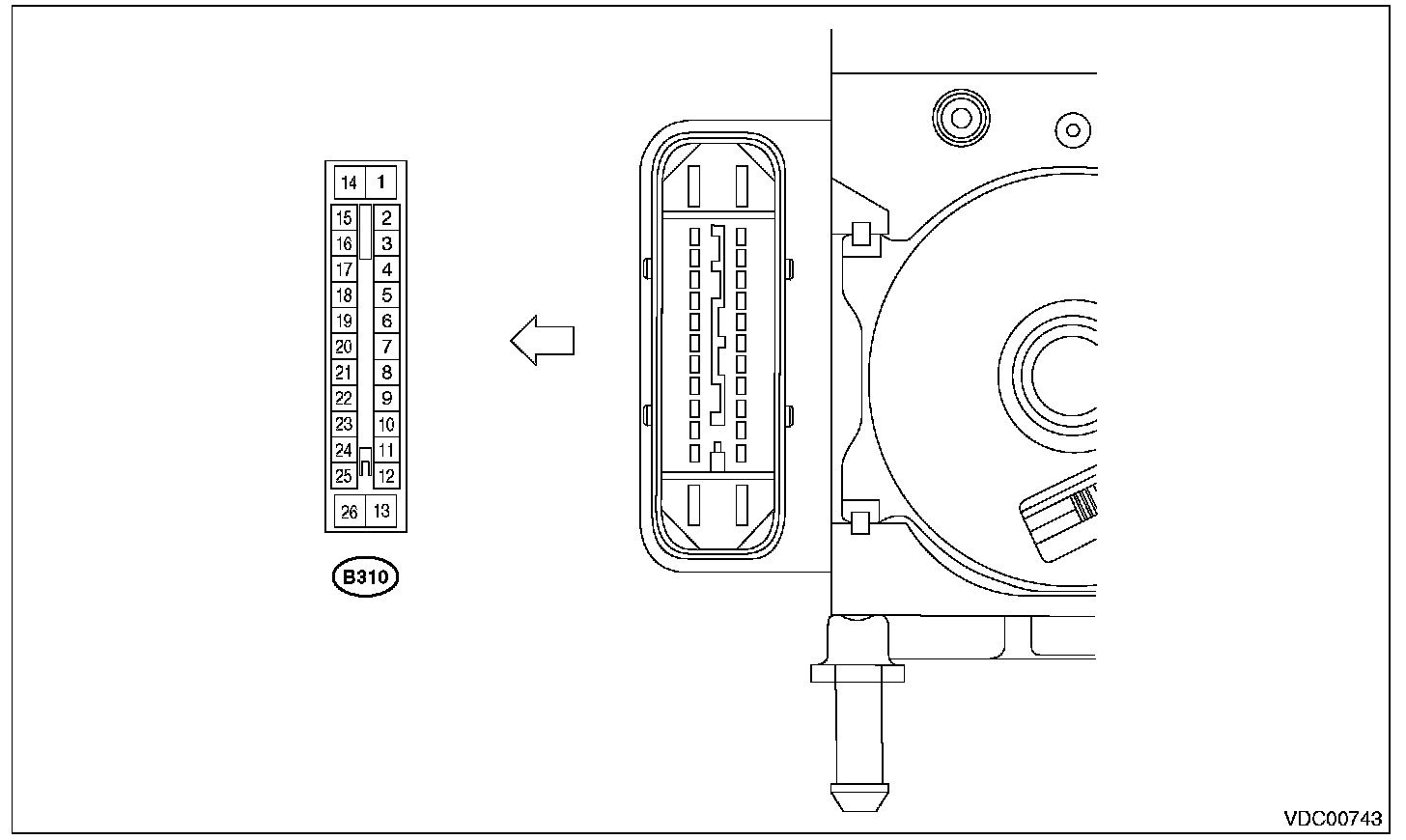

^ Terminal numbers in VDCCM&H/U connector are shown in the figure.
^ When the connector is removed from VDCCM&H/U, the brake warning light (EBD warning light), ABS warning light, and VDC warning light & VDC indicator light illuminate.

Control Module I/O Signal Electrical Specification (Part 2):
