Outer Mirror Assembly

OUTER MIRROR ASSEMBLY

INSPECTION

1. Disconnect the outer mirror connector.
2. Apply battery voltage between the outer mirror connector terminals and check the mirror operation.

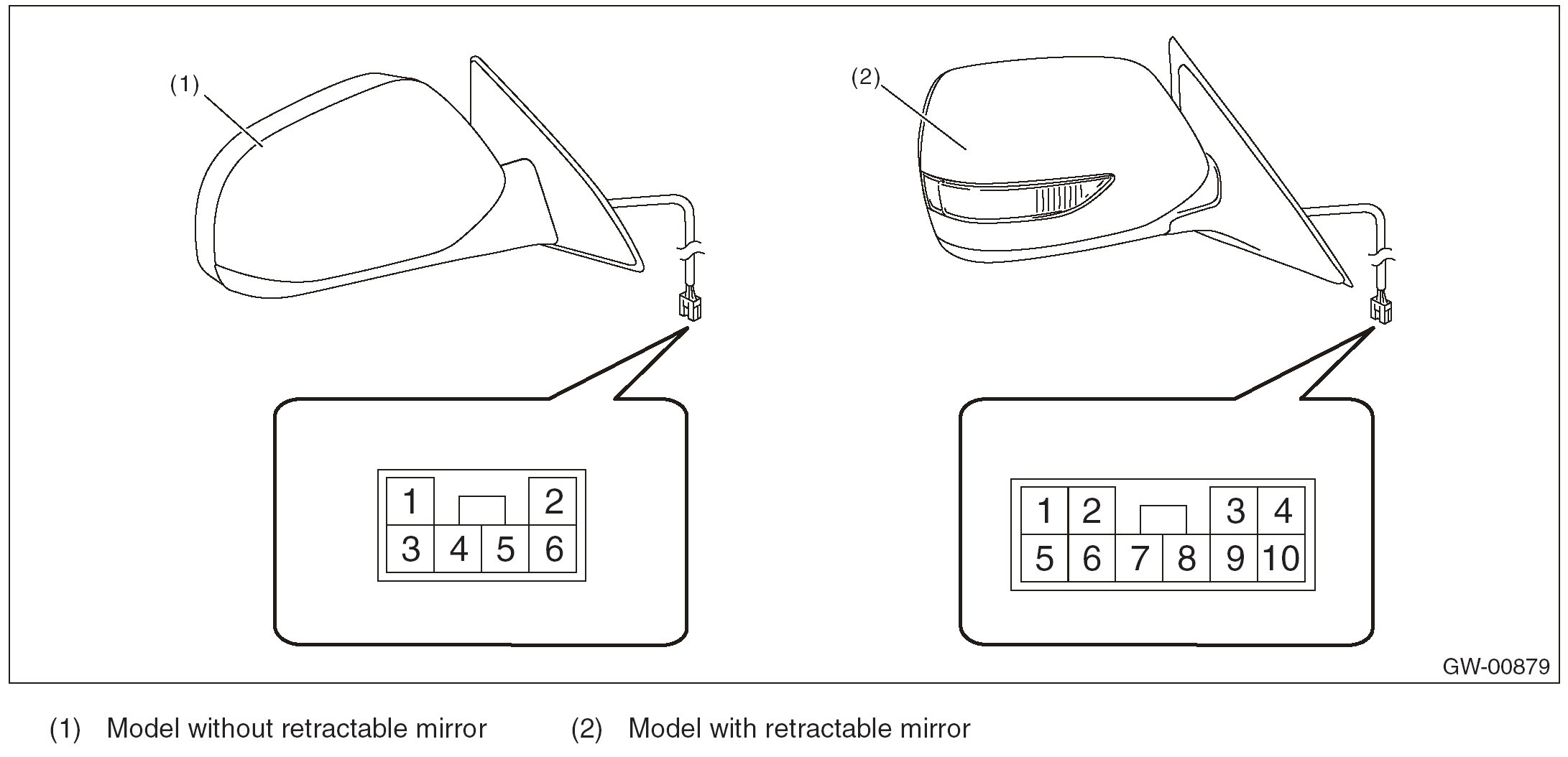

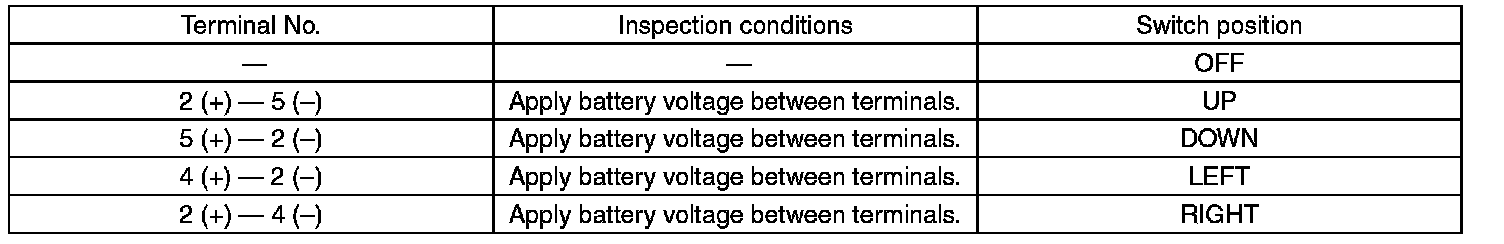

- Model without retractable mirror

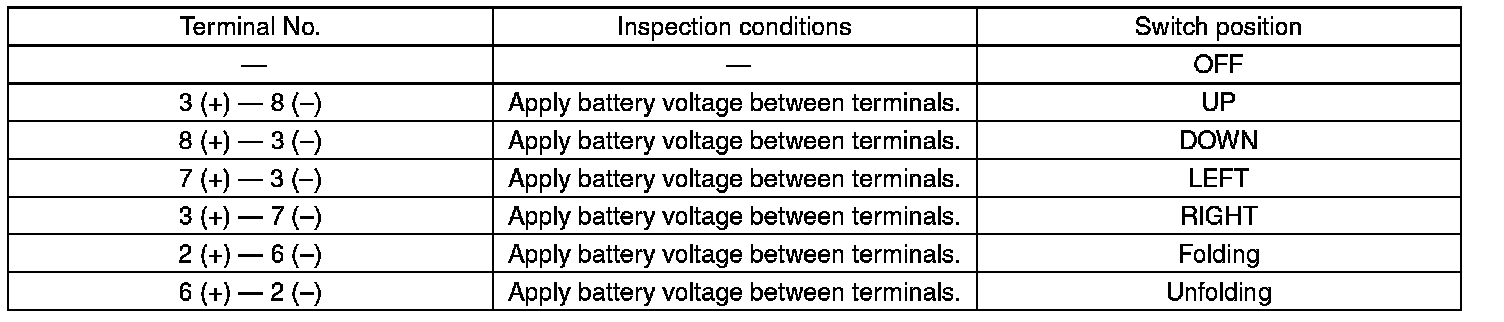

- Model with retractable mirror







3. If the inspection results in improper operation, replace the outer mirror.

NOTE: There always exists a current of 1.2 mA at the electric retraction terminal.
