Exterior Moulding / Trim: Service and Repair
PROTECTOR TAPEINSTALLATION
Apply the protector tape by the following steps.

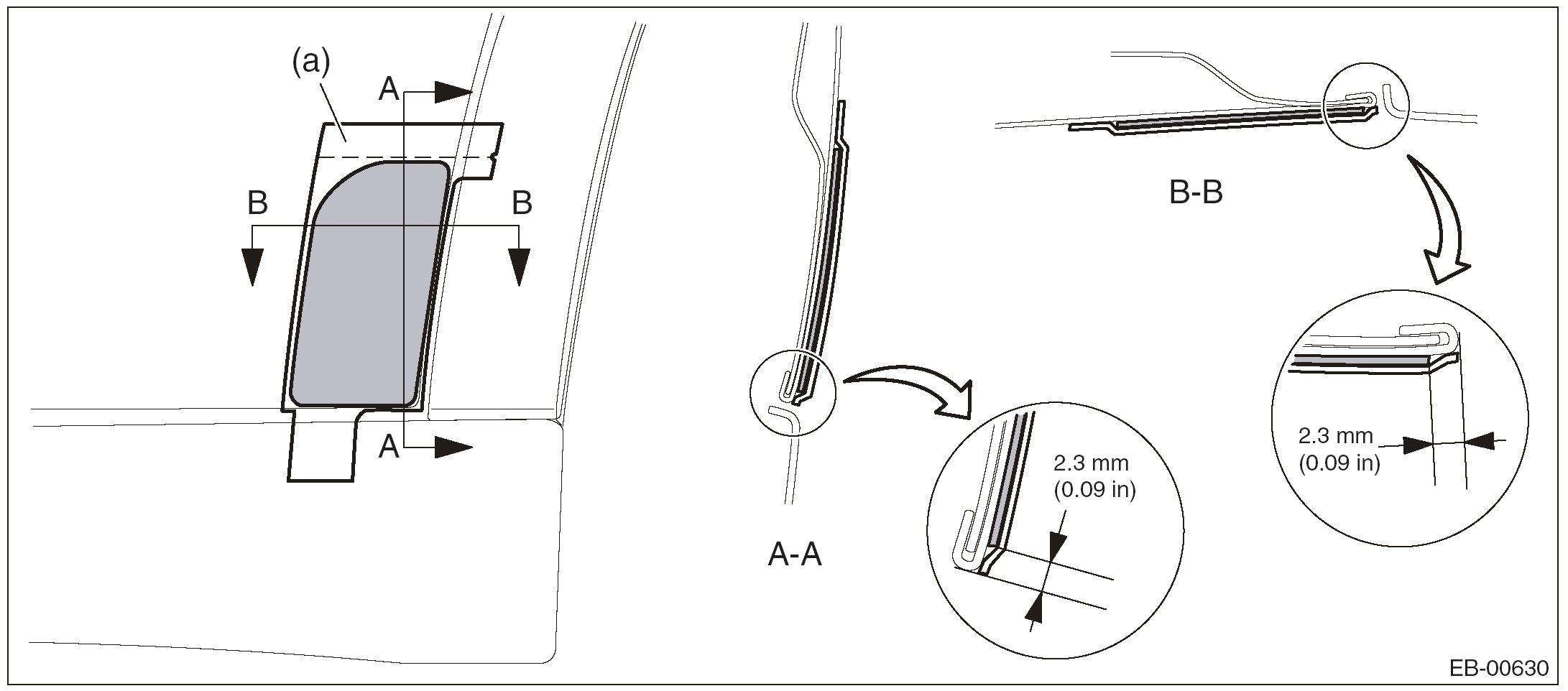

1. REAR DOOR PROTECTOR
1. Clean the area around applying position to remove any foreign objects on body.
2. Detach the backing paper from the temporary retention area (a) and apply the protector tape after positioning it correctly.
3. Detach the remaining backing paper, and moisten the applying area and the backside of protector tape by spraying liquid (mild detergent solution at 3% concentration).
4. Align the protector tape to the position shown in the figure and apply it to the body.
CAUTION: Remove the water or air bubbles out of the protector tape by using the plastic or rubber spatula.
5. Detach the application tape and temporary retention tape.

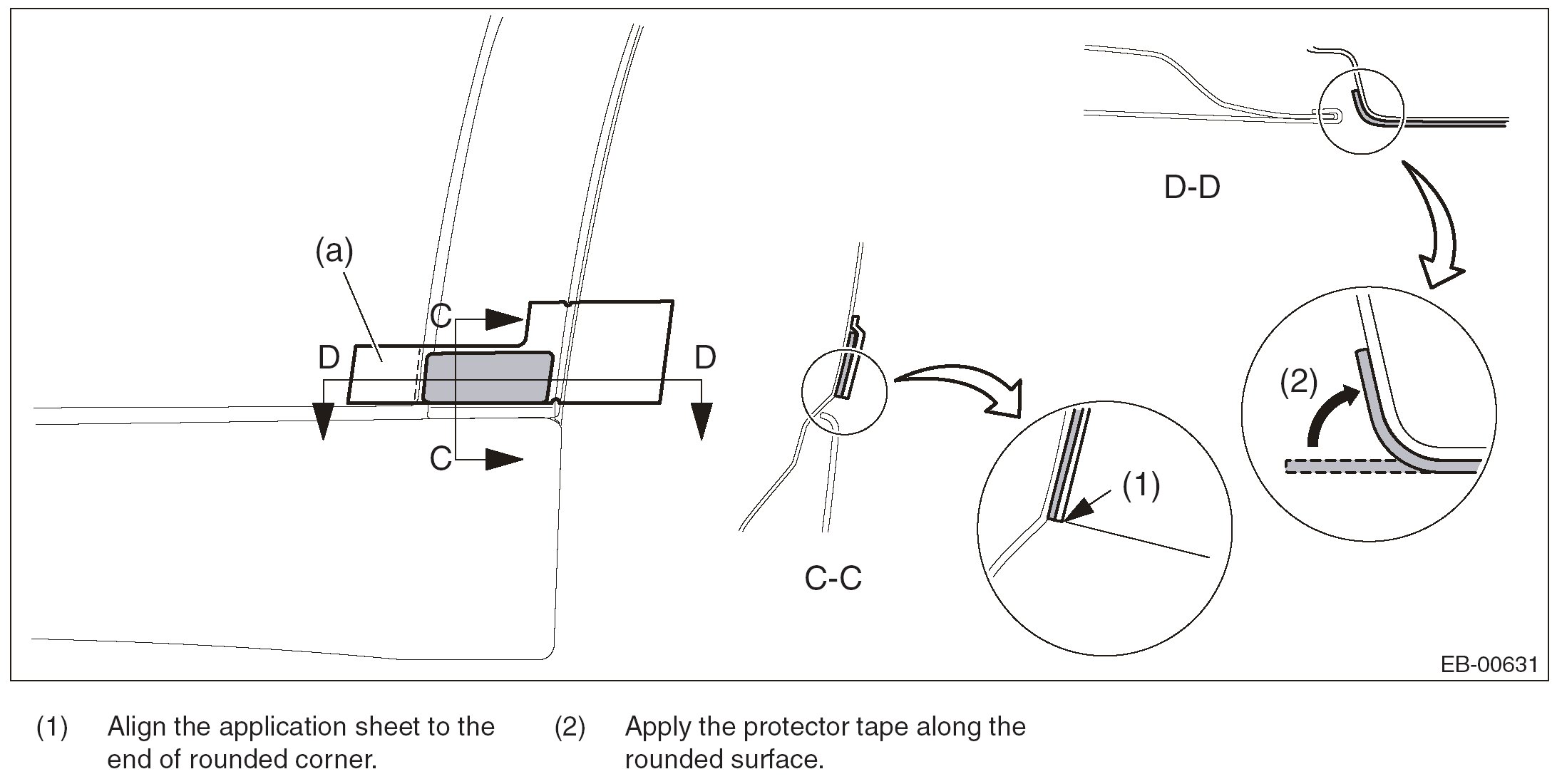

2. REAR DOOR PROTECTOR (OUTBACK MODEL)
1. Clean the area around applying position to remove any foreign objects on body.
2. Detach the backing paper and apply the protector tape after positioning it correctly.
3. Detach the backing papers, and moisten the applying area and the backside of protector tape by spraying liquid (mild detergent solution at 3% concentration).
4. Apply the protector tape to the vehicle body.
CAUTION: Remove the water or air bubbles out of the protector tape by using the plastic or rubber spatula.
5. Detach the application tape and temporary retention tape.

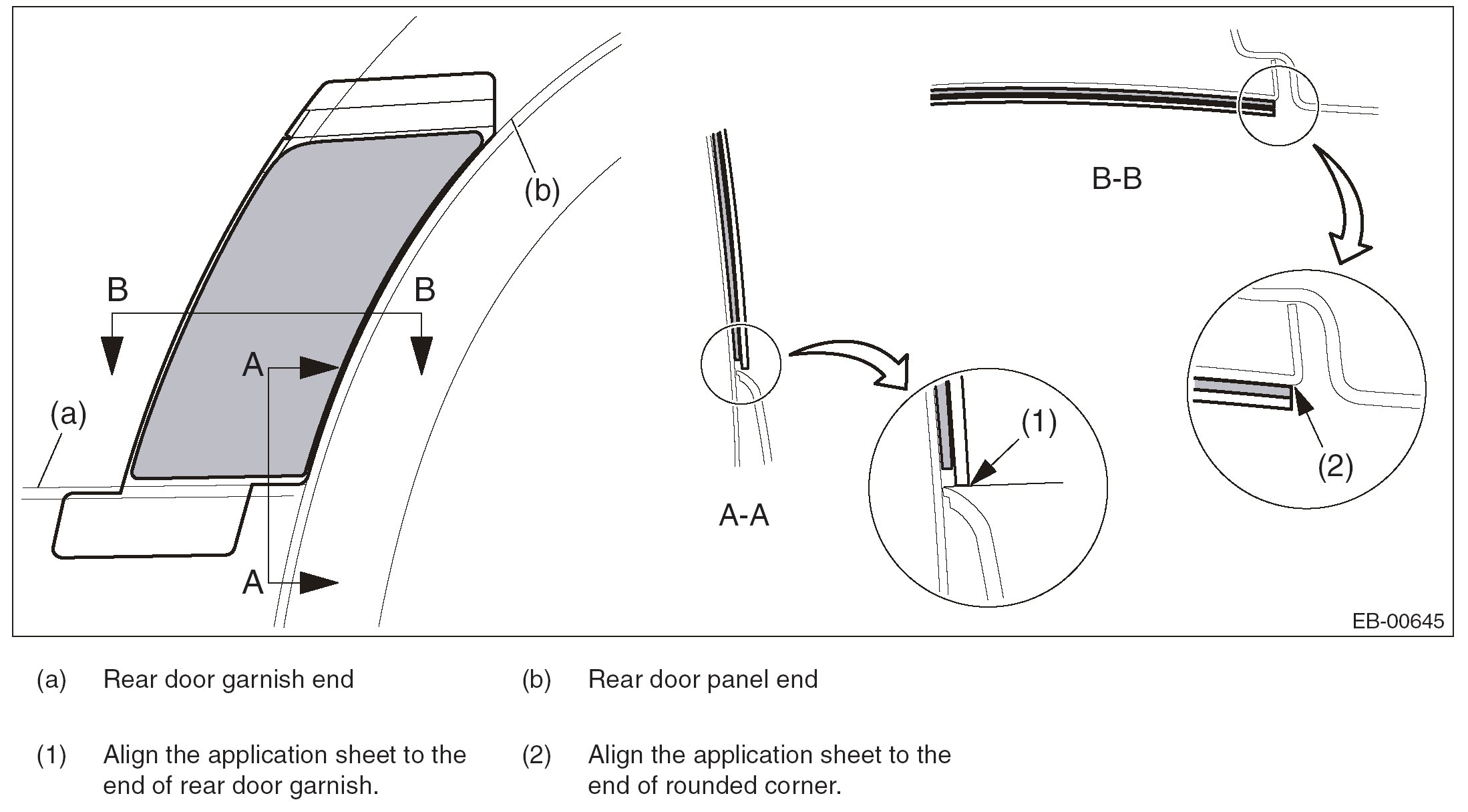

3. REAR QUARTER PROTECTOR
1. Clean the area around applying position to remove any foreign objects on body.
2. Detach the backing paper from the temporary retention area (a) and apply the protector tape after positioning it correctly.
3. Detach the backing papers, and moisten the applying area and the backside of protector tape by spraying liquid (mild detergent solution at 3% concentration).
4. Apply the protector tape to the vehicle body.
CAUTION: Remove the water or air bubbles out of the protector tape by using the plastic or rubber spatula.
5. Detach the application tape and temporary retention tape.
6. Bend the tack-in end and apply it as shown by (2) in the figure.
