Removal & Installation

Trunk Lid Latch and Actuator Assembly

REMOVAL

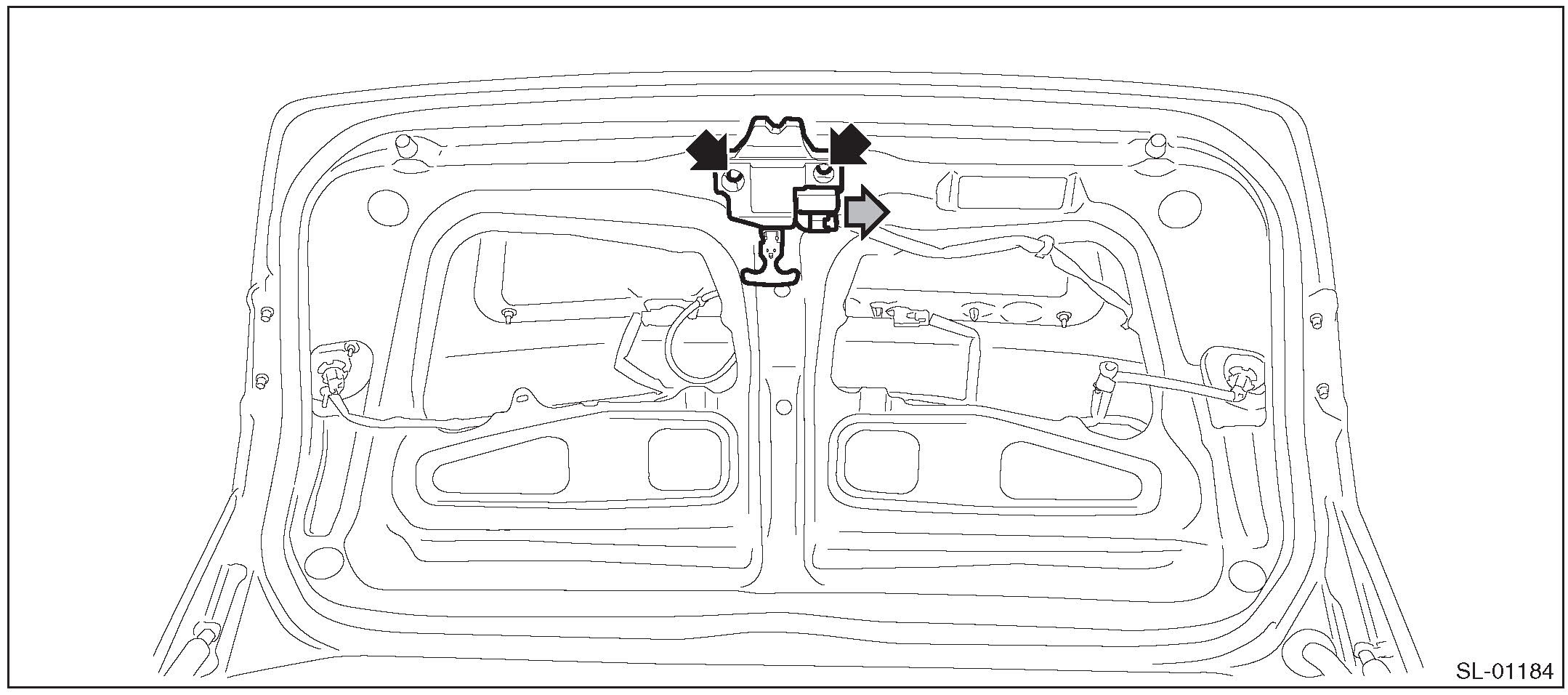

1. Disconnect the harness connector.
2. Remove the bolts, and remove the trunk lid latch & actuator assembly.






INSTALLATION

Install each part in the reverse order of removal.

REAR GATE LOCK AND TRUNK LID LOCK
Tightening torque:
N.m (kgf.m, ft.lb)
T1: 7.5 (0.76, 5.5)
T2: 25 (2.5, 18.4)
T3: 18 (1.8, 13.3)
