Hood Latch: Adjustments

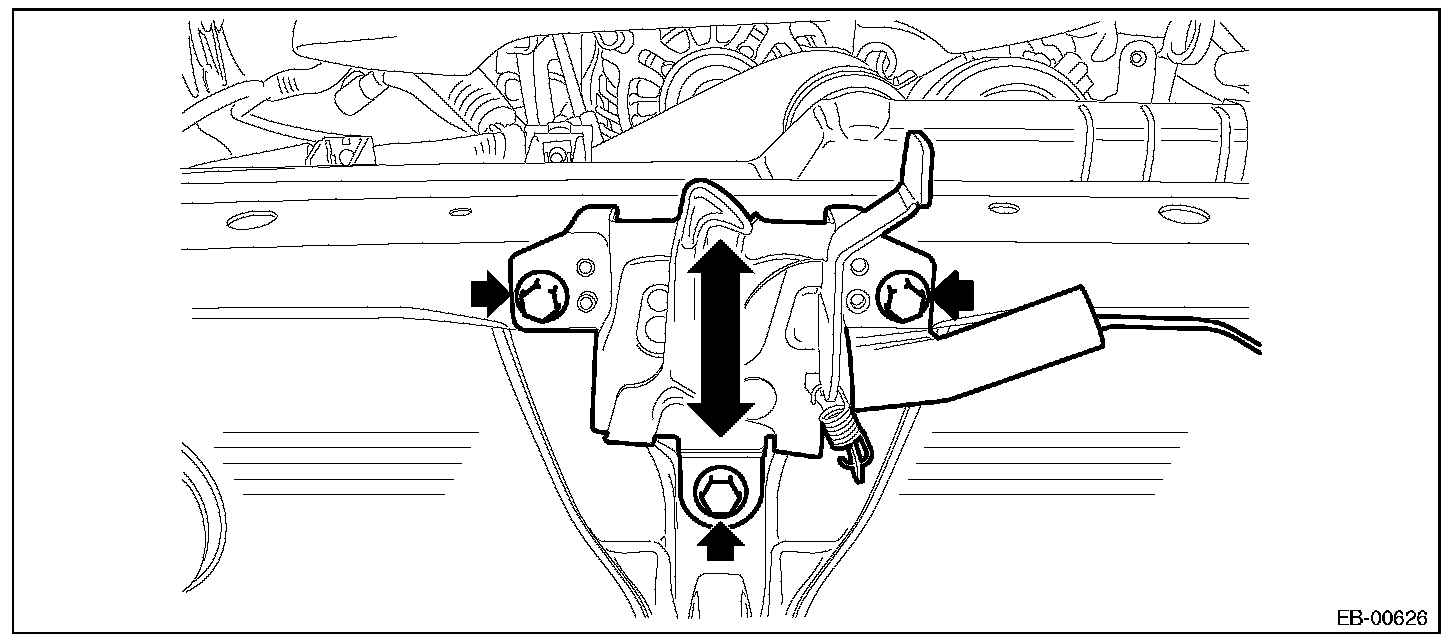

Front Hood Lock AssemblyADJUSTMENT
1. Loosen the bolt, and adjust the lock assembly while moving it up and down.
2. After adjustment, tighten the bolts securely.
FRONT HOOD LOCK AND REMOTE OPENERS
Tightening torque:N.m (kgf.m, ft.lb)
T1: 7.5 (0.76, 5.5)
T2: 33 (3.36, 24.3)
