P2098

DTC P2098 POST CATALYST FUEL TRIM SYSTEM TOO LEAN BANK 2

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.
- GENERAL DESCRIPTION P2098

CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode Clear Memory Mode, and Inspection Mode Preparation For the Inspection Mode

WIRING DIAGRAM:

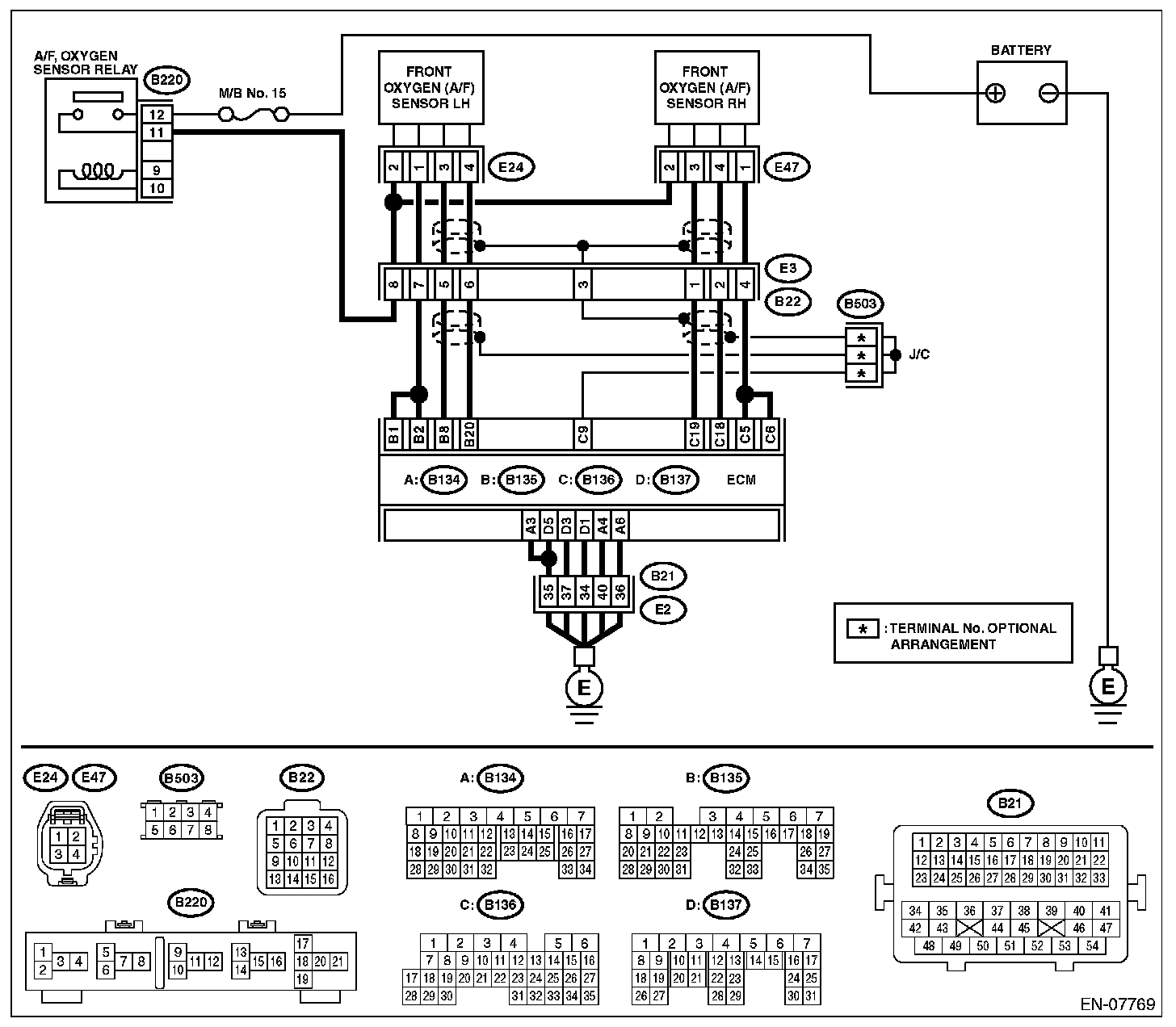

Wiring Diagram (Part 1):

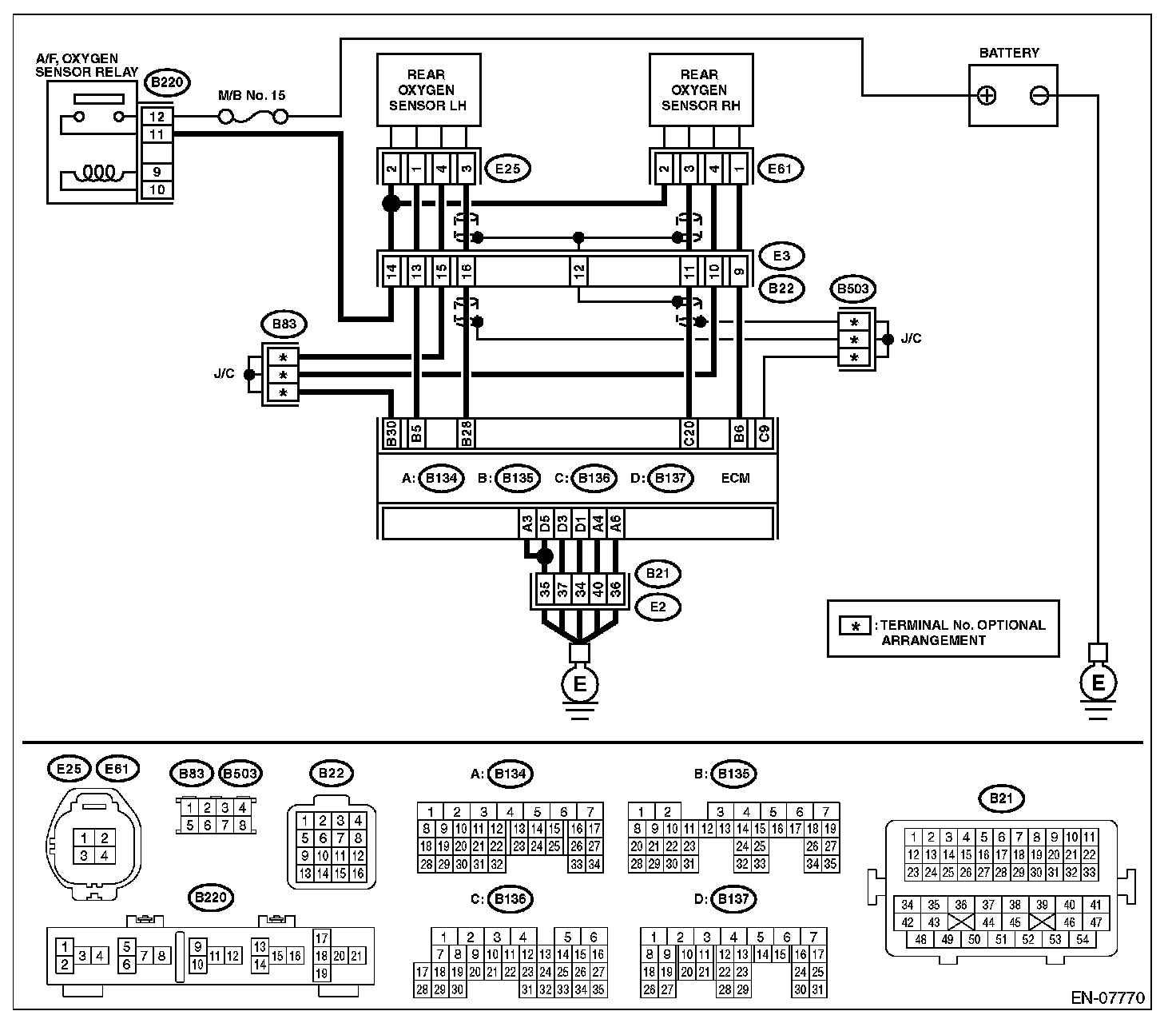

Wiring Diagram (Part 2):

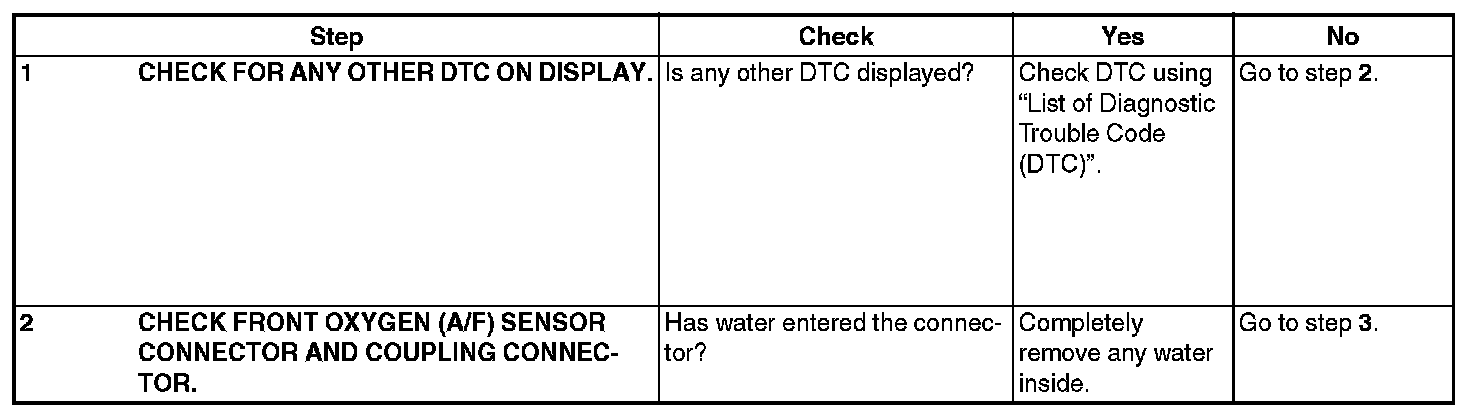

Step 1-2:

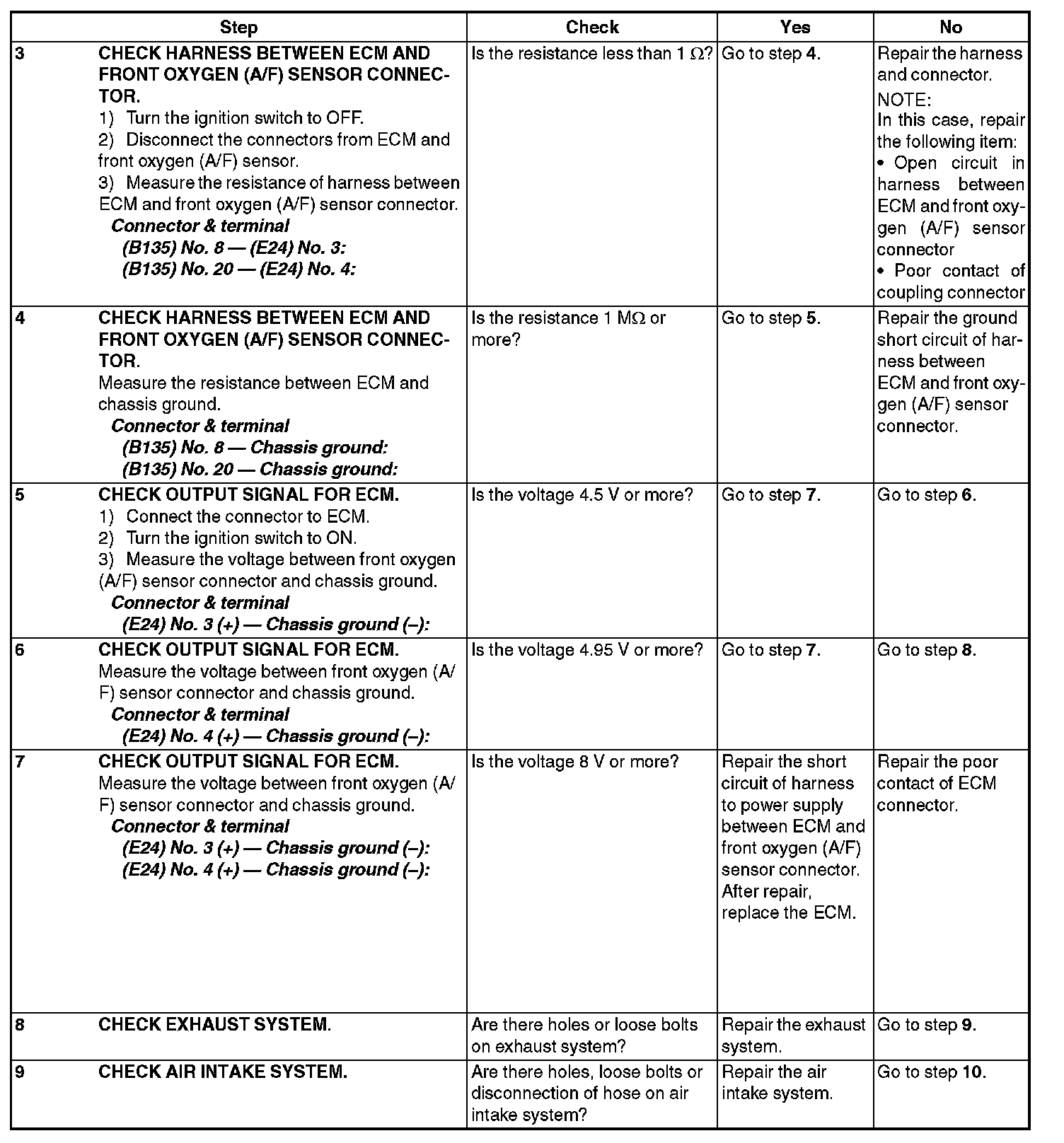

Step 3-9:

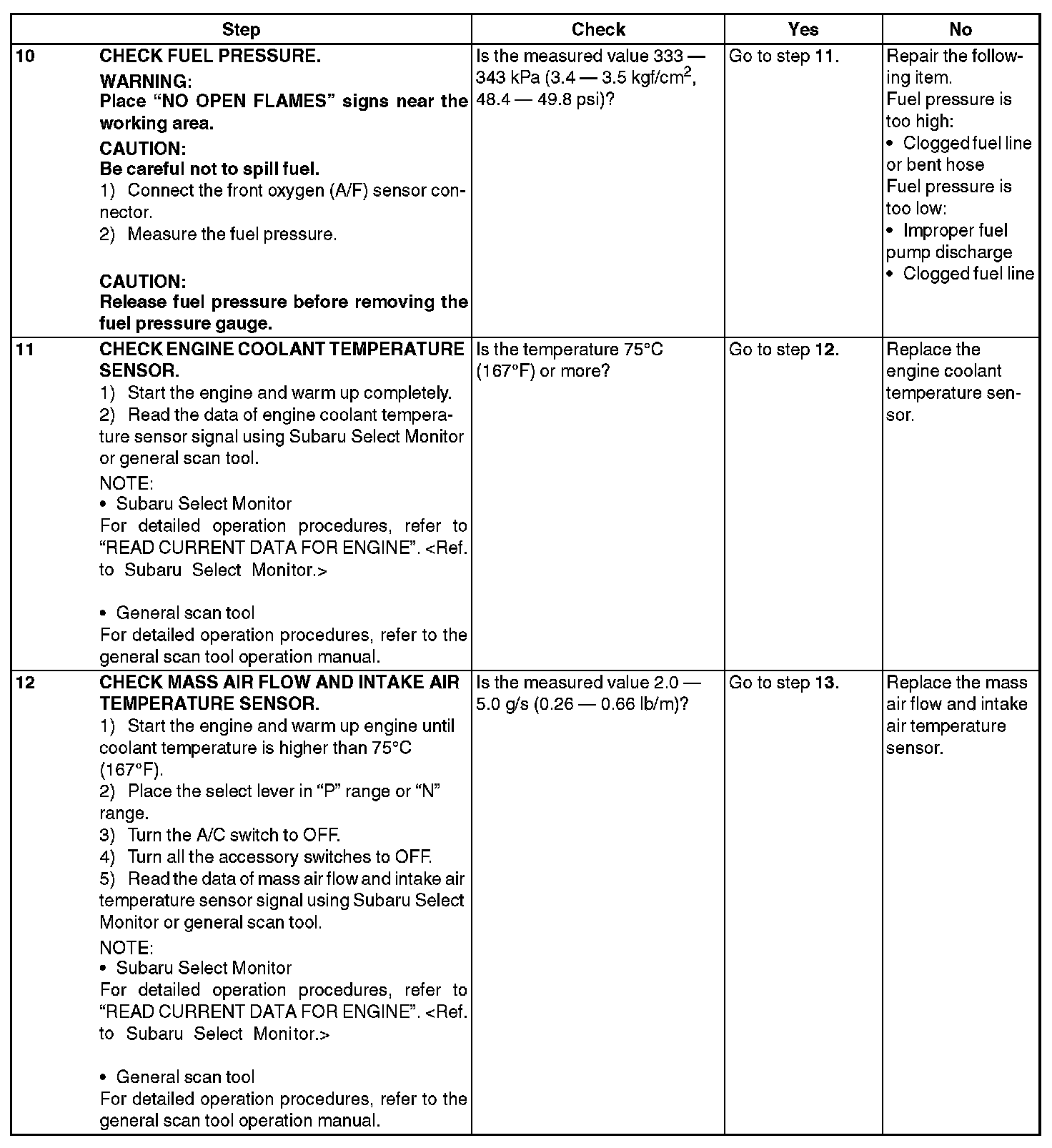

Step 10-12:

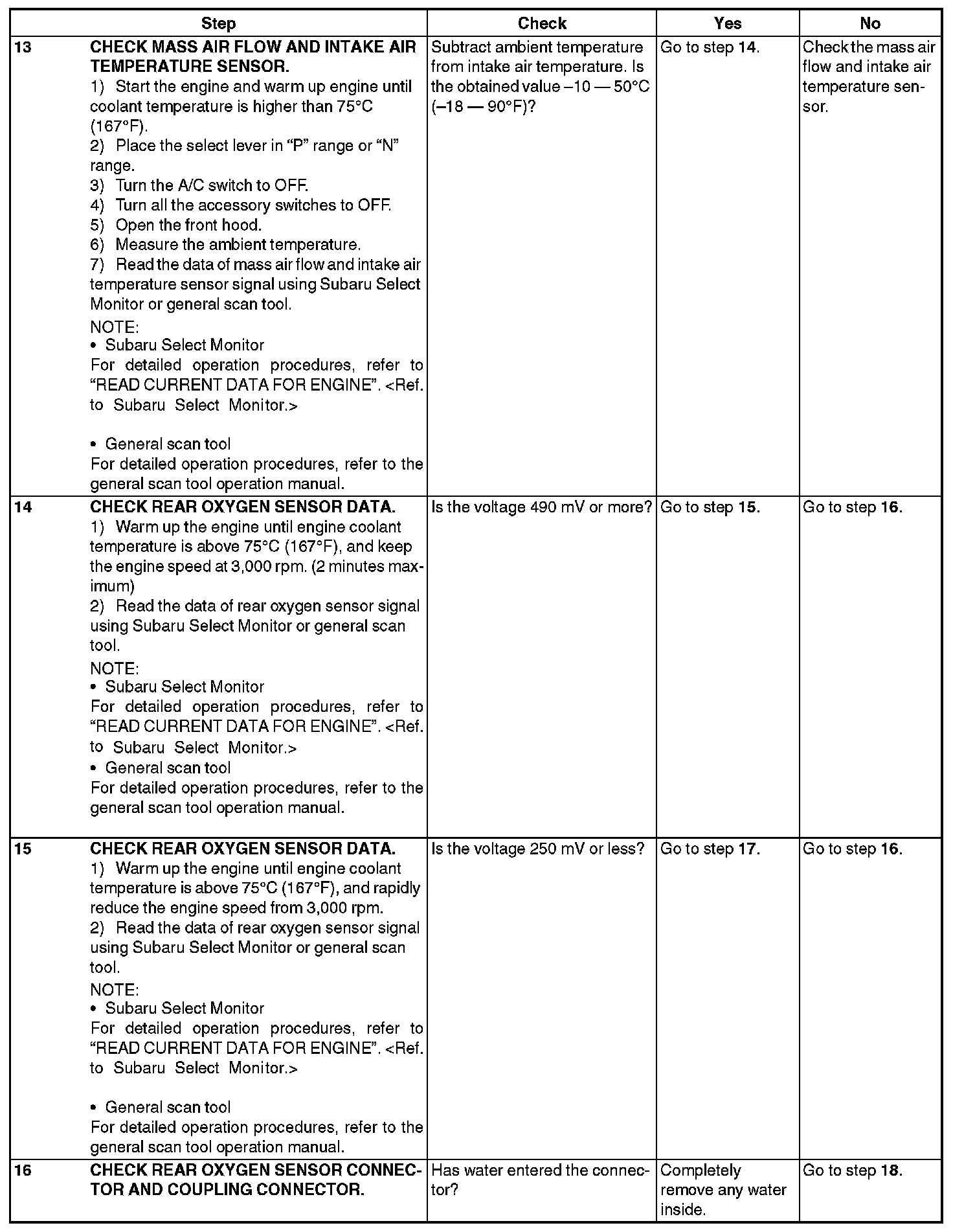

Step 13-16:

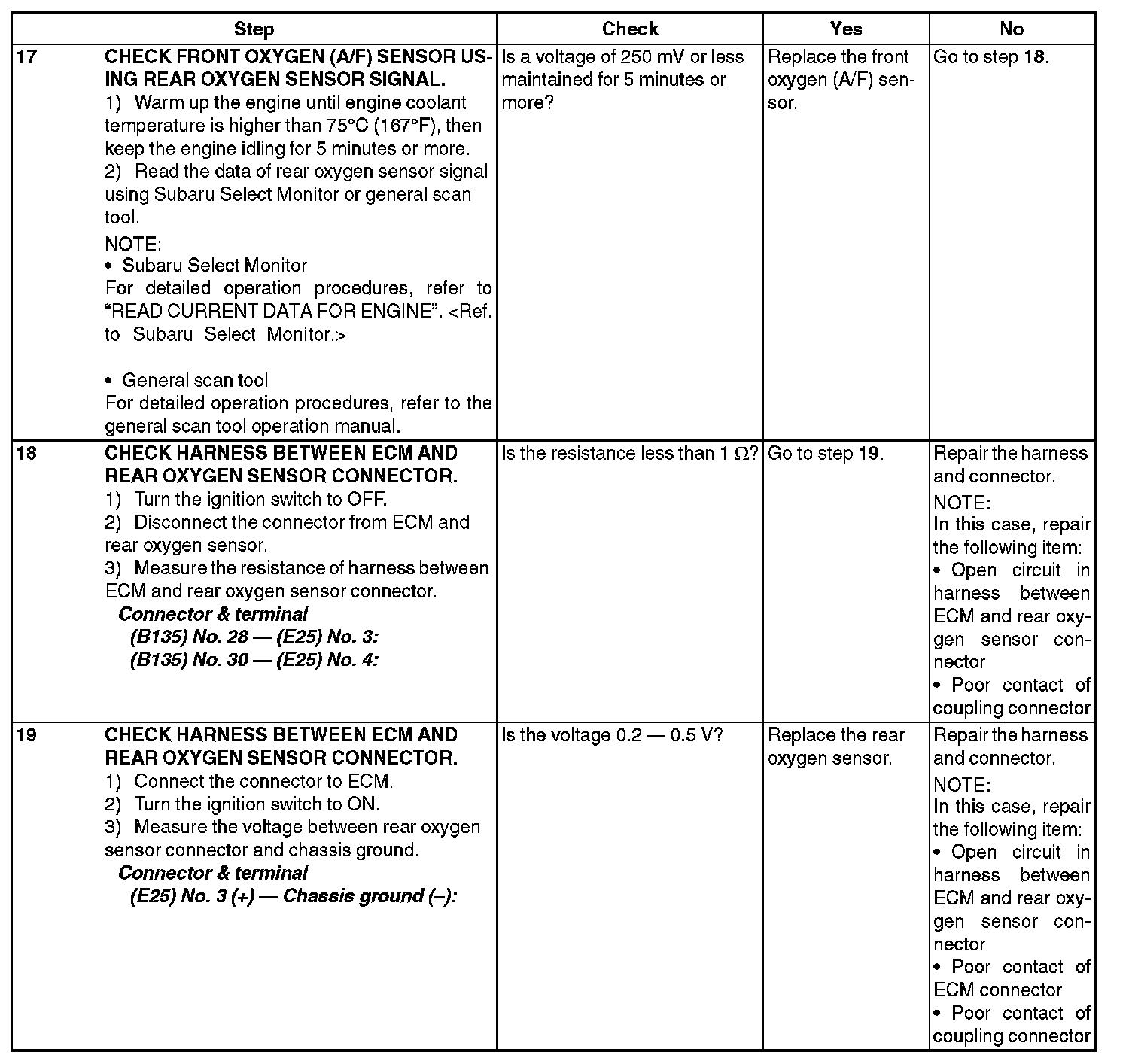

Step 17-19:
