P0724
DTC P0724 BRAKE SWITCH CIRCUIT HIGHDTC DETECTING CONDITION:
Brake switch malfunction, open input signal circuit
TROUBLE SYMPTOM
Gear is not shifted down when climbing a hill.

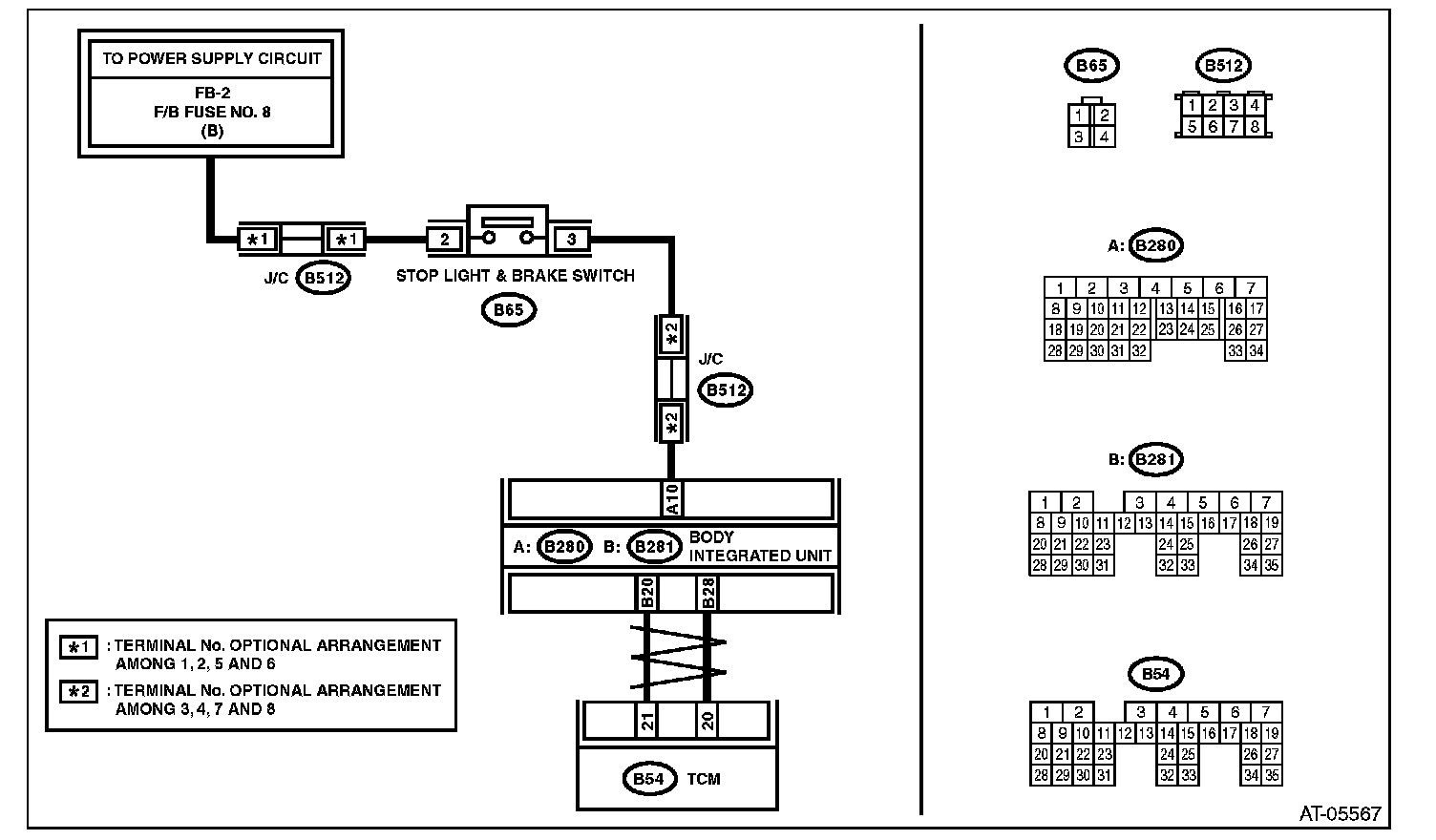

Wiring Diagram:
Step 1-3:

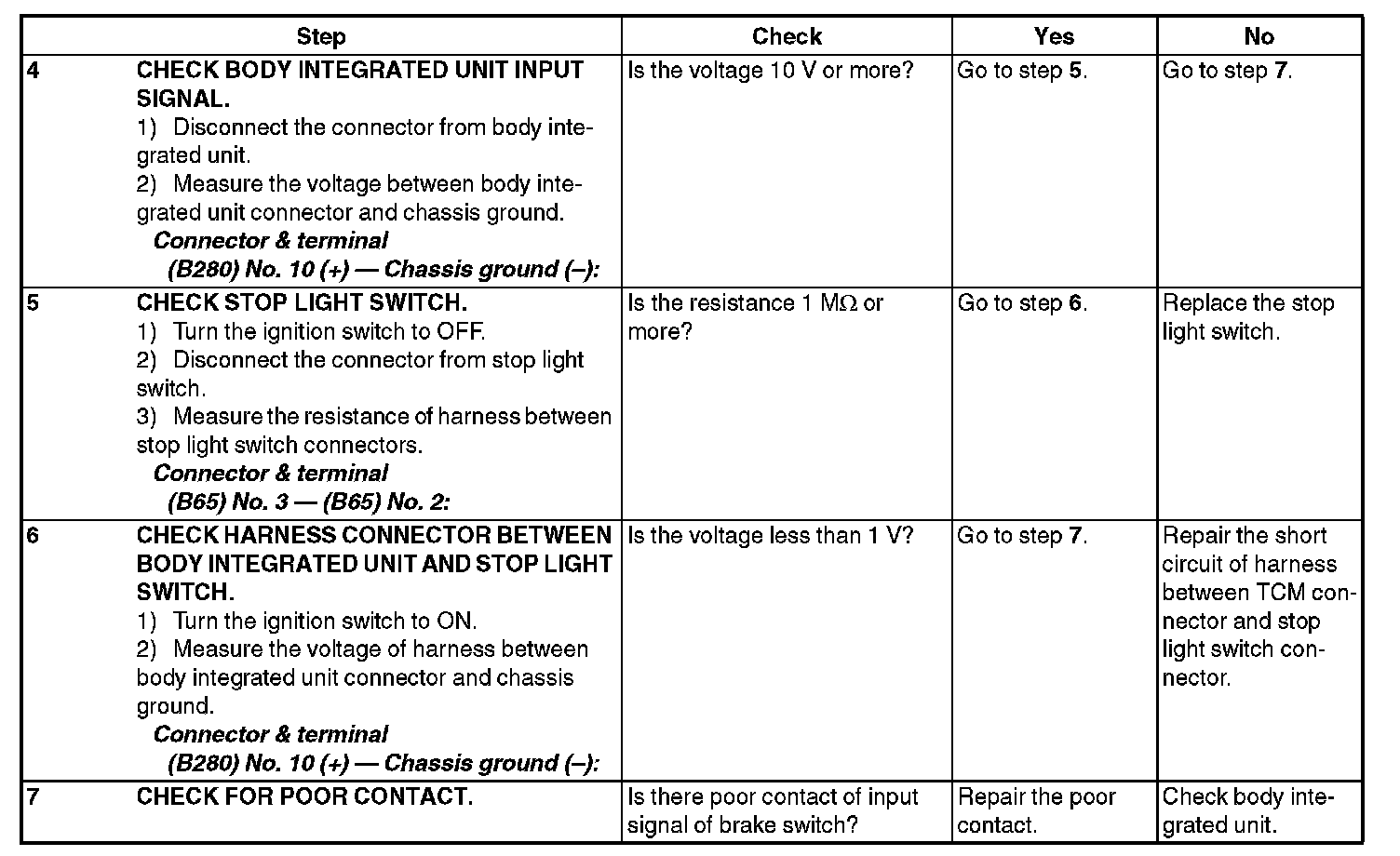

Step 4-7:
DTC DETECTING CONDITION:
Brake switch malfunction, open input signal circuit
TROUBLE SYMPTOM
Gear is not shifted down when climbing a hill.
