Restraint Systems

DTC 16 PASSENGER'S AIRBAG FAILURE

DTC DETECTING CONDITION:
- Airbag main harness circuit is shorted to power supply.
- Airbag module harness (passenger's side) circuit is shorted to power supply.
- Passenger's airbag module is faulty.
- Airbag control module is faulty.

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Caution

NOTE: Prior to starting work, prepare two airbag resistors (98299PA040).

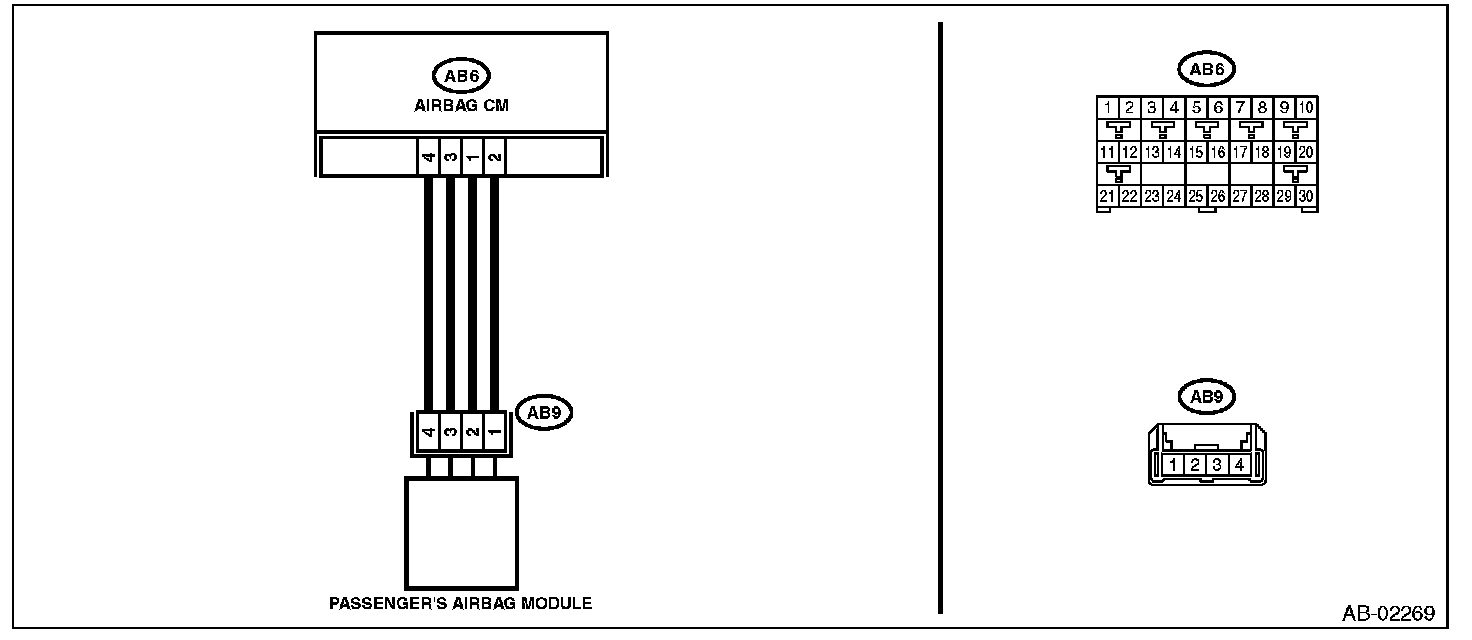

WIRING DIAGRAM:

Wiring Diagram:

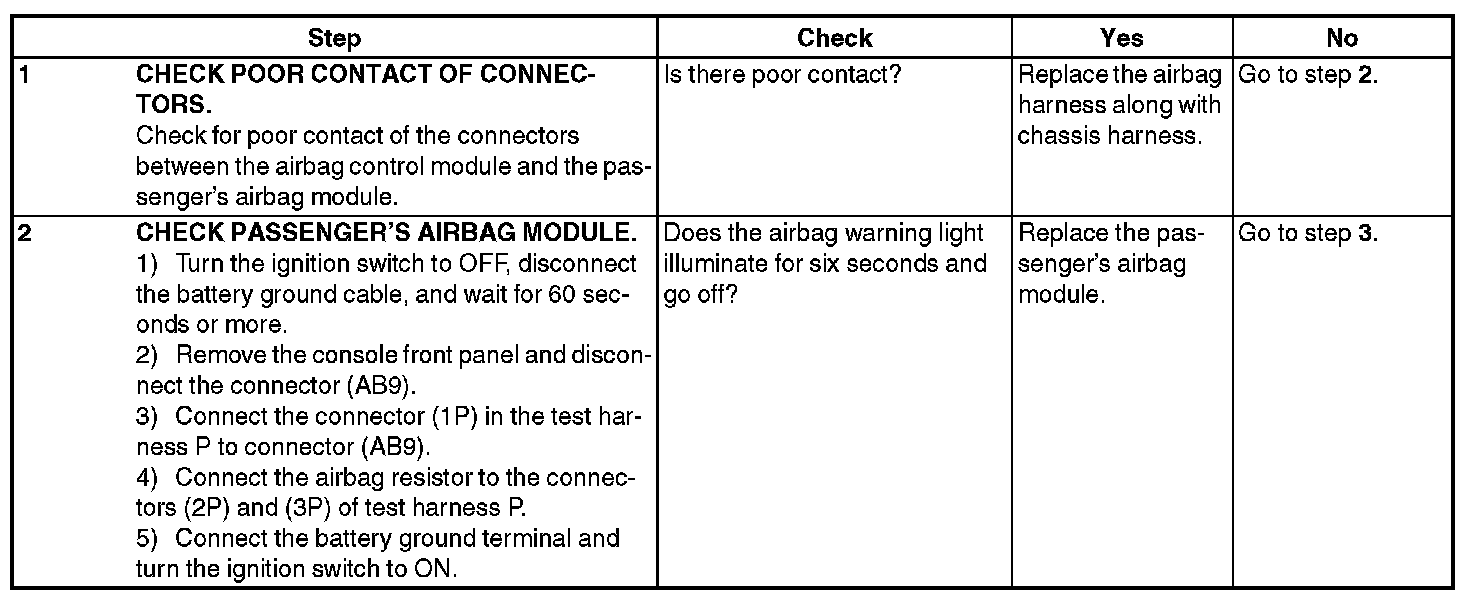

Step 1-2:

Step 3-5:
