B1643

DTC B1643 VARIABLE FLOW CHANGE SOLENOID DUTY CIRCUIT ABNORMAL

DTC DETECTING CONDITION:
- A/C does not operate.
- Refrigerant pressure does not increase or decrease.

TROUBLE SYMPTOM:
Refrigerant pressure cannot be changed.

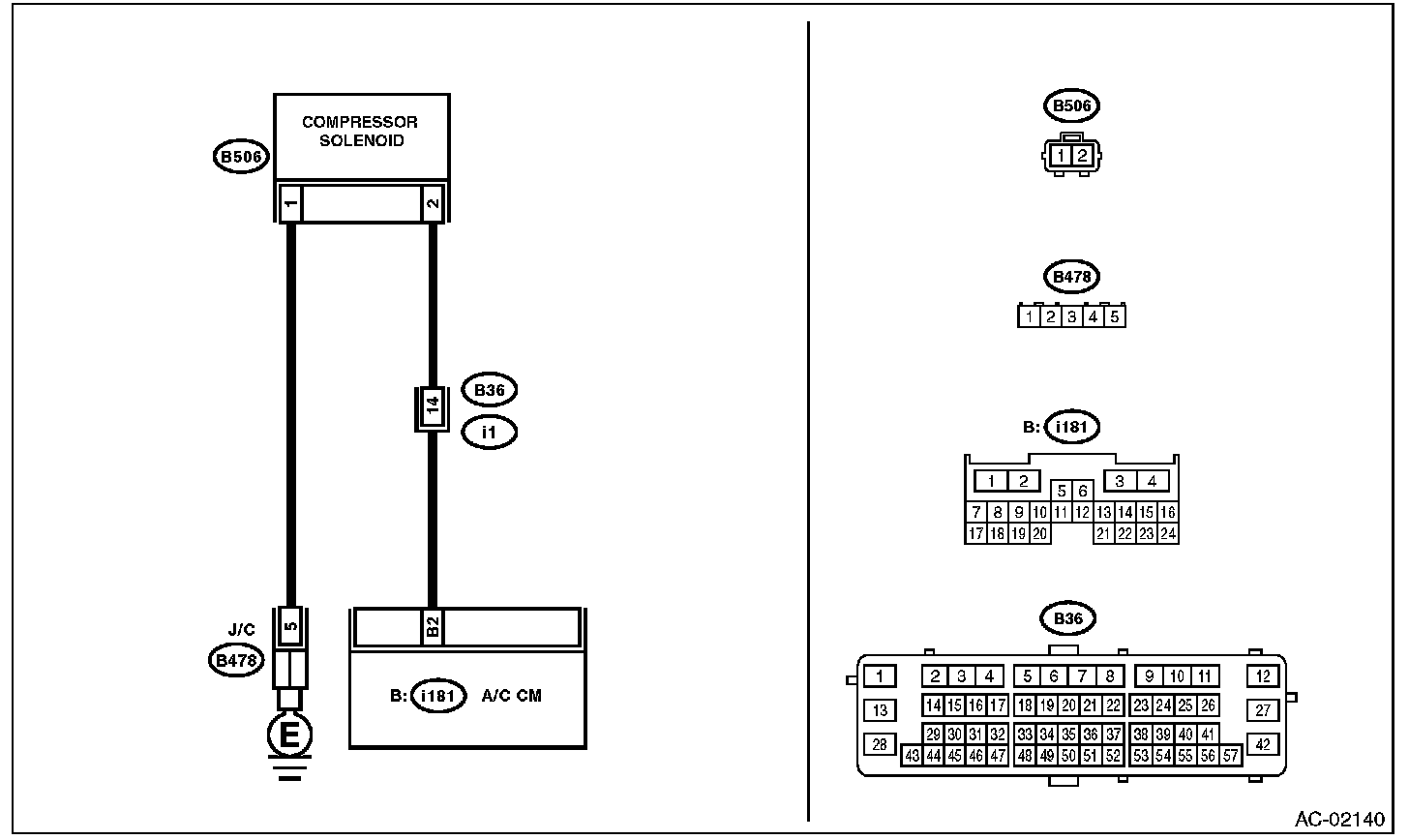

WIRING DIAGRAM:

Wiring Diagram:

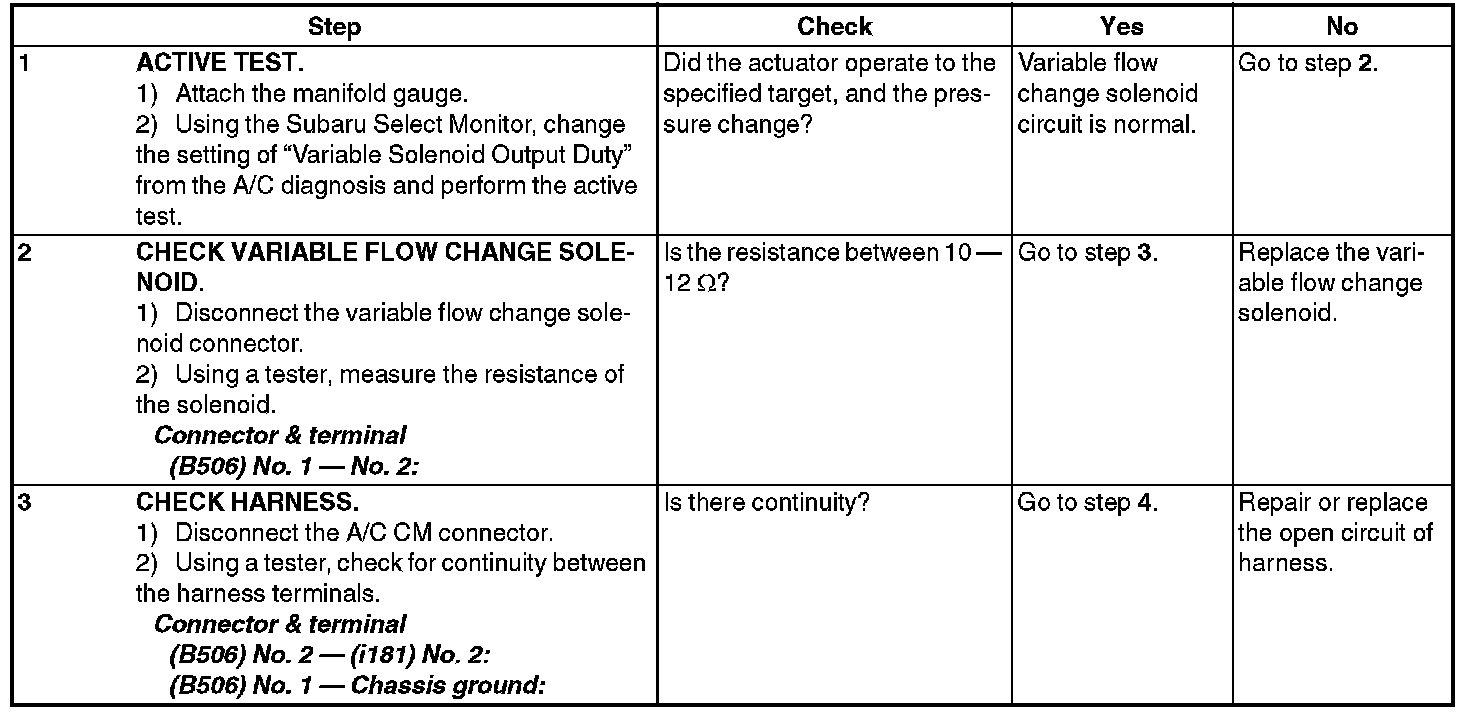

Step 1-3:

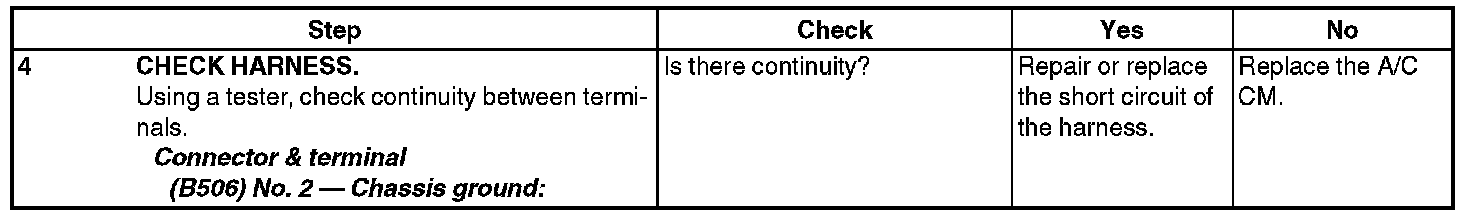

Step 4:
