B1604

DTC B1604 EVAPORATOR SENSOR OPEN

DTC DETECTING CONDITION:
Evaporator sensor circuit is open.

TROUBLE SYMPTOM:
Compressor does not operate.

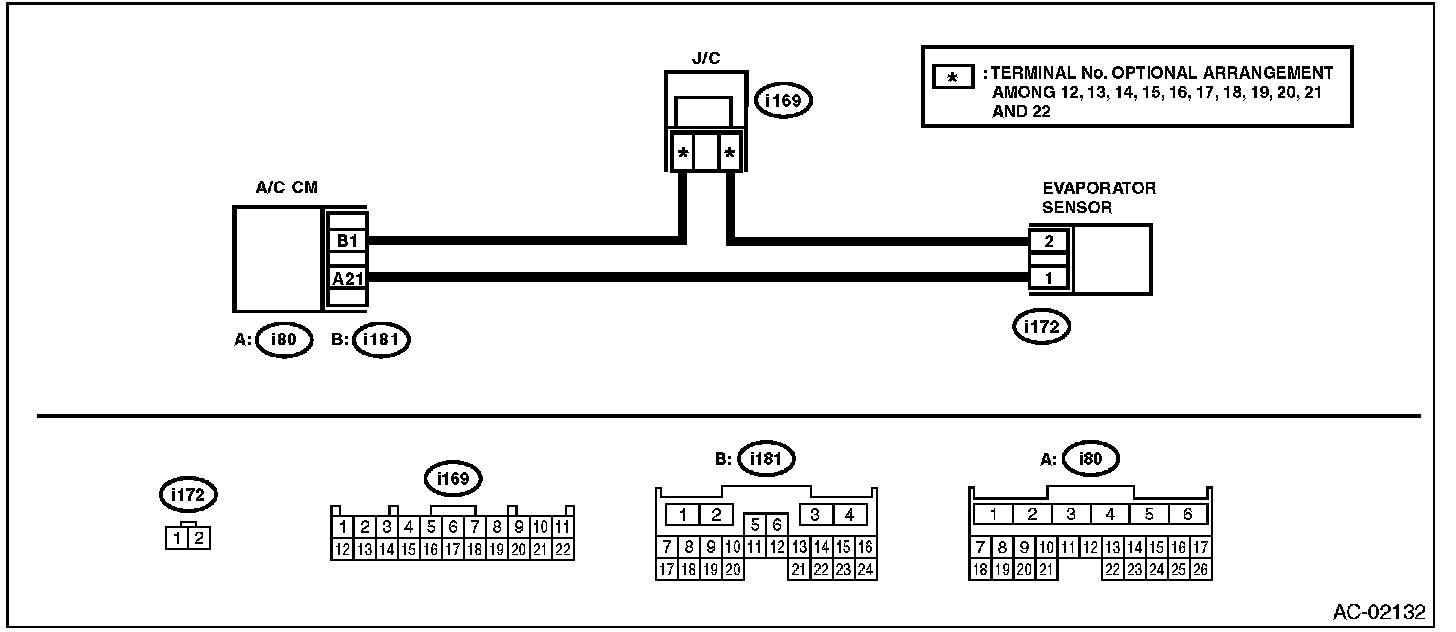

WIRING DIAGRAM:

Wiring Diagram:

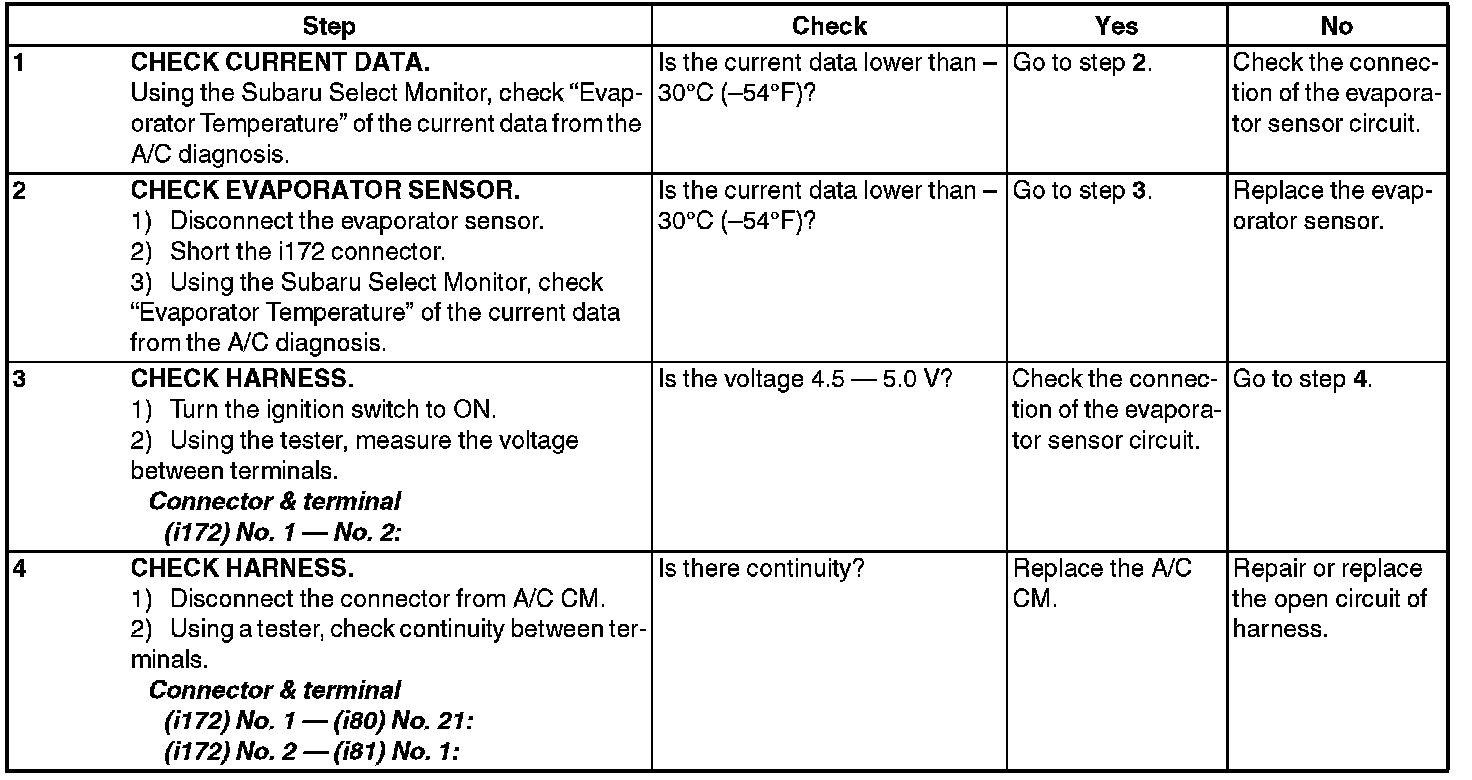

Step 1-4:
