Installation

Propeller Shaft

INSTALLATION

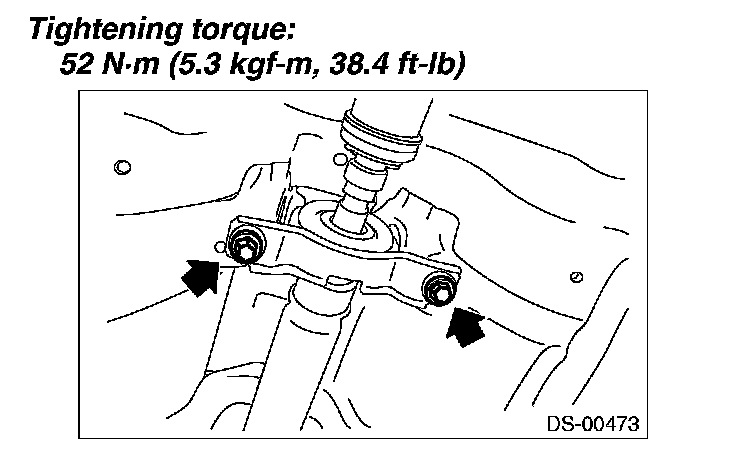

1) Insert the sleeve yoke into the transmission and attach center bearing to body.

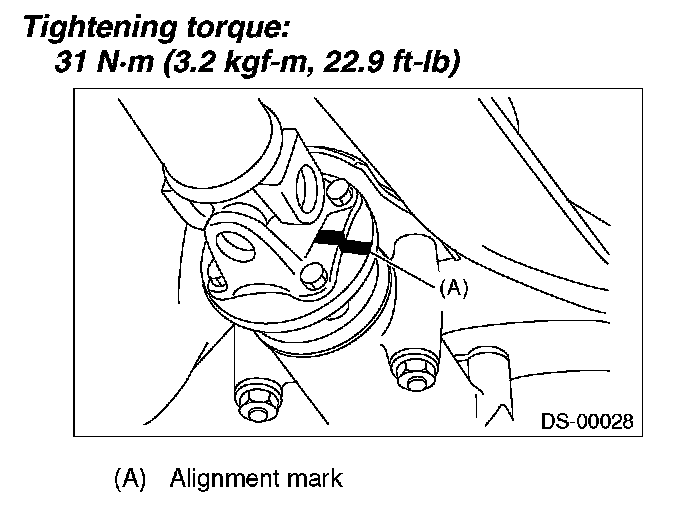

2) Align the alignment marks and connect the flange yoke and rear differential.





3) Install the heat shield cover.
Tightening torque:
18 Nm (1.8 kgf-m, 13.3 ft-lb)
4) Install the center exhaust pipe.
5) Install the rear exhaust pipe and muffler.
6) Lower the vehicle.
