Removal

Rear Hub Unit Bearing

REMOVAL
1) Lift up the vehicle, and then remove the rear wheels.

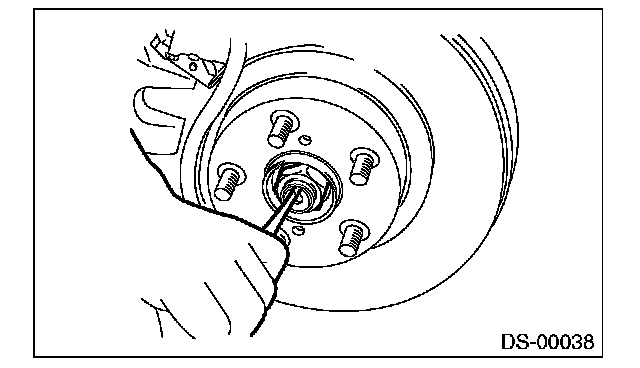

2) Lift the crimped section of axle nut.





3) Remove the axle nut using a socket wrench while depressing the brake pedal.

CAUTION:
Do not loosen the axle nut while the rear axle is loaded. Doing so may damage the hub bearing.

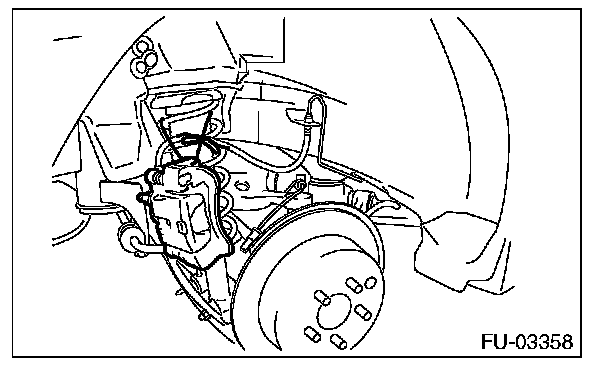

4) Remove the disc brake caliper from the rear housing, and suspend it from the vehicle using ropes.





5) Remove the rear disc rotor.

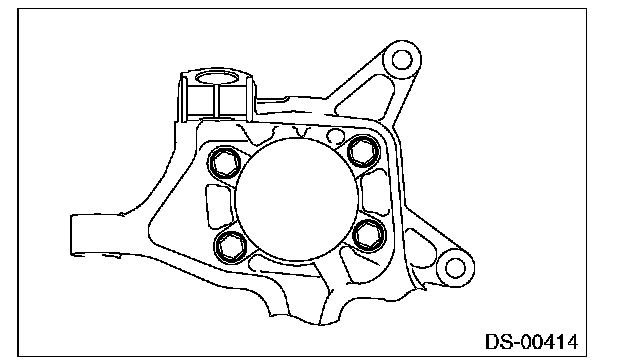

6) Remove four bolts from the rear housing.

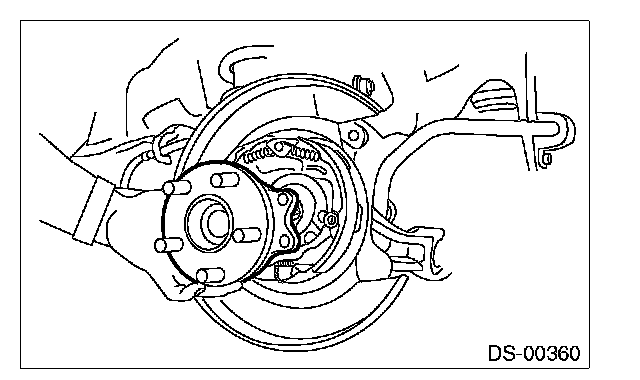

7) Remove the rear hub unit bearing.

CAUTION:

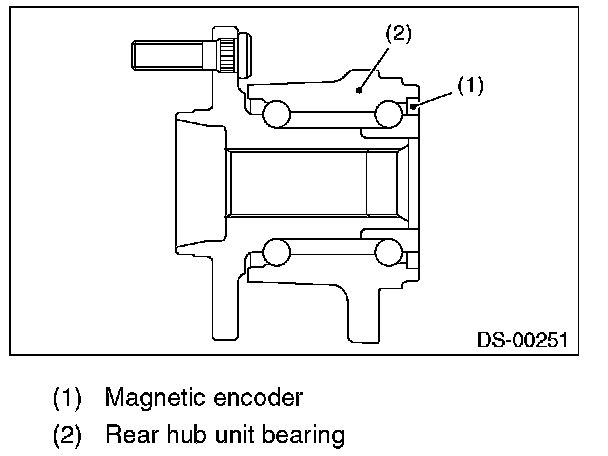

^ Be careful not to damage the magnetic encoder.
^ Do not get closer the tool which charged magnetism to magnetic encoder.

NOTE:

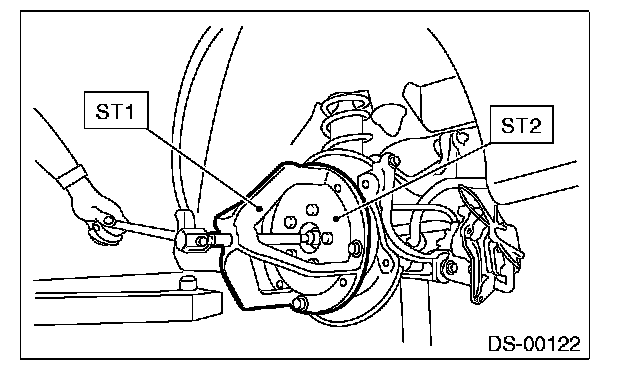

If it is hard to remove, use the ST.

ST1 926470000 AXLE SHAFT PULLER
ST2 28099PA110 AXLE SHAFT PULLER PLATE
