Assembly

Front Hub Unit Bearing

ASSEMBLY

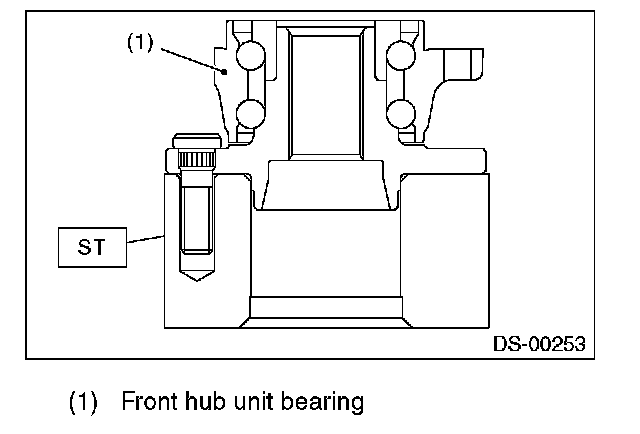

1) Attach the hub to the ST securely.
ST 927080000 HUB STAND





2) Using a press, press the new hub bolts until their seating surfaces contact the hub.

NOTE:
Use the 12 mm (0.47 in) dia. holes in the HUB STAND to prevent bolts from tilting.
