Removal

Front Strut

REMOVAL
1) Lift up the vehicle, and then remove the front wheels.
2) Place an alignment mark on the camber adjusting bolt and strut.

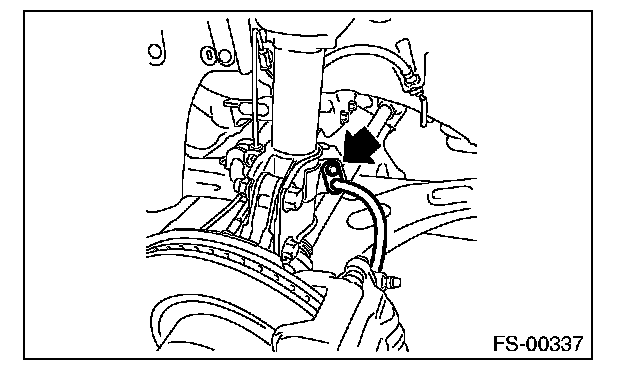

3) Remove the brake hose bracket.

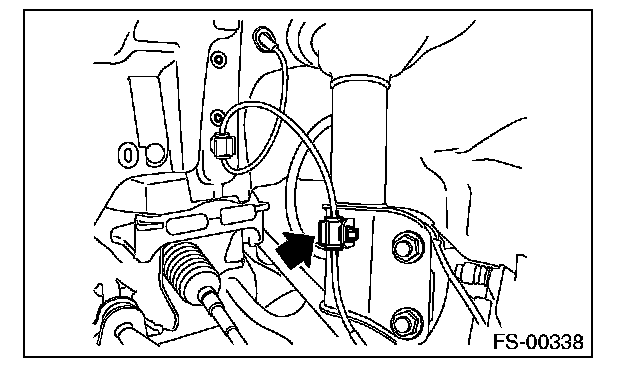

4) Remove the ABS wheel speed sensor harness.





5) Remove the two bolts securing the housing to the strut.

NOTE:
While holding the head of the adjusting bolt, loosen the self-locking nut.

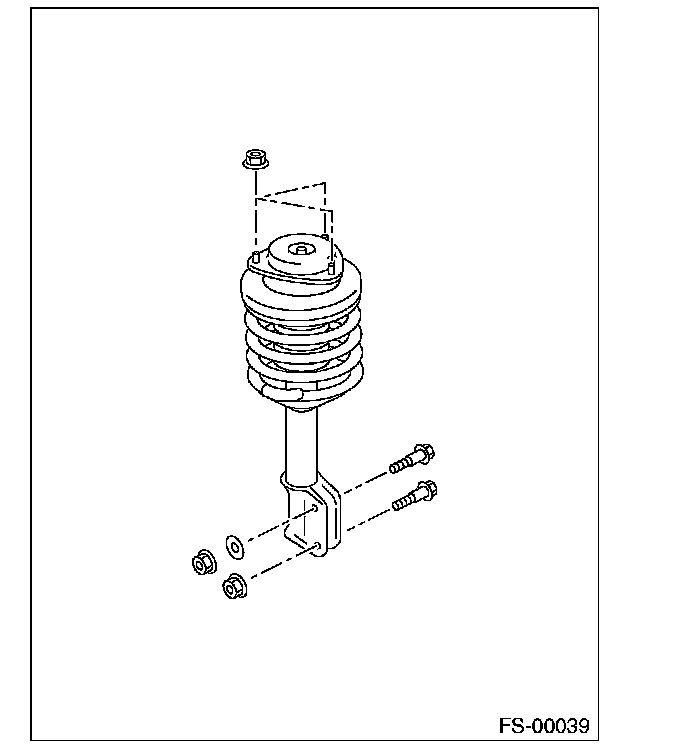

6) Remove the three nuts securing strut mount to body.
