Installation

Rear Stabilizer

INSTALLATION

CAUTION:
^ Be sure to use anew flange nut and self-locking nut.
^ Always tighten the bushing in the state where the vehicle is at curb weight and the wheels are in full contact with the ground.

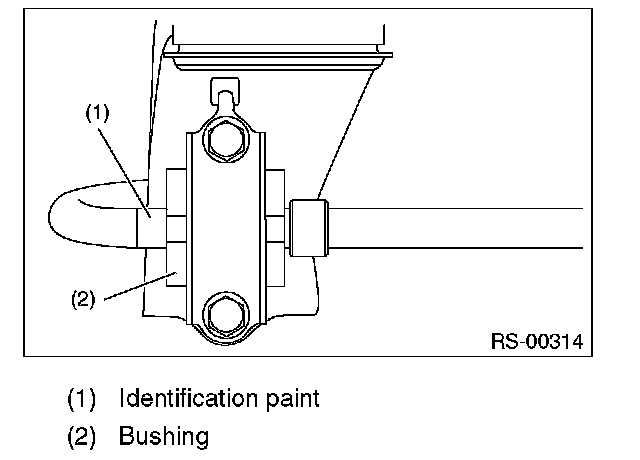

^ Align the paint mark end of stabilizer to the end of bushing when installing.





Install in the reverse order of removal.

Tightening torque:
Stabilizer link
33 Nm (3.4 kgf-m, 24.3 ft-lb)
Stabilizer clamp
38 Nm (3.9 kgf-m, 28 ft-lb)
