Removal

Front Stabilizer

REMOVAL
1) Lift up the vehicle, and then remove the front wheels.
2) Remove the front under cover.
3) Remove the exhaust center pipe. (turbo model)

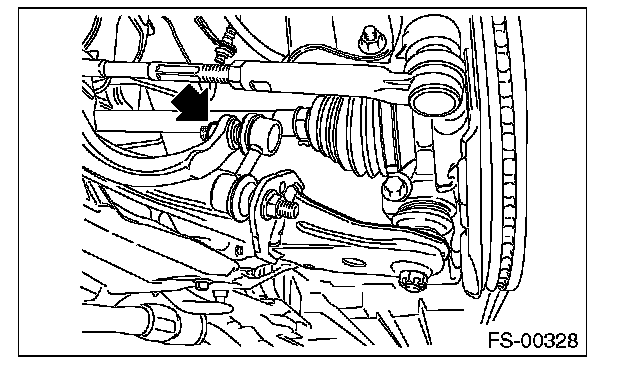

4) Remove the stabilizer link.

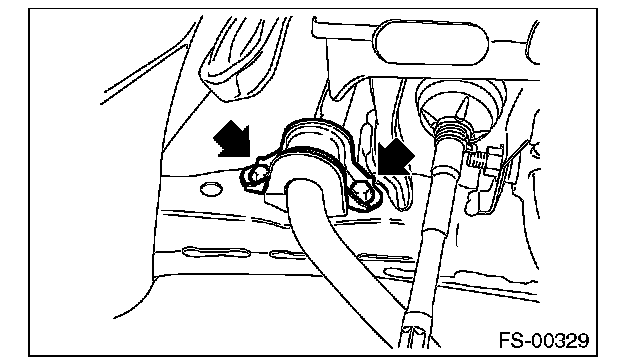

5) Remove the stabilizer bracket.

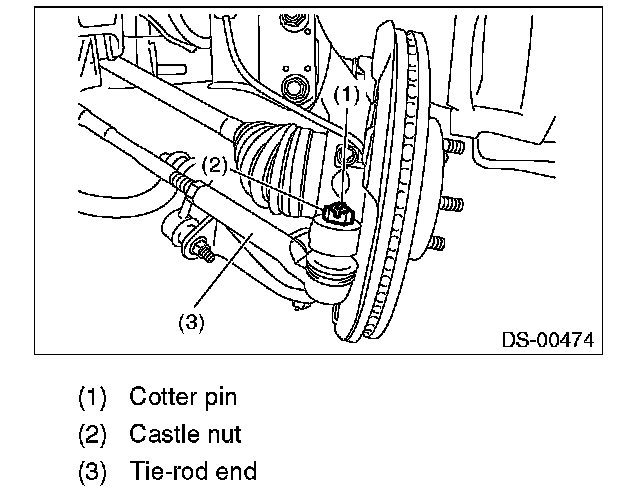

6) Disconnect the tie-rod end.





7) Hang the engine and replace the front cushion mount with ST. (turbo model)
ST 41099AJ000 SPECIAL TOOL H4

NOTE:
For turbo model, it is required to secure space for operation to hang the engine and remove the stabilizer.

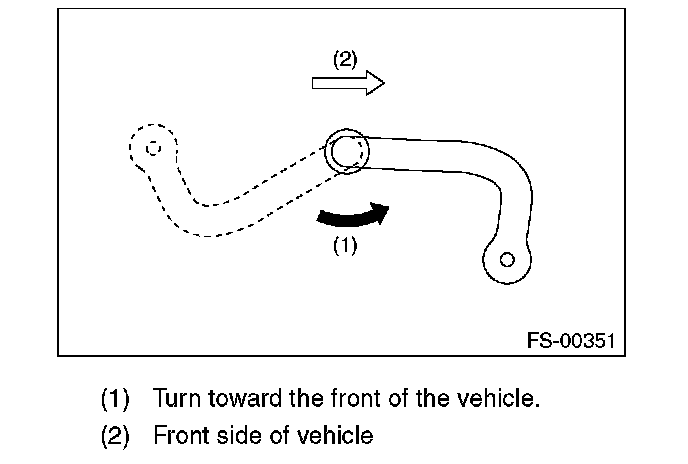

8) Turn the front stabilizer by approximately 180 degrees toward the front of the vehicle and pull out the front stabilizer from the right side of the vehicle.
