FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Subaru
>>
2010
>>
Legacy F4-2.5L DOHC Turbo
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Steering Shaft Coupler
>>
Service and Repair
>>
Inspection
Inspection
Universal Joint
INSPECTION
1)
Check for wear, damage or any other faults. Replace as necessary
2)

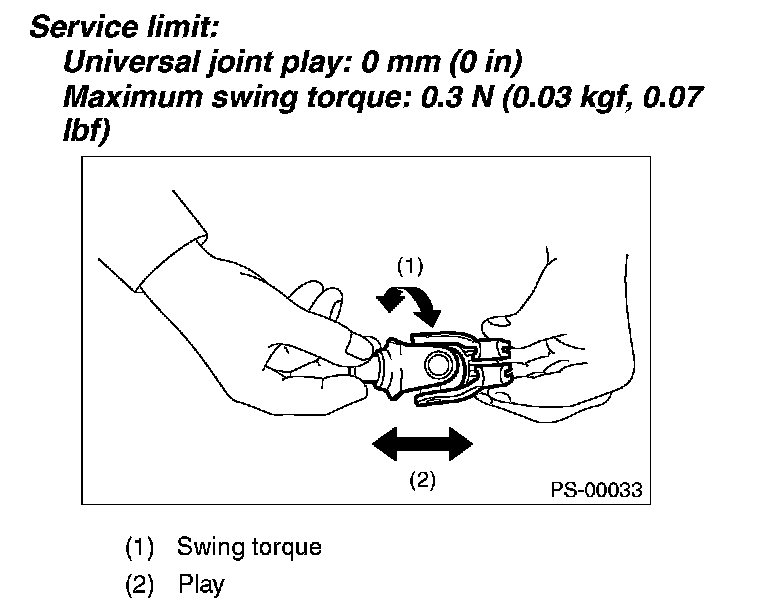

Measure the swing torque of universal joint.
