Removal

Steering Gearbox

REMOVAL
1) Remove the cradle.

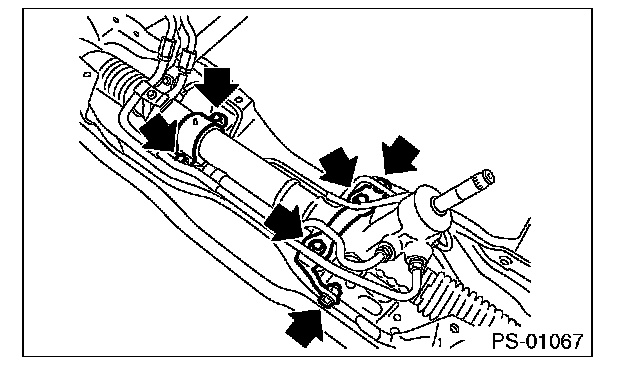

2) Remove the bolt, and then remove the left and right main mounting bracket.





3) Remove the bolts and remove the steering gearbox.

CAUTION:
Be careful not to damage the steering boot.
