Steering Column
DISASSEMBLY
1)

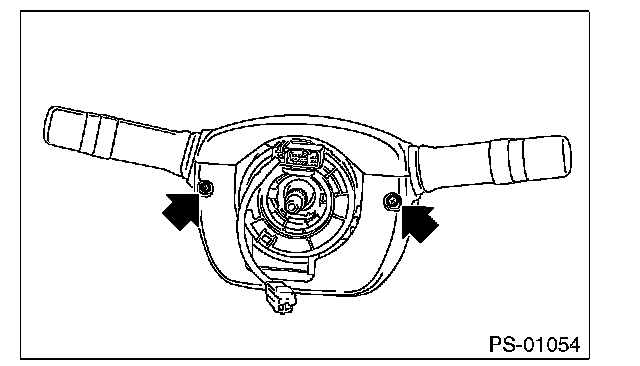

Remove the screws and remove the column cover.
2)

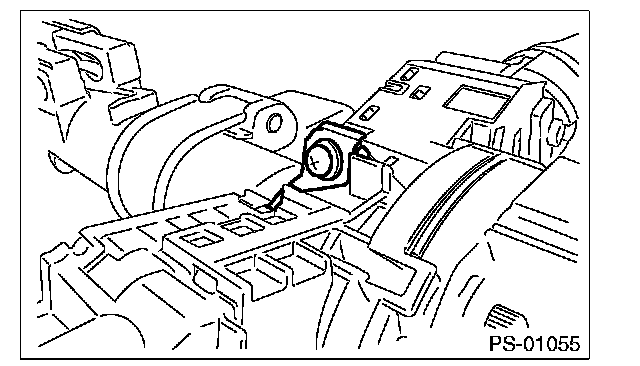

Remove the screw and remove the combination switch.
