Installation

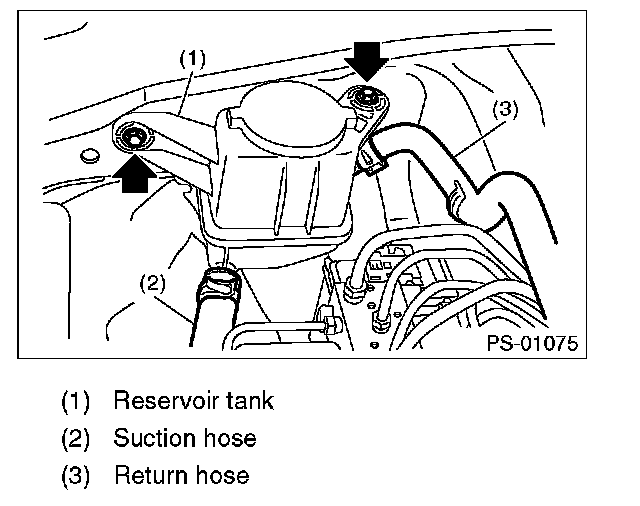

Reservoir TankINSTALLATION
1) Install the reservoir tank to the body.
Tightening torque:
13 Nm (1.3 kgf-m, 9.6 ft-lb)
2) Connect the hose to the reservoir tank.
3) Replenish power steering fluid up to the specified level.
INSTALLATION
1) Install the reservoir tank to the body.
Tightening torque:
13 Nm (1.3 kgf-m, 9.6 ft-lb)
2) Connect the hose to the reservoir tank.
3) Replenish power steering fluid up to the specified level.
