Rear Drive Shaft Dimensions
REAR DRIVE SHAFT ASSEMBLY

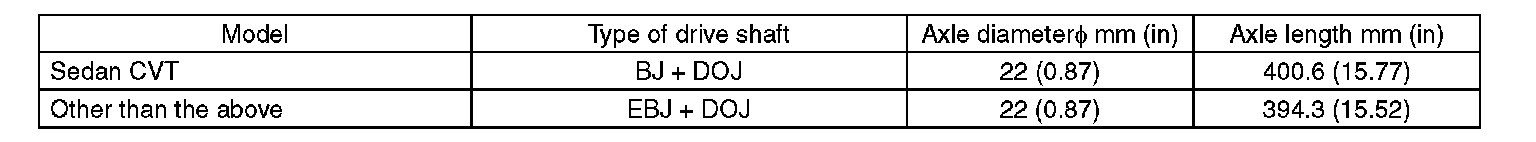

Rear Drive Shaft Dimensions (Part 1):

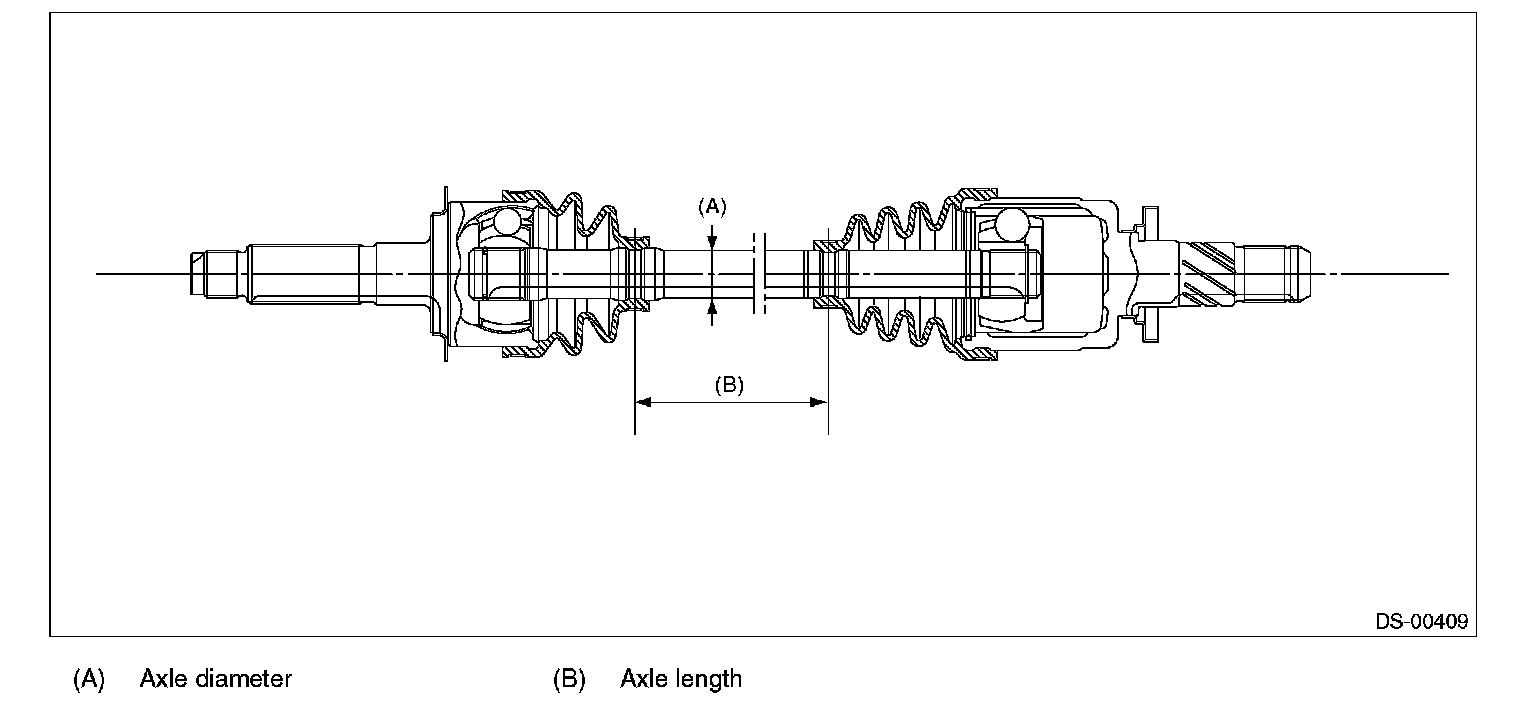

Rear Drive Shaft Dimensions (Part 2):
