Removal

BACK-UP LIGHT SWITCH & NEUTRAL POSITION SWITCH

REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the collector cover.
3) Remove the air intake boot assembly. (non-turbo model)
4) Remove the intercooler. (turbo model)
5) Disconnect the connector of back-up light switch and neutral position switch.

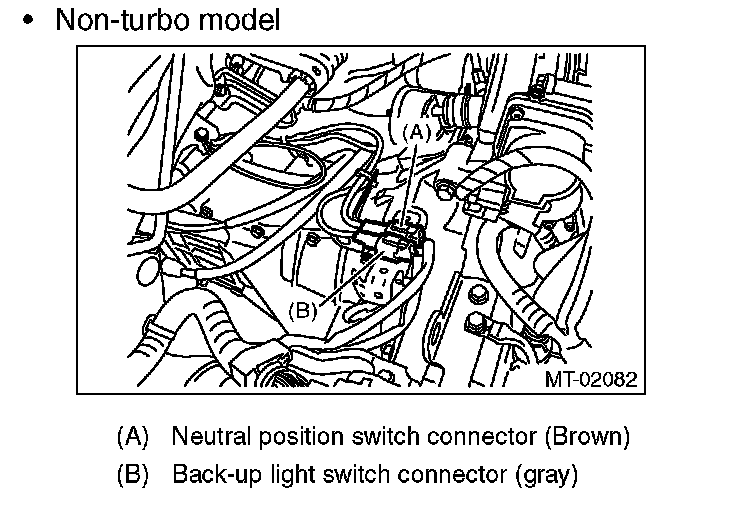

^ Non-turbo model

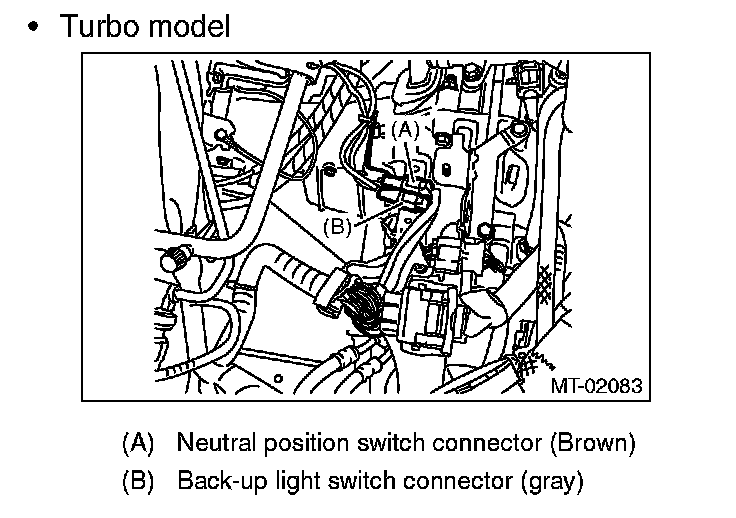

^ Turbo model





6) Lift up the vehicle.

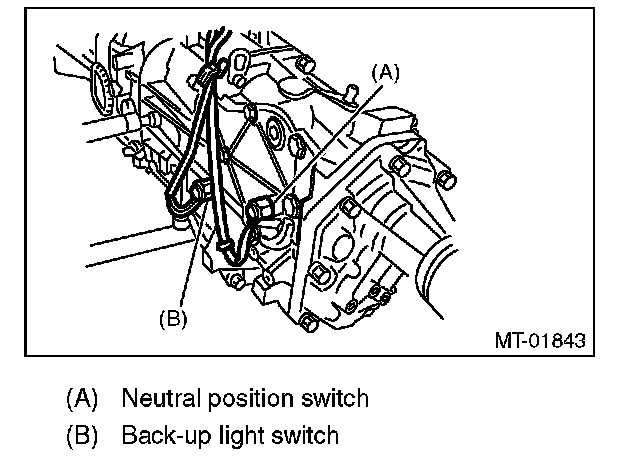

7) Remove the back-up light switch and neutral position switch together with harness.
