Oil Level Sensor: Testing and Inspection

INSPECTION

INSPECTION WHILE OIL LEVEL SWITCH WARNING LIGHT IS ON

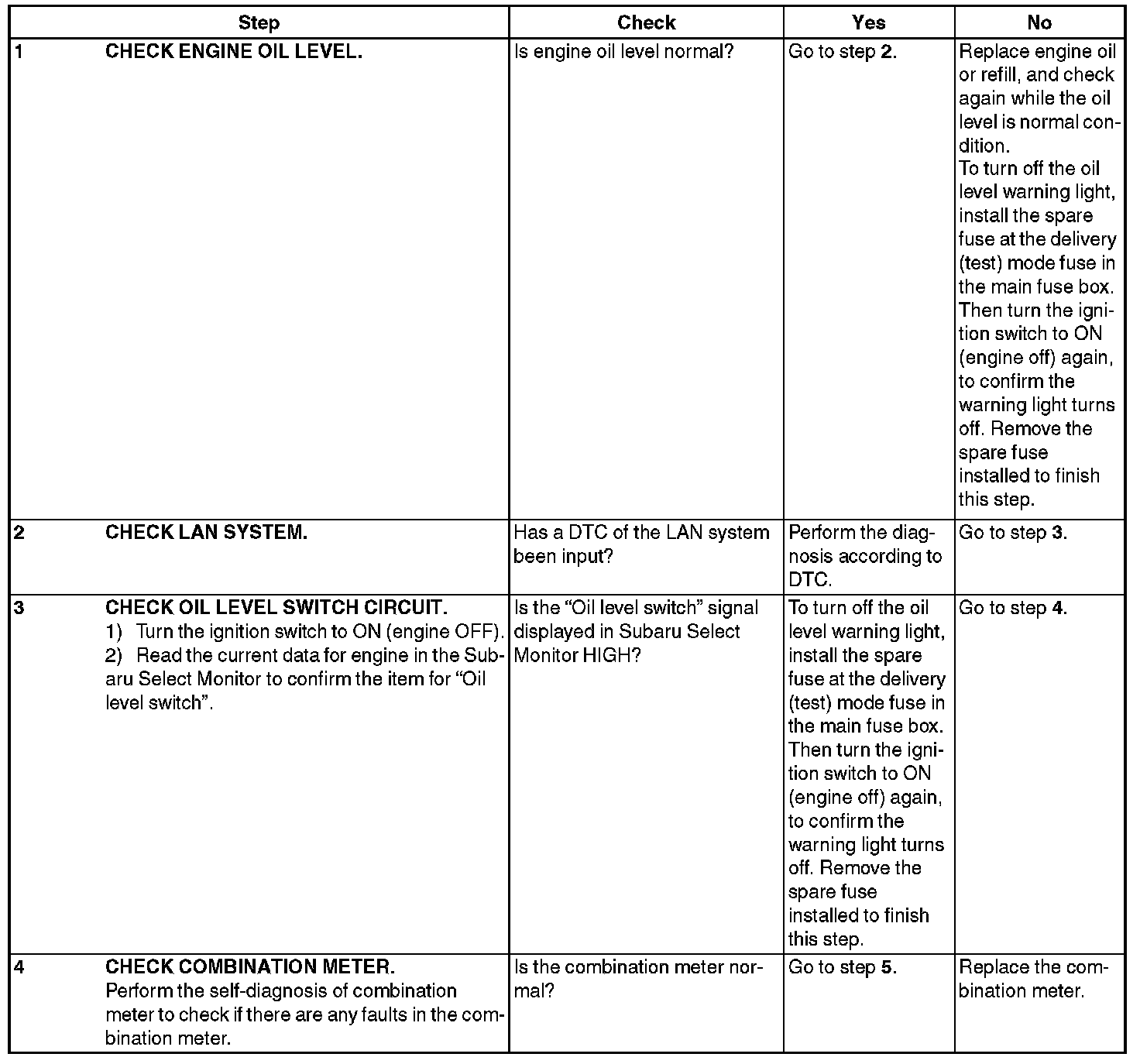

Step 1-4:

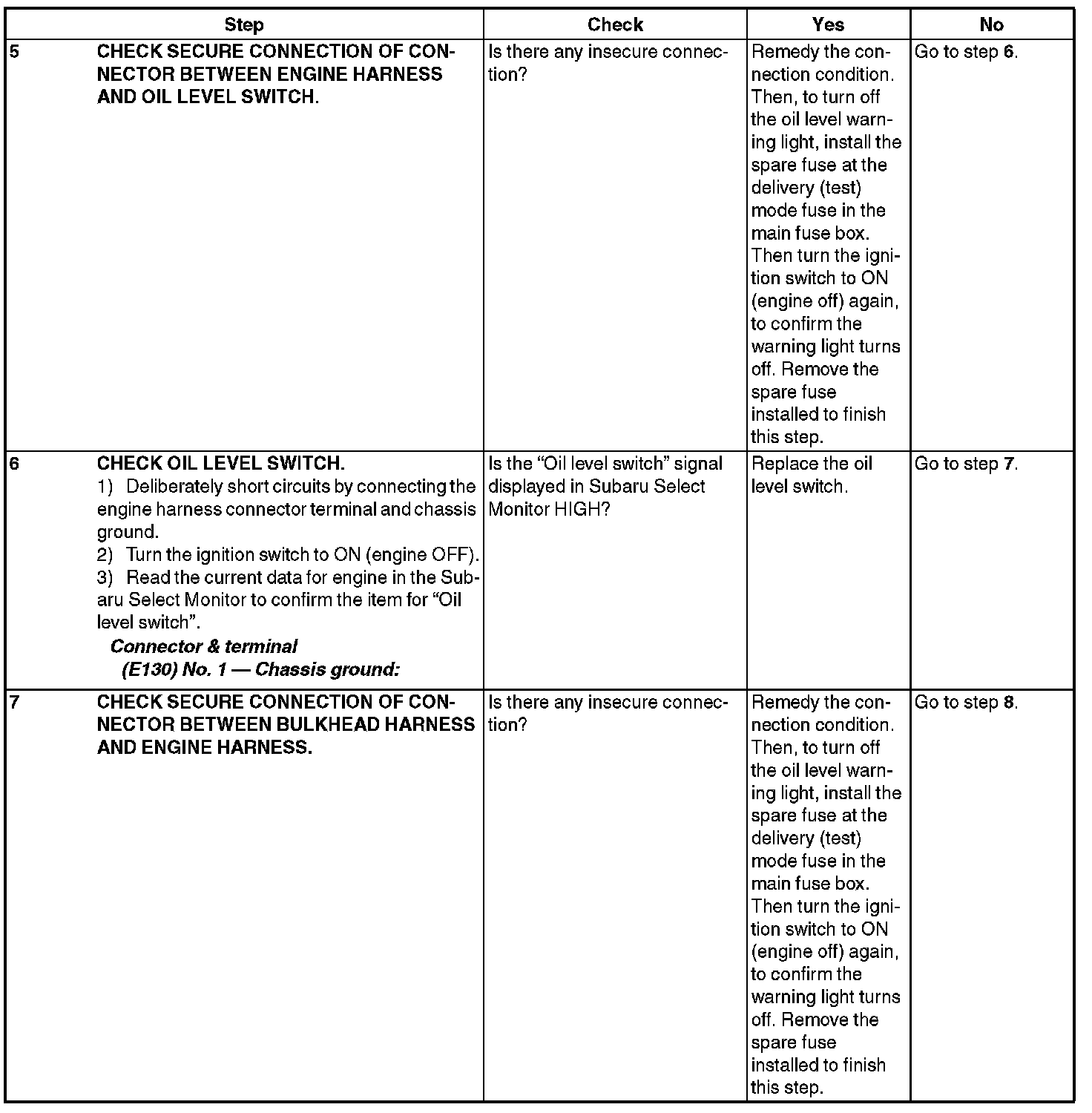

Step 5-7:

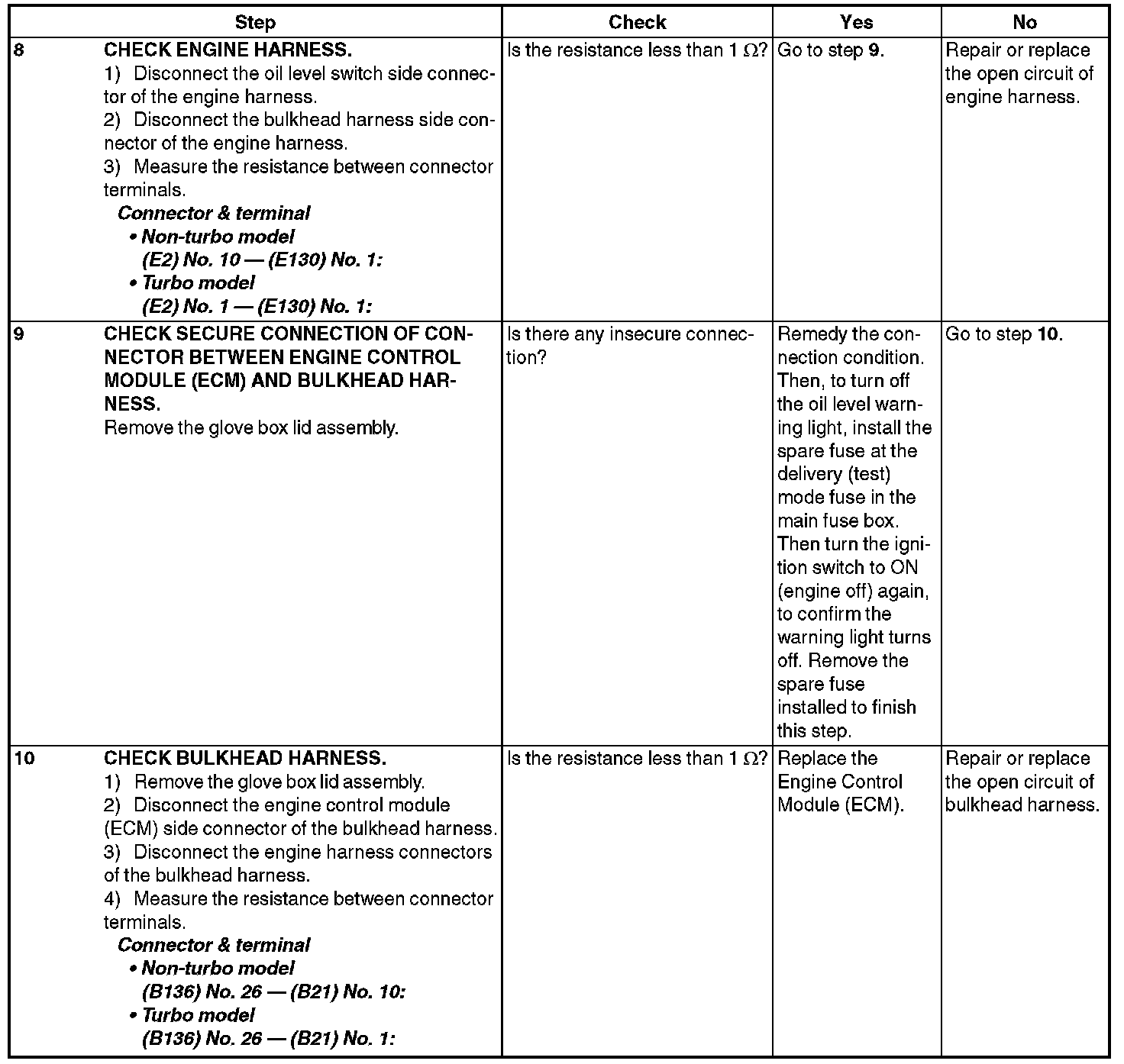

Step 8-10:

OTHER INSPECTIONS
1) Check that the oil level switch does not have deformation, cracks, or damage.
2) Check the oil level switch installation part for oil leakage and oil seepage.
