Fuel Pump Control Unit: Service and Repair

Fuel Pump Control Unit

REMOVAL

1. Disconnect the ground cable from battery.






2. Remove the trunk trim panel assembly-side RH.

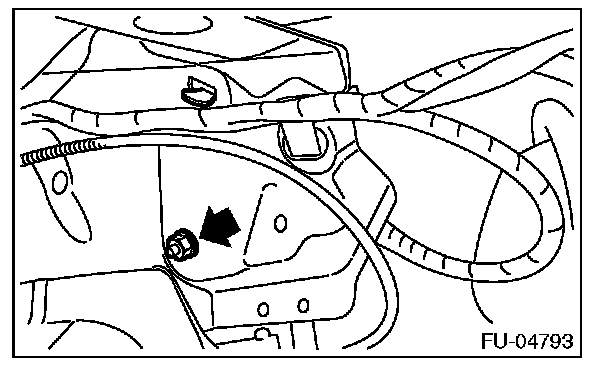

3. Remove the fuel pump control unit.

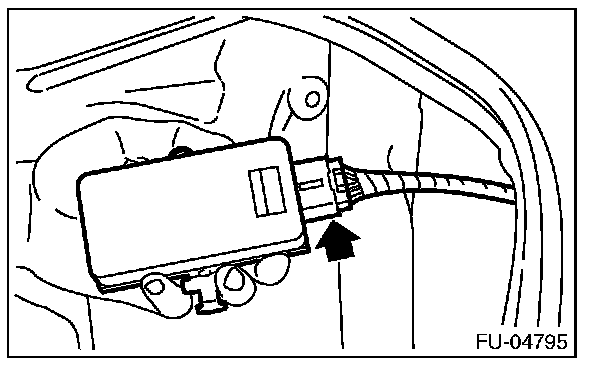

4. Disconnect the connector from fuel pump control unit.






INSTALLATION

Install in the reverse order of removal.

Tightening Torque: 5 N.m (0.5 kgf.m, 3.7 ft.lb)
