Overhaul

Turbocharger

DISASSEMBLY

1. Remove the oil inlet pipe from the turbocharger.






2. Remove the water pipe from the turbocharger.






3. Remove the water pipe connector from the turbocharger.






4. Remove the exhaust cover from the turbocharger.






5. Remove the exhaust stay from the turbocharger.






ASSEMBLY

1. Install the exhaust stay to the turbocharger.






2. Install the exhaust cover to the turbocharger.

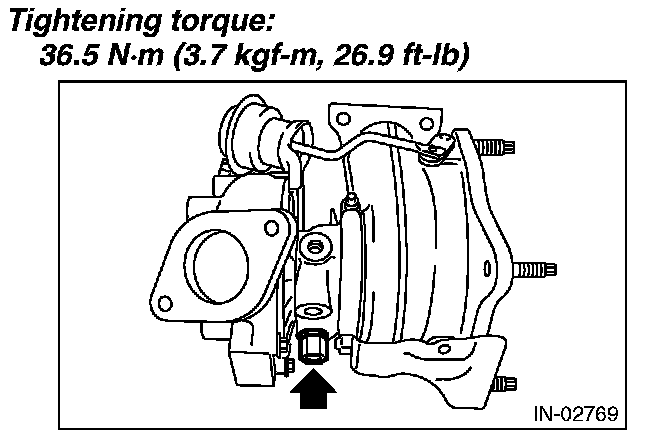

3. Install the water pipe connector to the turbo-charger.

NOTE: Use a new gasket.






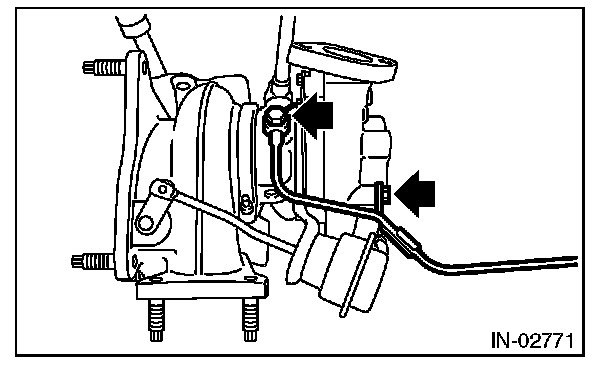

4. Install the water pipe to the turbocharger.

NOTE: Use a new gasket.






5. Install the oil inlet pipe to the turbocharger.

NOTE: Use a new gasket.
