Intake Duct

Intake Duct

DISASSEMBLY

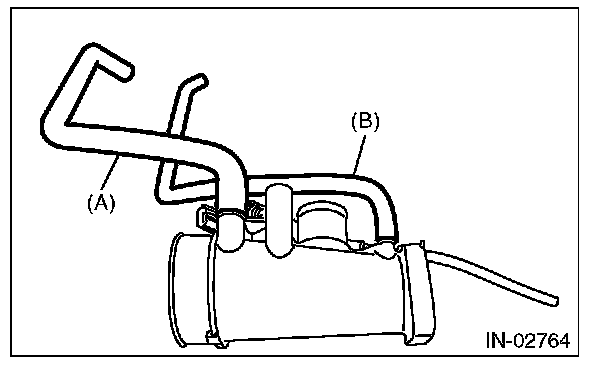

1. Remove the vacuum hose (A) and vacuum hose (B) from intake duct.

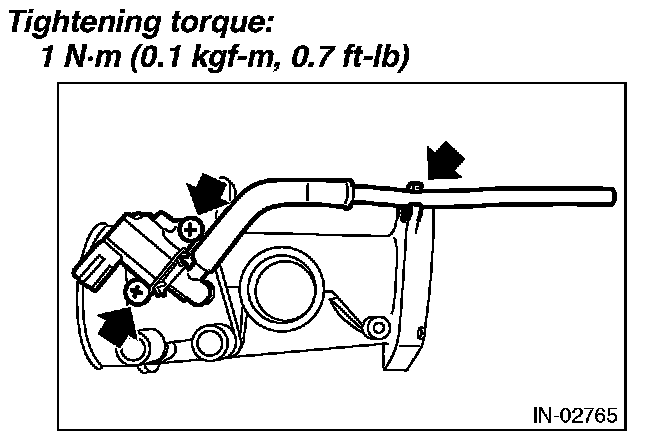

2. Remove the wastegate control solenoid valve and air control hose from the intake duct.






ASSEMBLY

1. Install the wastegate control solenoid valve and air control hose to the intake duct.

NOTE: Use new O-rings.






2. Install the vacuum hose (A) and vacuum hose (B) from intake duct.
