Air Intake Boot

Air Intake Boot

DISASSEMBLY

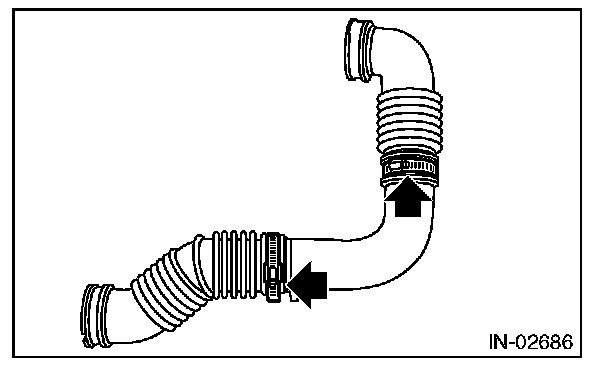

Remove the air intake boot from the turbo duct.






ASSEMBLY

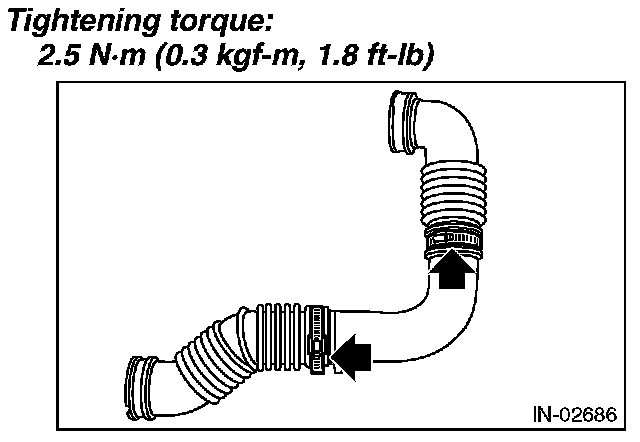

Install the air intake boot to the turbo duct.
