Overhaul

Fuel Filler Pipe

DISASSEMBLY

1. Remove the shut valve from the fuel filler pipe.

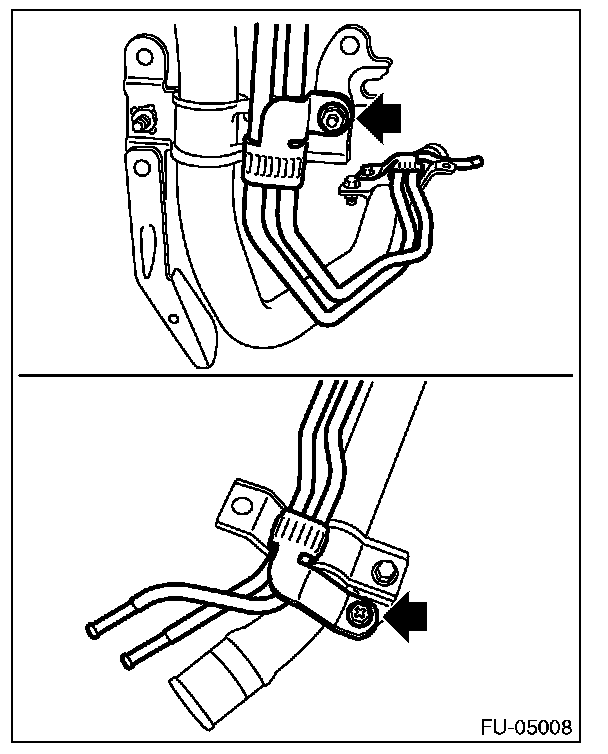

2. Remove the evaporation pipe from the fuel filler pipe.

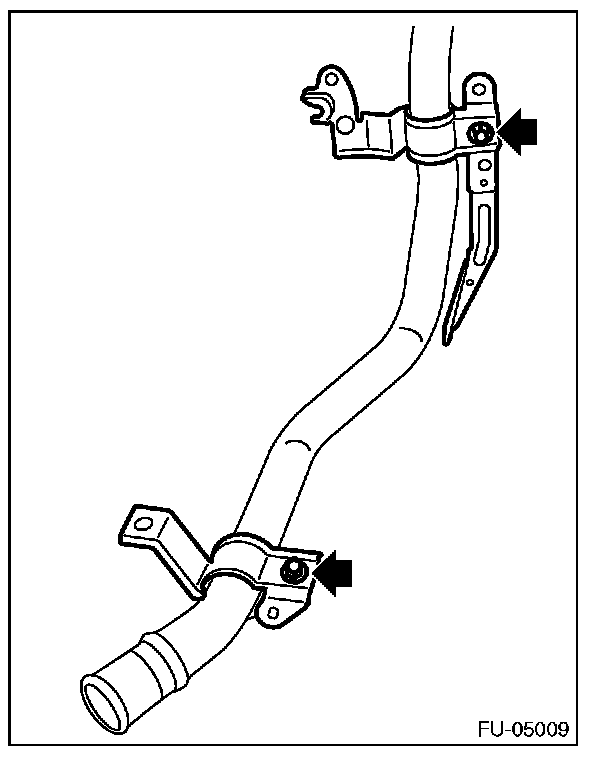

3. Remove the fuel filler pipe bracket from the fuel filler pipe.






ASSEMBLY

1. Temporarily tighten the bolts securing the fuel filler pipe bracket to the fuel filler pipe.






2. Install the evaporation pipe to the fuel filler pipe.

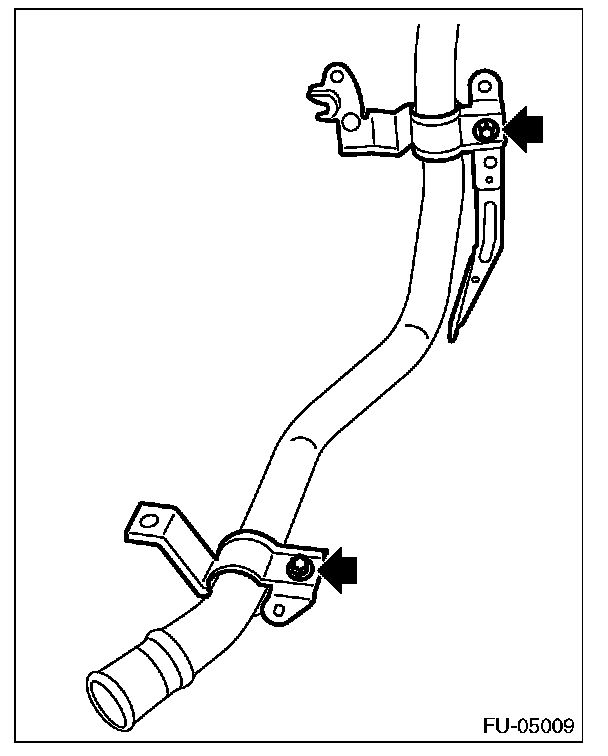

3. Tighten the bolts securing the fuel filler pipe bracket to the fuel filler pipe.






4. Install the shut valve to the fuel filler pipe.
