Positive Crankcase Ventilation Valve: Service and Repair

PCV Valve

REMOVAL

1. Remove the collector cover.
2. Remove the intercooler.

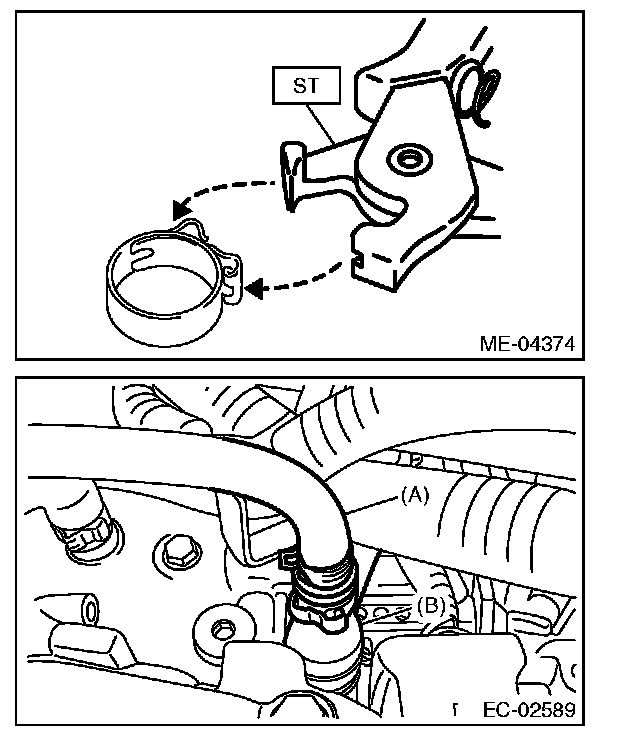

3. Disconnect the vacuum hose (A) and vacuum hose (B) from the PCV valve and remove the PCV valve.

NOTE: Pinch the clamp of the vacuum hose (B) by fitting the cut out in the ST with the protrusion on the clamp as shown in the figure, and unlock the clamp.

ST 18353AA000 CLAMP PLIERS






INSTALLATION

1. Connect the vacuum hose (A) and vacuum hose (B) to the PCV valve.

NOTE: Use a new clamp for the vacuum hose (B), fit the cut out in the ST with the protrusion on the clamp as shown in the figure, and lock the clamp.

ST 18353AA000 CLAMP PLIERS






2. Install the intercooler.
3. Install the collector cover.
