Leak Detection Solenoid: Testing and Inspection
Pressure Control Solenoid ValveINSPECTION
1. PRESSURE CONTROL SOLENOID VALVE
1. Check that the pressure control solenoid valve does not have deformation, cracks or other damages.

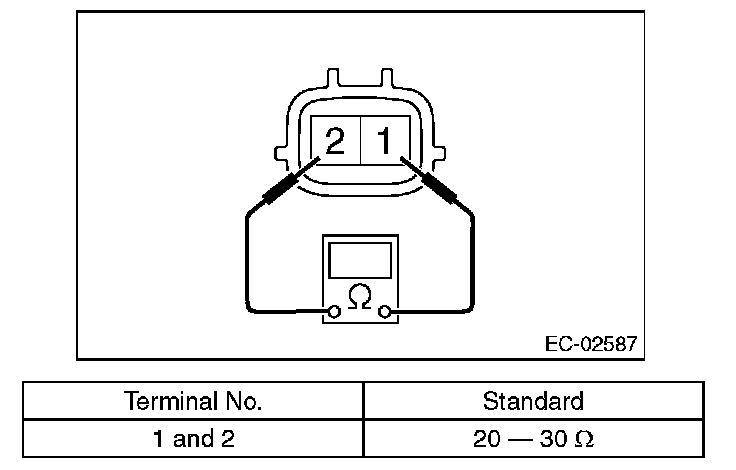

2. Measure the resistance between pressure control solenoid valve terminals.
2. OTHER INSPECTIONS
Check that the evaporation hose has no cracks, damage or loose part.
