Canister Purge Solenoid: Testing and Inspection
Purge Control Solenoid ValveINSPECTION
1. PURGE CONTROL SOLENOID VALVE
1. Check that the purge control solenoid valve has no deformation, cracks or other damages.
2. Measure the resistance between the purge control solenoid valve terminals.

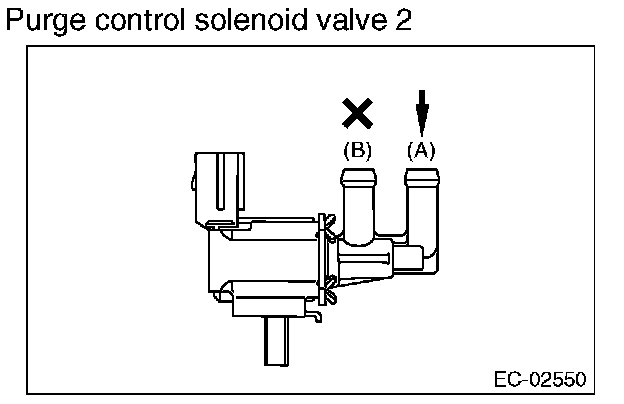

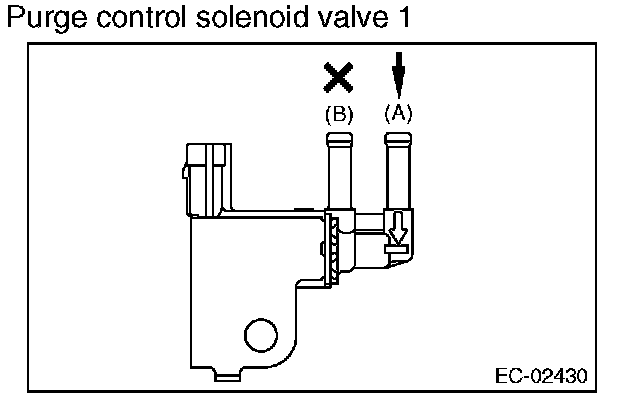

3. Check that air does not come out from (B) when air is blown into (A).

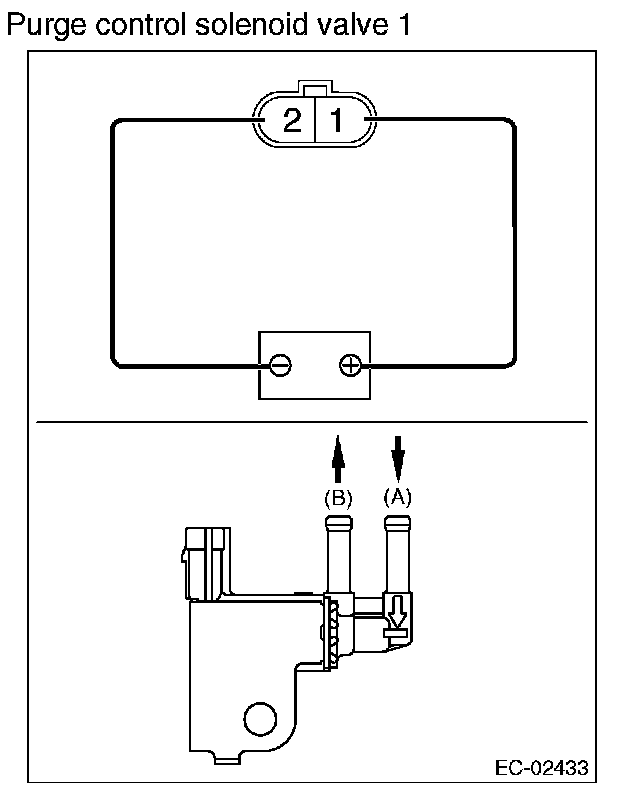

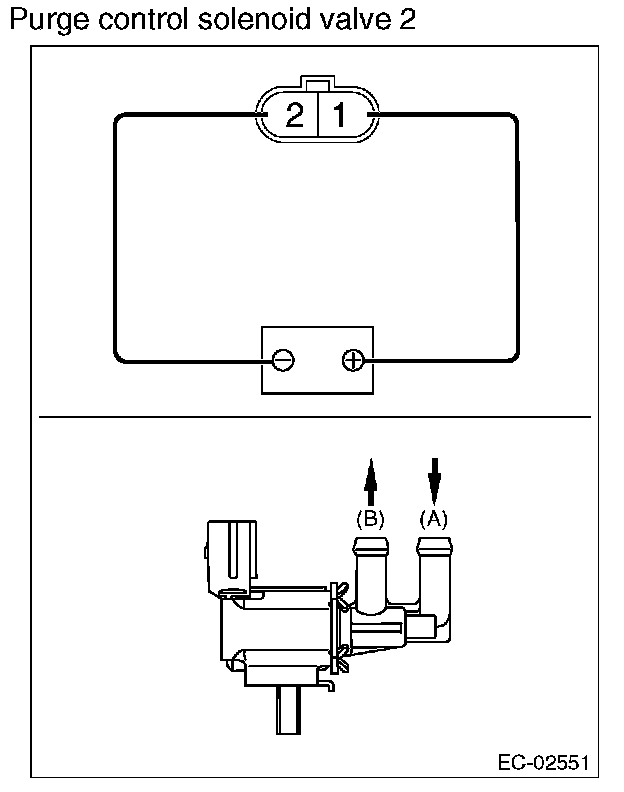

4. With terminal No. 1 connected to the battery positive terminal and terminal No. 2 to the battery ground terminal, check that air comes out from (B) when air is blown into (A).
2. OTHER INSPECTIONS
Check that the evaporation hose has no cracks, damage or loose part.
