Subaru Select Monitor

Subaru Select Monitor

OPERATION

1. HOW TO USE THE SUBARU SELECT MONITOR

NOTE: For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".

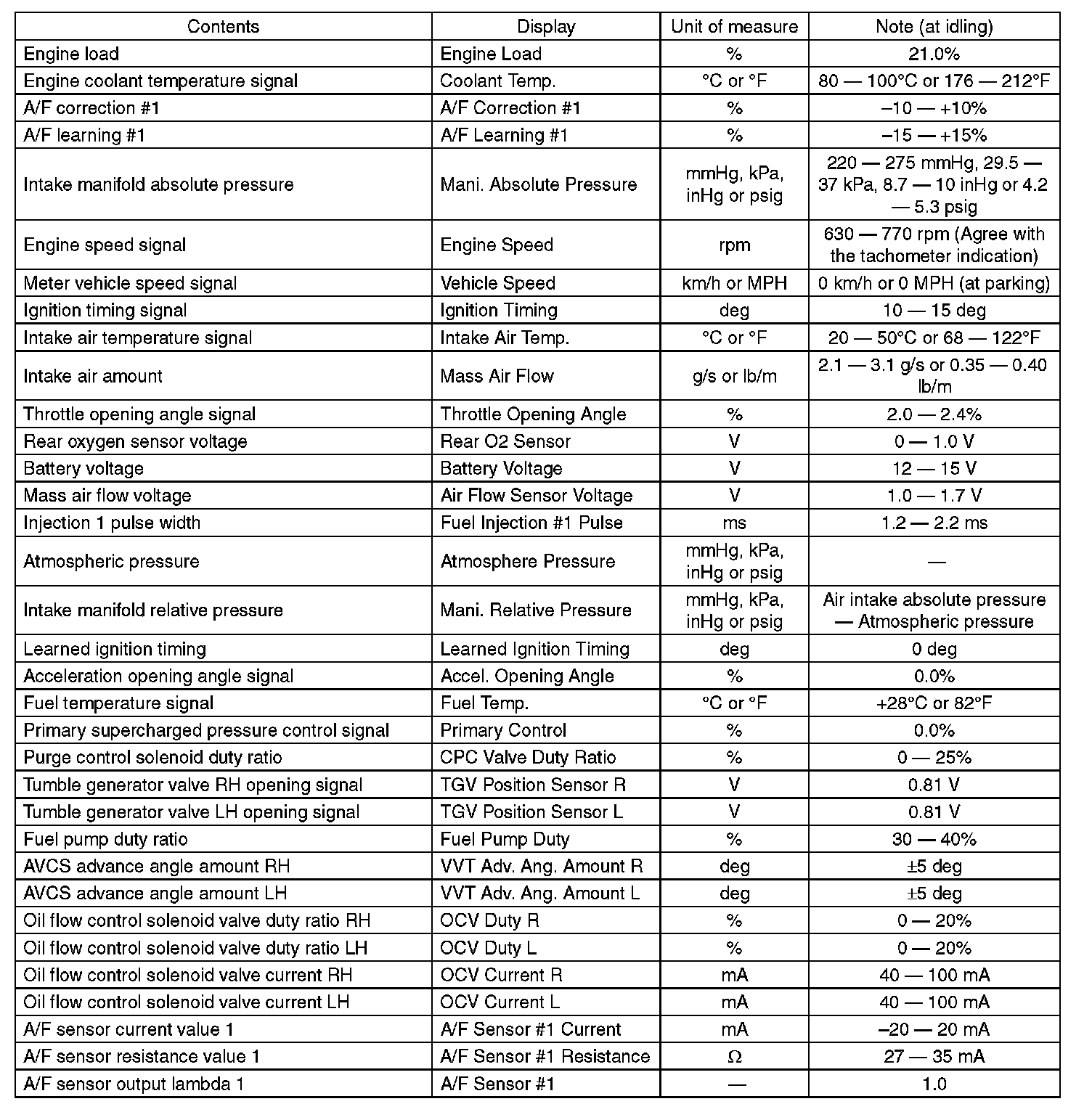

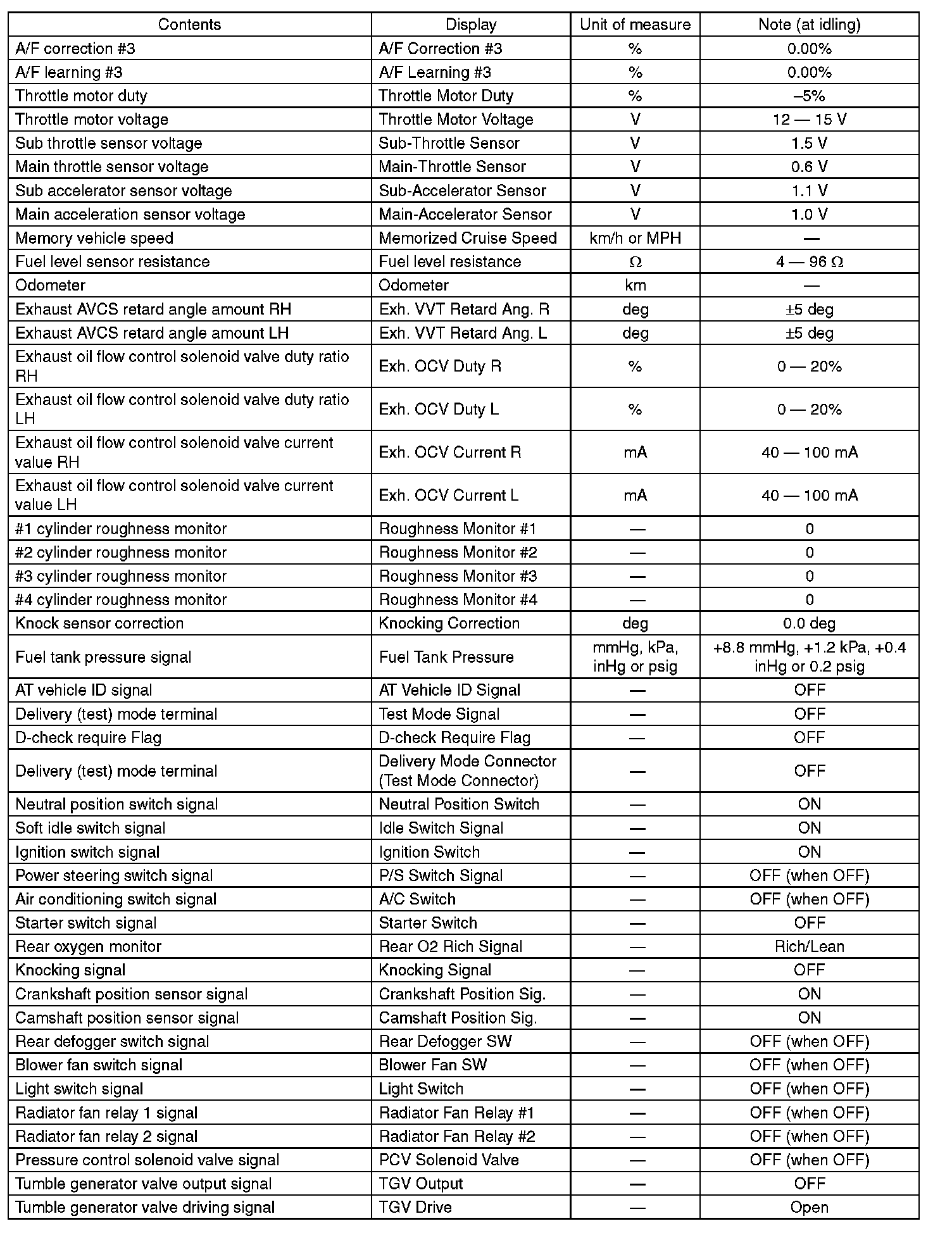

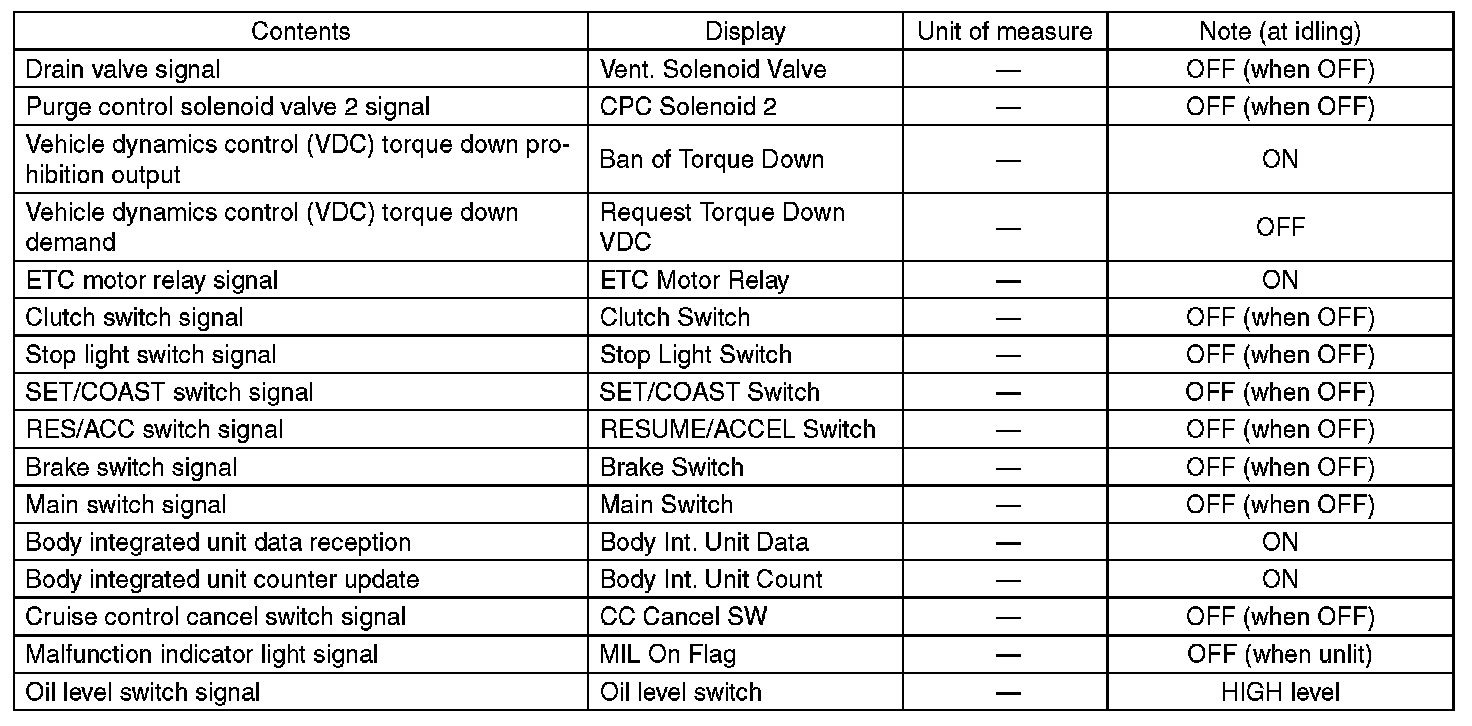

2. READ CURRENT DATA FOR ENGINE (NORMAL MODE)

NOTE:
- For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".
- A list of the support data is shown in the following table.

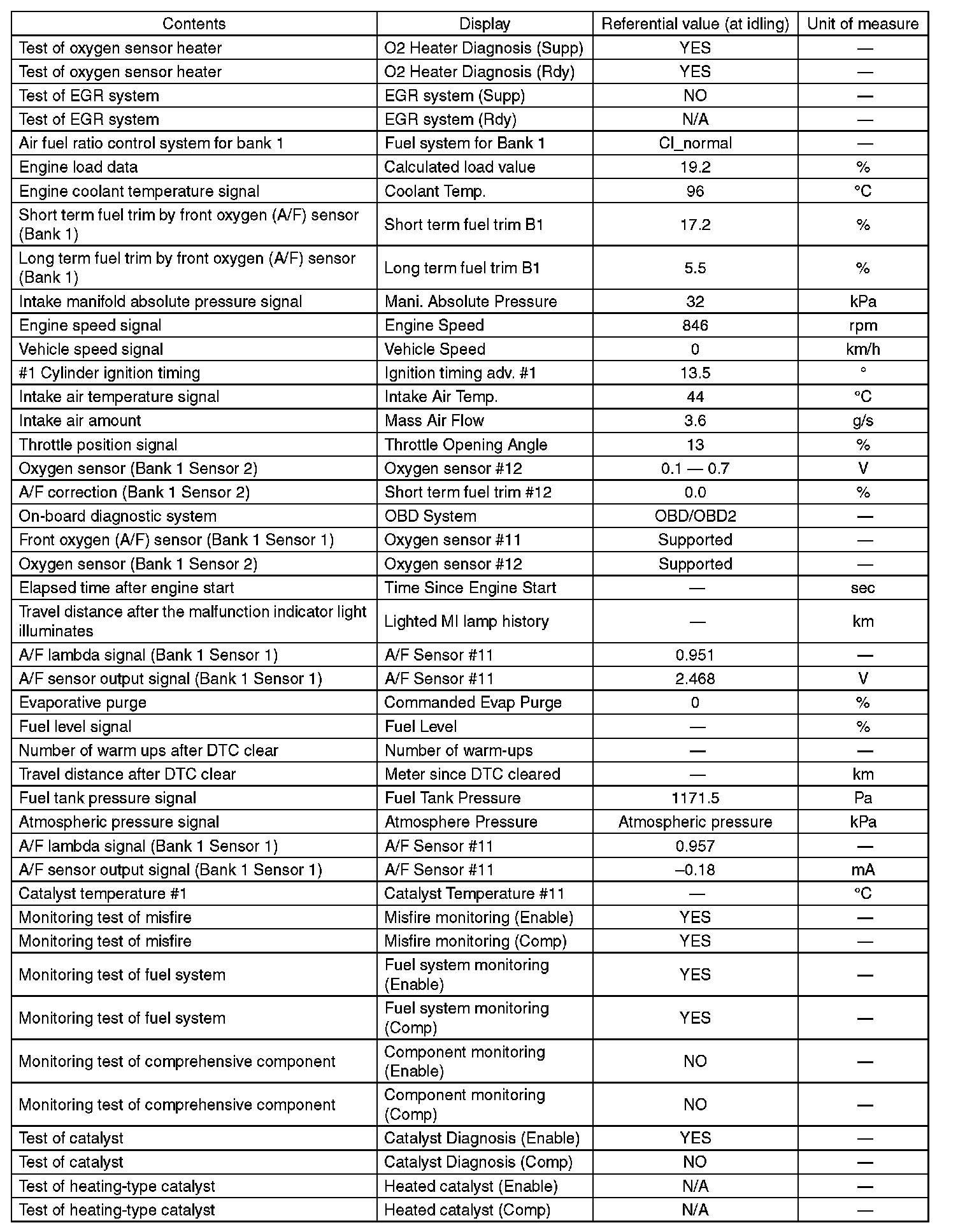

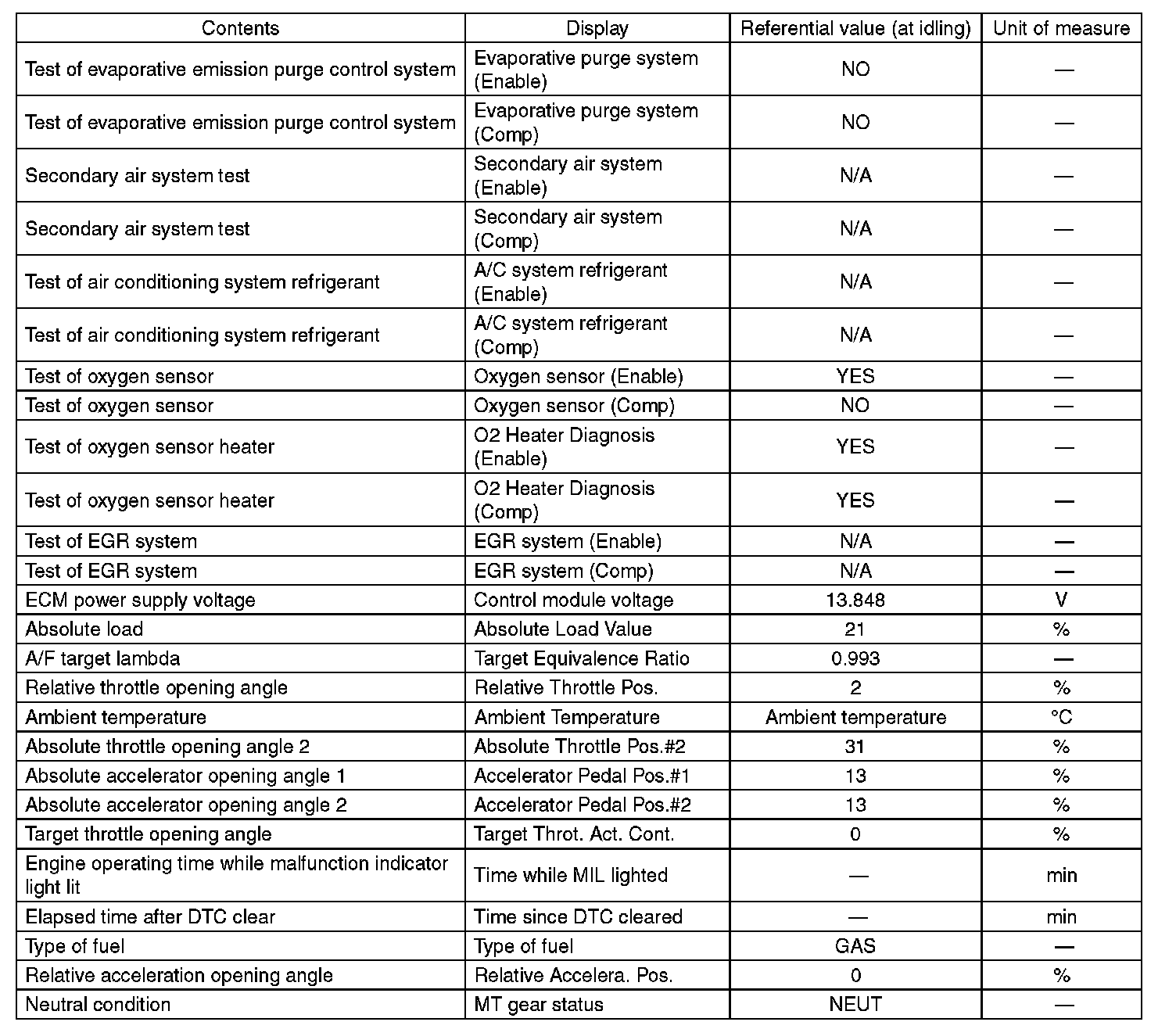

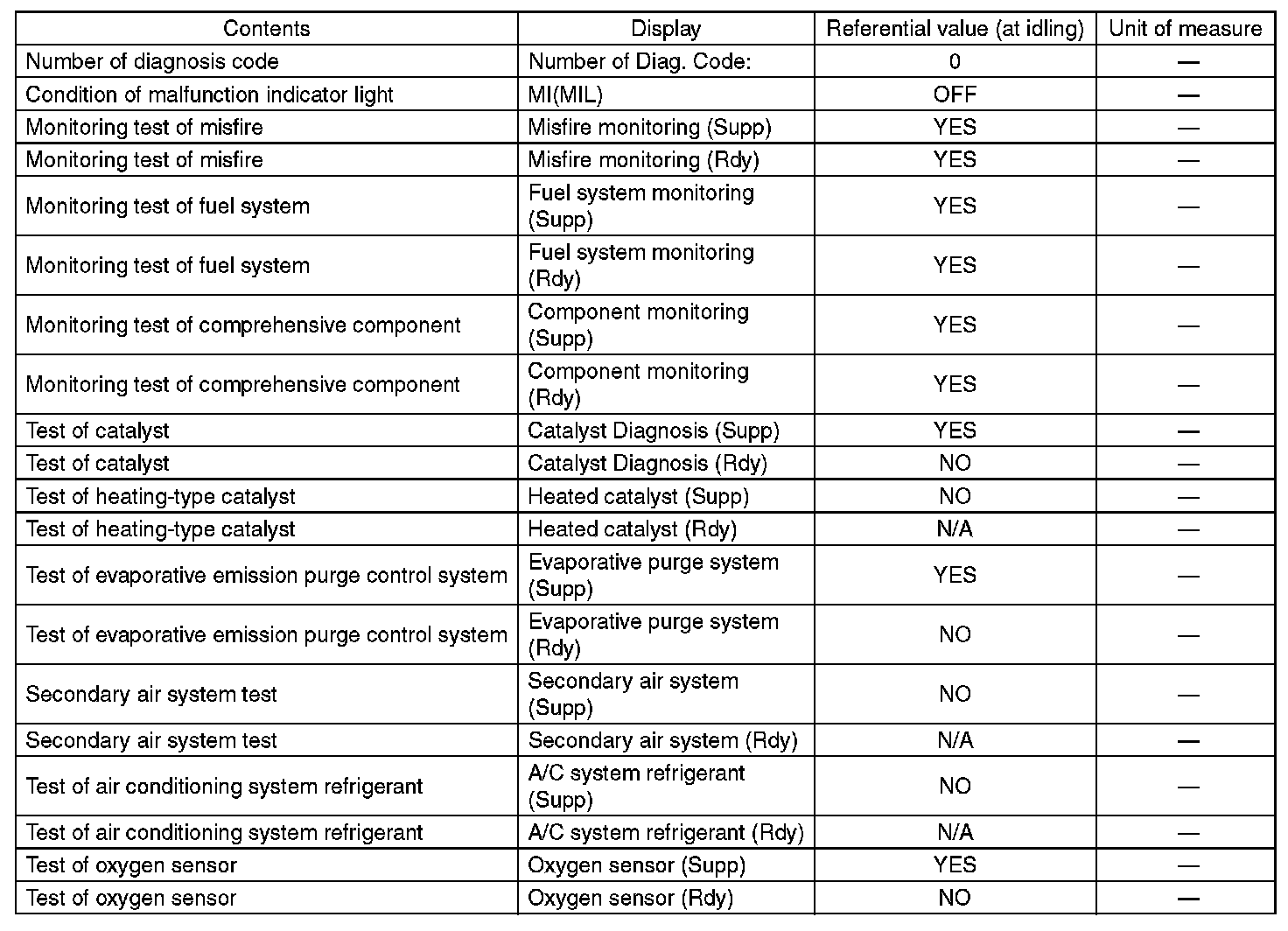

3. READ CURRENT DATA FOR ENGINE (OBD MODE)

NOTE:
- For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".
- A list of the support data is shown in the following table.

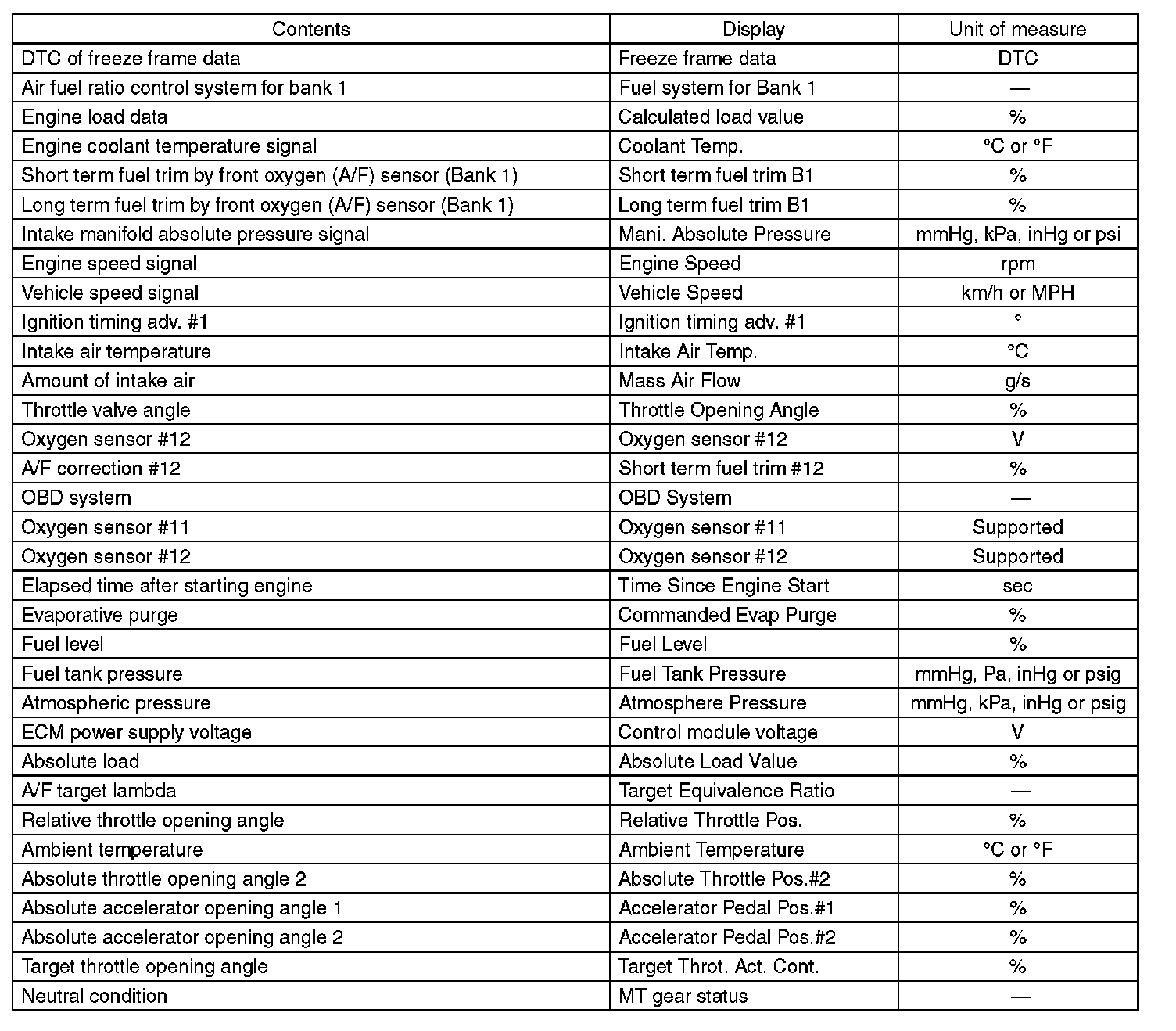

4. READ FREEZE FRAME DATA FOR ENGINE (OBD MODE)

NOTE:
- For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".
- A list of the support data is shown in the following table.






5. V.I.N. REGISTRATION
1. On [[Main Menu]] display, select {Each System Check}.
2. On [[System Selection Menu]] display, select {Engine Control System}.
3. Click the [OK] button after the information of engine type has been displayed.
4. On [[Engine Diagnosis]] display, select {Entry VIN}.
5. Perform the procedures shown on the display screen.
