Engine

Electrical Component Location

CONTROL MODULE

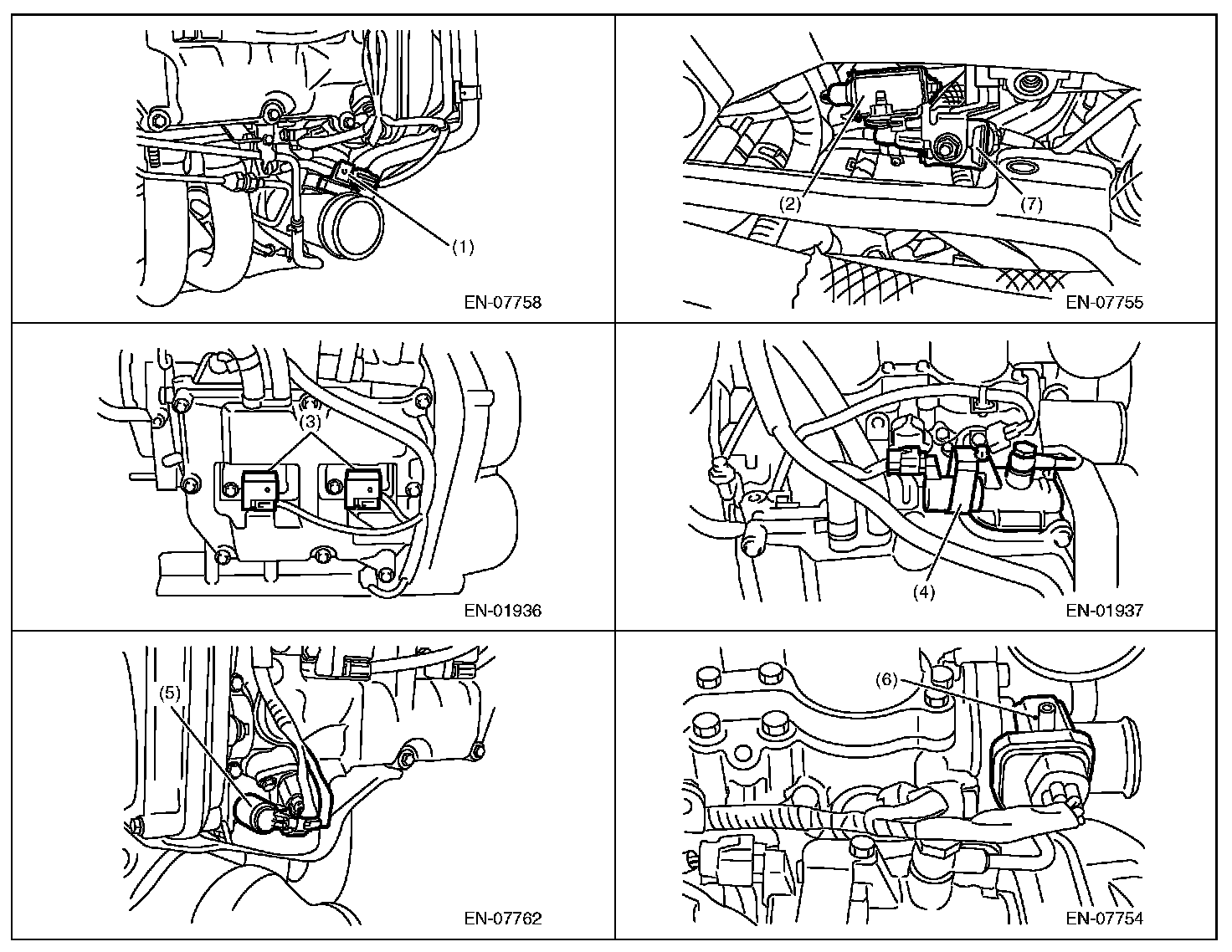

SENSOR

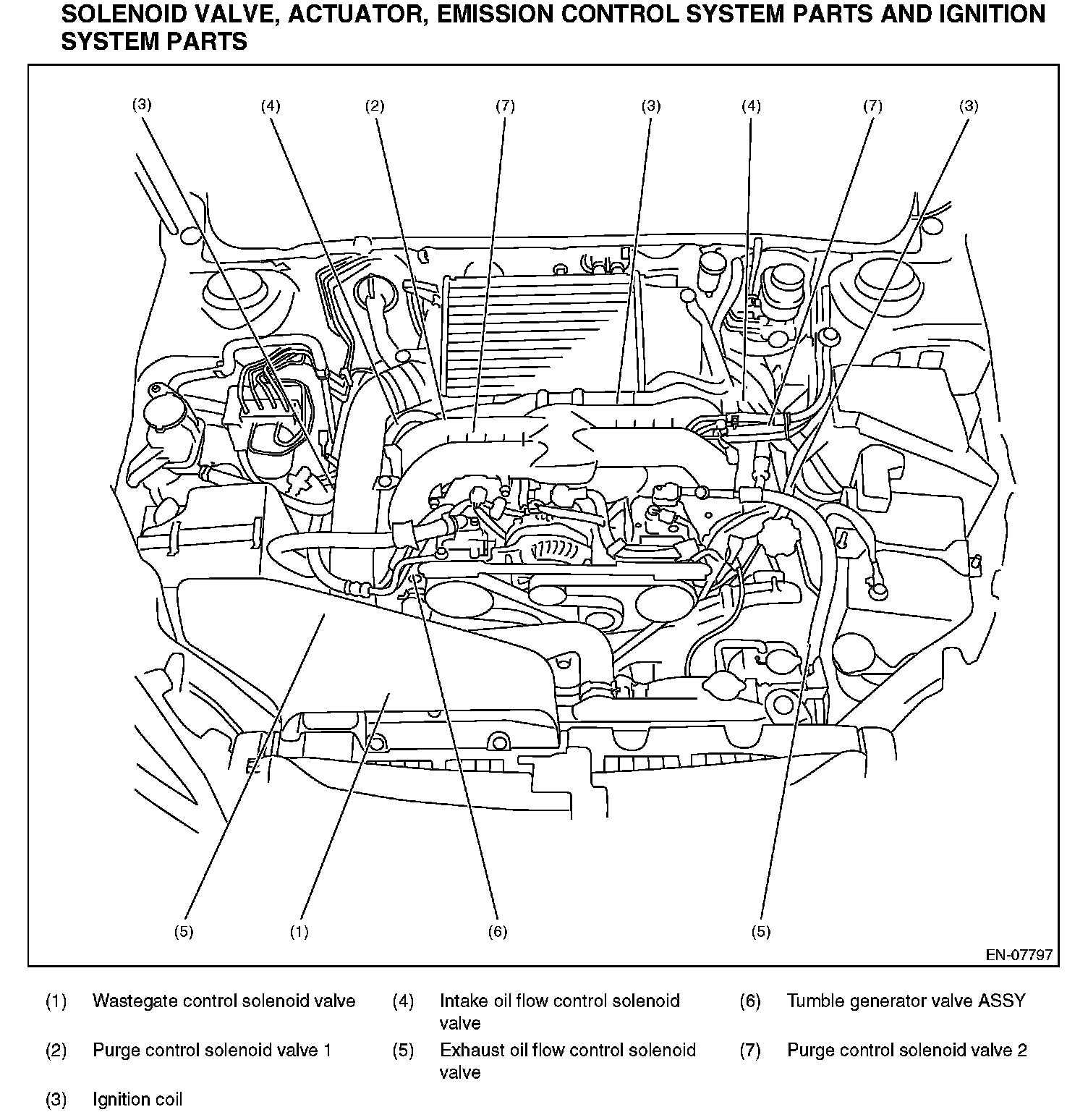

SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS















TRANSMISSION
