Home >> Subaru >> 2010 >> Legacy F4-2.5L DOHC Turbo >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Check Engine Control Module (ECM)

Check Engine Control Module (ECM)

CHECK ENGINE CONTROL MODULE (ECM)

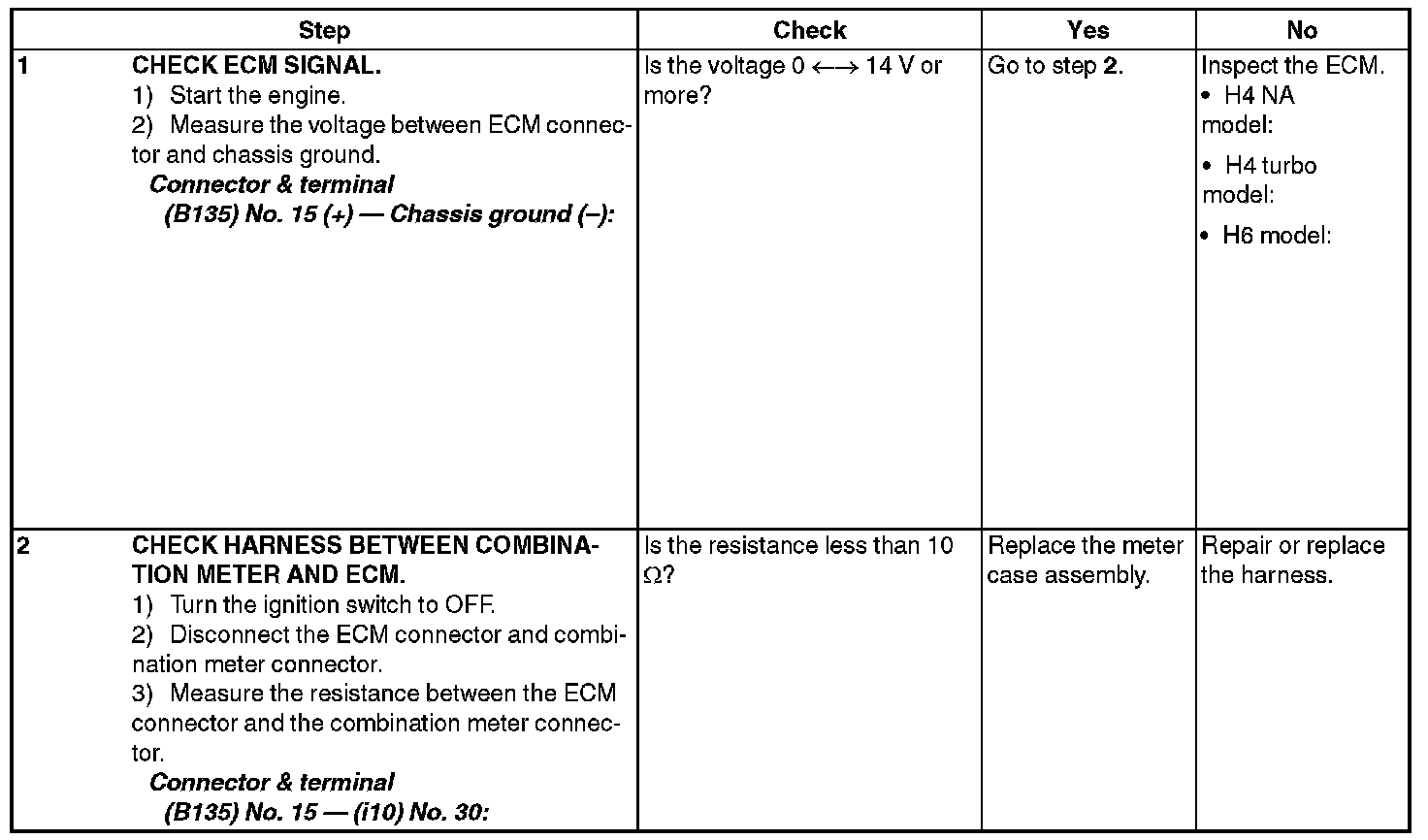

Step 1-2:
