Home >> Subaru >> 2010 >> Legacy F4-2.5L DOHC Turbo >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Clock >> Testing and Inspection >> Check Fuel Economy System Communication Circuit

Check Fuel Economy System Communication Circuit

CHECK FUEL ECONOMY SYSTEM COMMUNICATION CIRCUIT.

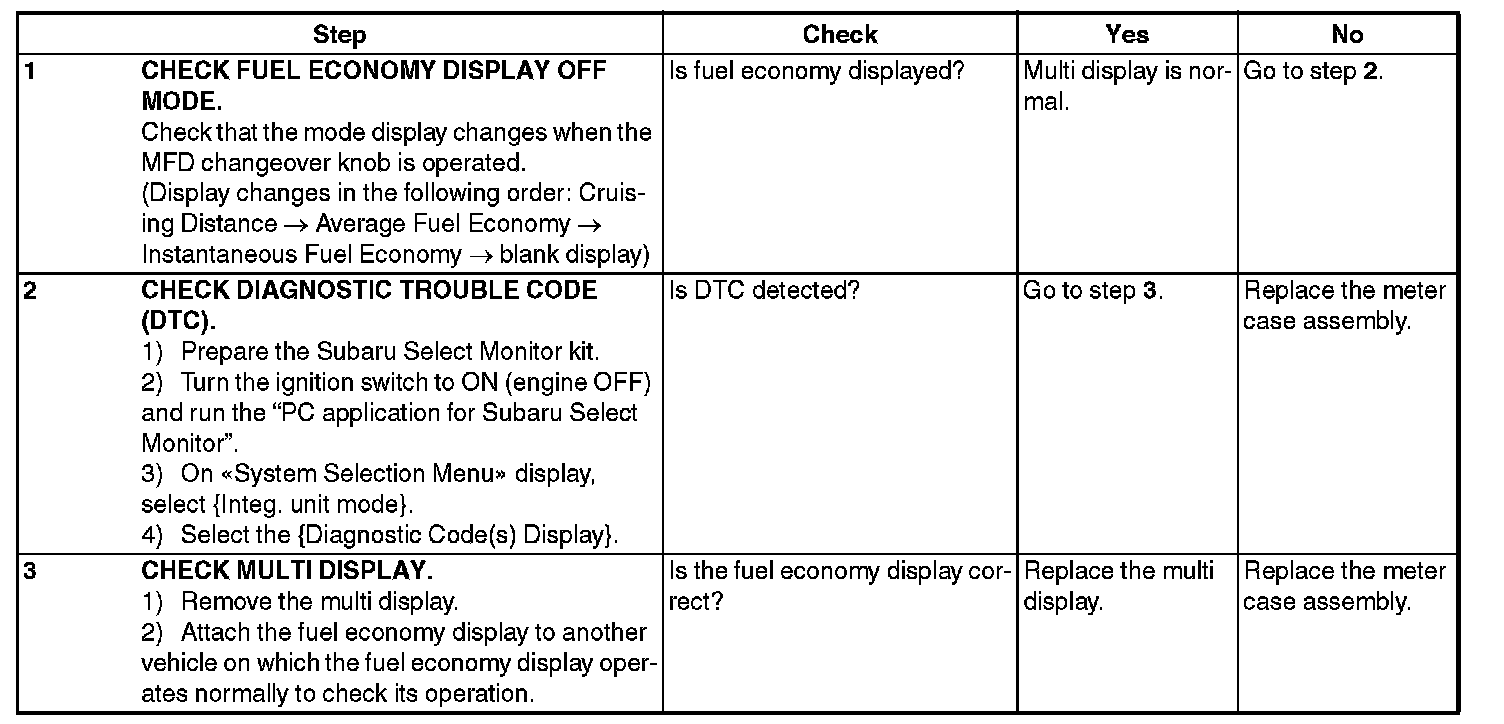

Step 1-3:
