Pinout Values and Diagnostic Parameters
Auto A/C Control Module I/O SignalELECTRICAL SPECIFICATION

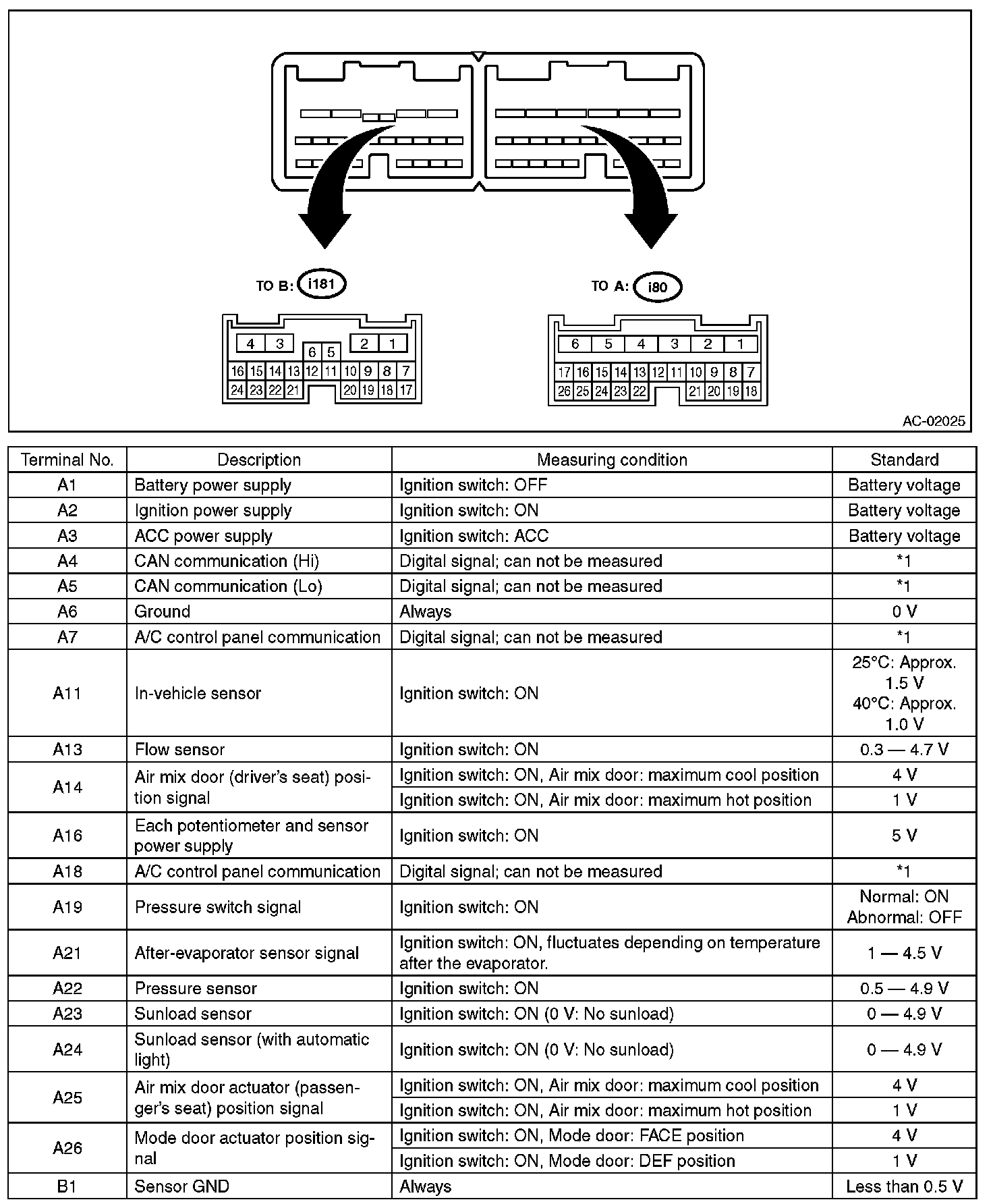

Auto A/C Control Module I/O Signal (Part 1):

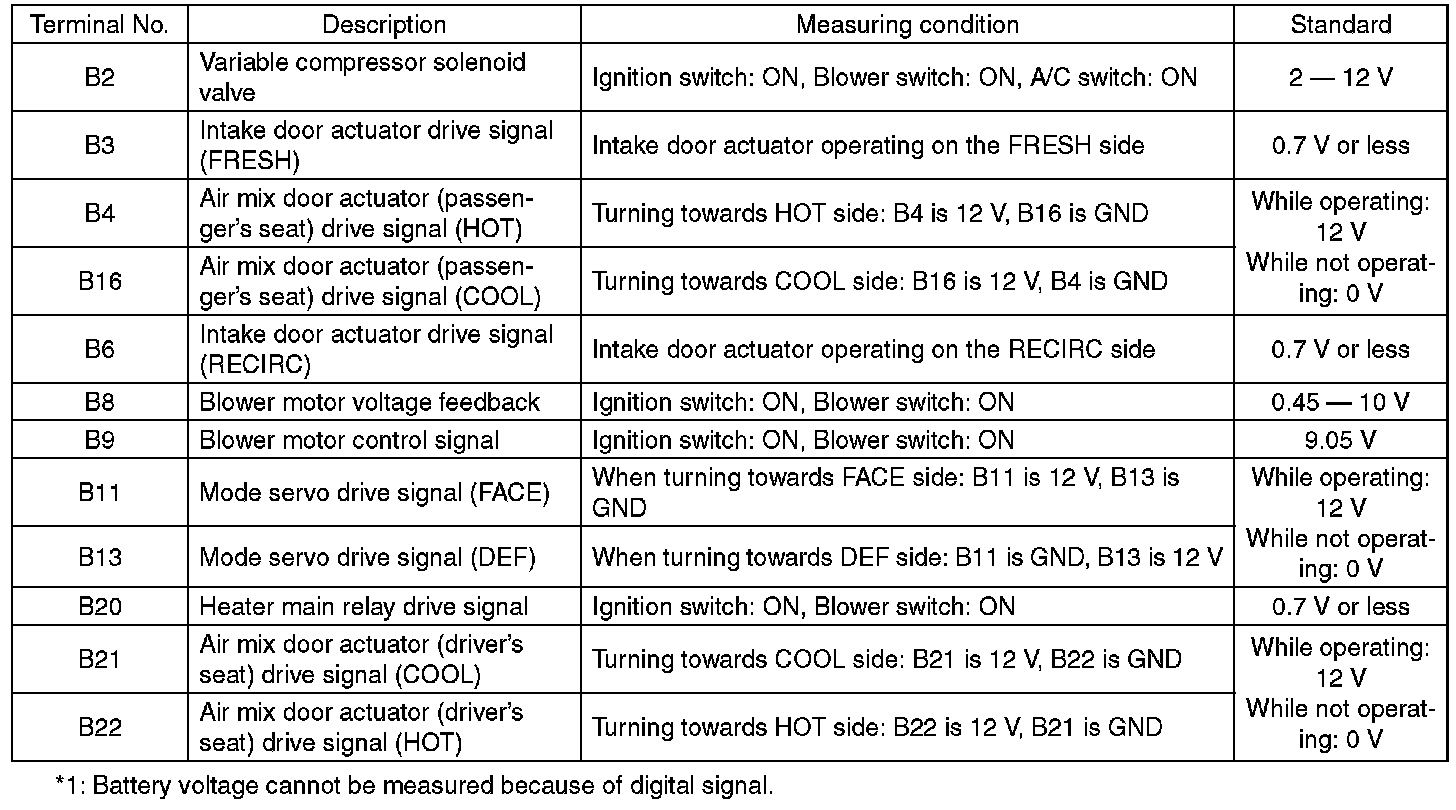

Auto A/C Control Module I/O Signal (Part 2):
WIRING DIAGRAM
AIR CONDITIONER A/C MODEL
Ref. to, WIRING DIAGRAM, Air Conditioning System. Electrical Diagrams
