Engine Lubrication: Testing and Inspection
Engine Lubrication
System Trouble in General
INSPECTION
Before performing diagnostics, make sure that the engine oil level is correct and no oil leakage exists.

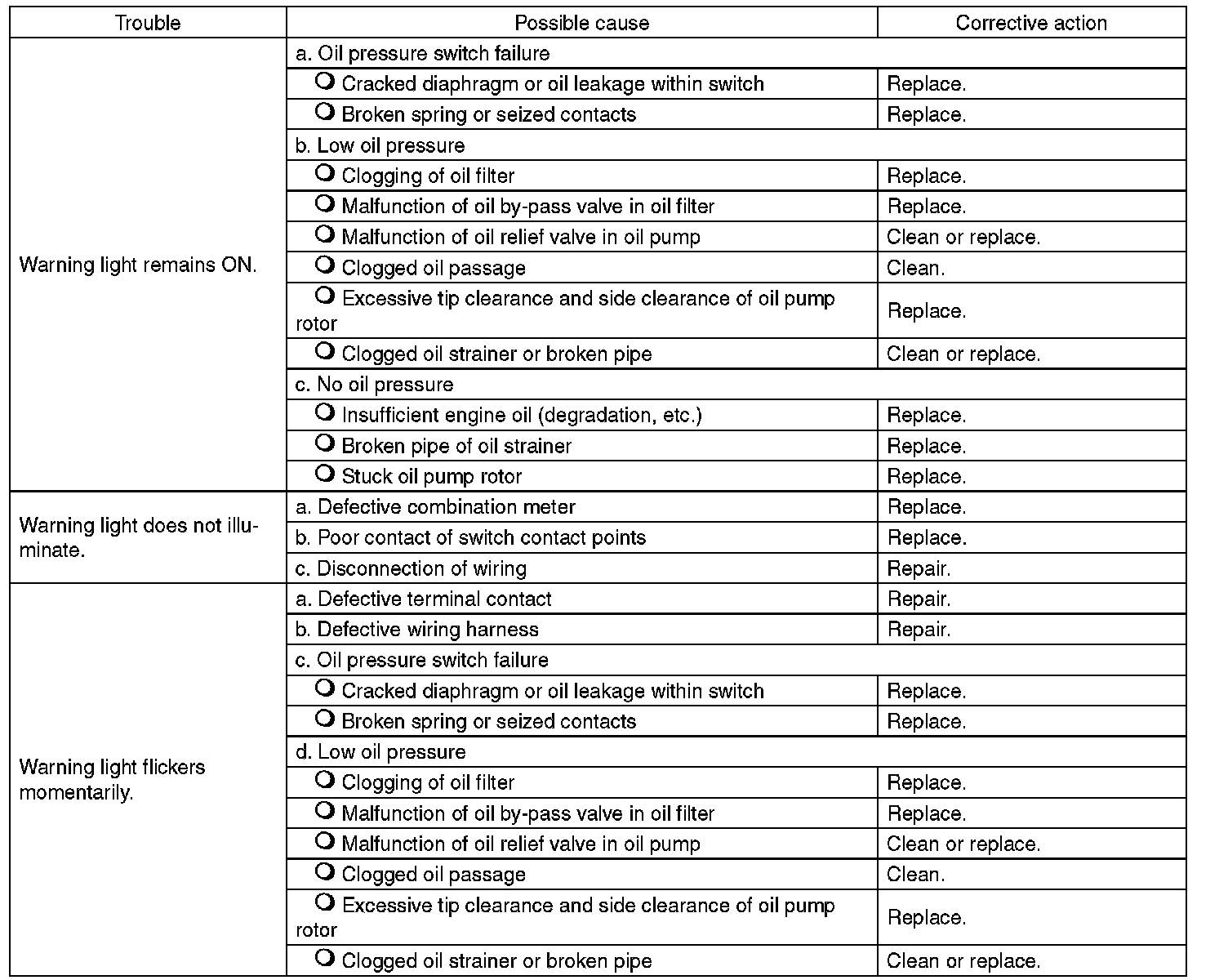

Engine Lubrication System Trouble in General:
